F15AEP (2001)
Bracket 1

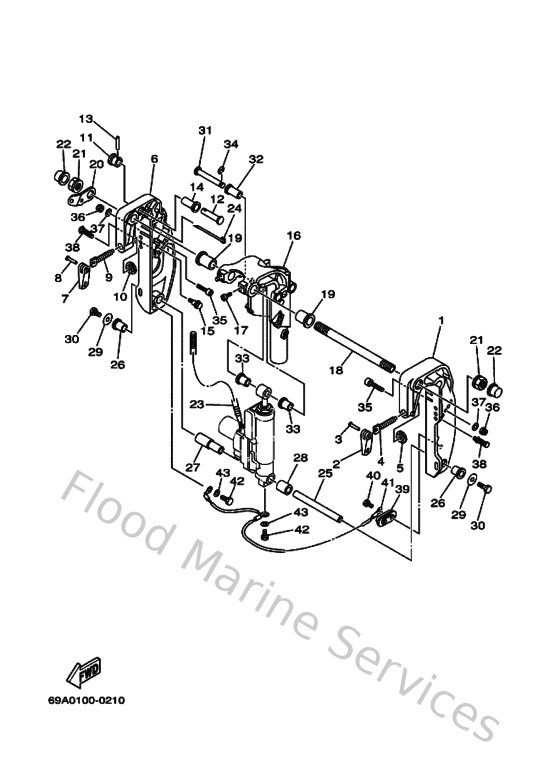

Diagram: Bracket 1
Parts List
Reference
Description
Price
1
69A43111004D
Bracket, clamp 1
Loading…
↗
2
6E0431180100
Handle, transom clamp
Loading…
↗
3
9024304M0100
Pin(6a1)
Loading…
↗
4
9014914M0300
Screw(6j8)
Loading…
↗
5
648431140100
Pad, transom clamp
Loading…
↗
6
69A43112004D
Bracket, clamp 2
Loading…
↗
11
65W431920000
Knob, stopper
Loading…
↗
12
65W431910000
Shaft, stopper
Loading…
↗
13
916903001800
926-51502-00 pin, spring (700)
Loading…
↗
14
9038614MA100
Bush
Loading…
↗
15
9010906MA100
Bolt
Loading…
↗
16
69A43311004D
Bracket, Swivel 1
Loading…
↗
17
978850801000
Rivet
Loading…
↗
18
69A431310000
Bolt, clamp bracket
Loading…
↗
19
9038622MA400
Bush
Loading…
↗
20
69A431130000
Plate, clamp bracket
Loading…
↗
21
63V431450000
Nut, self-locking
Loading…
↗
22
6G5431450000
Cap, clamp bracket
Loading…
↗
23
9044614MH700
Hose
Loading…
↗
24
9046513M9700
Clamp
Loading…
↗
25
69A438180000
Pin, lower shock mount
Loading…
↗
26
9038616MA700
Bush
Loading…
↗
27
9038616MA800
Bush
Loading…
↗
28
9038716M0200
Collar
Loading…
↗
29
9020108M0000
Washer, plate(6e0)
Loading…
↗
30
970800801600
Bolt
Loading…
↗
31
9024912M3600
Pin
Loading…
↗
32
9038112M1000
Bush, solid
Loading…
↗
33
9038112M1100
Bush, solid
Loading…
↗
34
9343010M0000
Circlip
Loading…
↗
35
9011008M0500
Bolt, hexagon socket head
Loading…
↗
36
901850805700
Nut, nylon (6j8)
Loading…
↗
37
929900860000
Washer, plain (663)
Loading…
↗
38
9033808M1900
Plug
Loading…
↗
39
65W452510000
Anode
Loading…
↗
40
901010602000
Bolt
Loading…
↗
41
63V821270000
Wire, lead 2
Loading…
↗
42
970950601000
Bolt
Loading…
↗
43
929950660000
Washer, plain (646)
Loading…
↗
