F20AM (1998)
Bracket 1

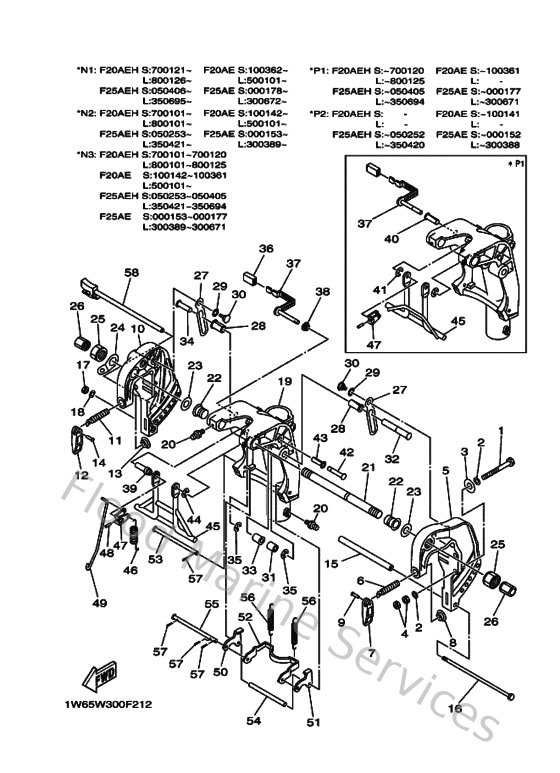

Diagram: Bracket 1
Parts List
Reference
Description
Price
1
9010110M5800
Bolt
Loading…
↗
2
929951060000
Washer, plate
Loading…
↗
3
902011242600
Washe, plate(663)
Loading…
↗
4
953801060000
Nut(624)
Loading…
↗
5
65W43111004D
Bracket, clamp
Loading…
↗
6
9014914M1200
Screw(6h4)
Loading…
↗
7
66343118014D
Handle, transom clamp
Loading…
↗
8
648431140100
Pad, transom clamp
Loading…
↗
9
902430400700
Pin (663)
Loading…
↗
10
65W43112014D
Bracket, Clamp 2
Loading…
↗
12
66343118018D
Handle, transom clamp
Loading…
↗
15
903871010800
Collar
Loading…
↗
16
9010108M7600
Bolt
Loading…
↗
17
953800860000
Nut (661)
Loading…
↗
18
929900810000
Ybs67-8 washer, spring
Loading…
↗
19
65W43311118D
Bracket, swivel 1
Loading…
↗
20
9370006M0300
Nipple, grease(6a1)
Loading…
↗
21
63D431310000
Bolt, clamp bracket
Loading…
↗
22
9038622M1500
Bushing (688)
Loading…
↗
23
9020122M0300
Washer, plate(64j)
Loading…
↗
24
6J8431130100
Plate, clamp bracket
Loading…
↗
25
63V431450000
Nut, self-locking
Loading…
↗
26
6G5431450000
Cap, clamp bracket
Loading…
↗
27
65W436270100
Stopper
Loading…
↗
28
9038612M9800
Bush
Loading…
↗
29
9020614M2300
Washer, Wave
Loading…
↗
30
9010908M8700
Bolt
Loading…
↗
31
9038712M0400
Collar
Loading…
↗
32
9024912M3400
Pin
Loading…
↗
33
9038612MA000
Bush, solid
Loading…
↗
35
990801060000
Circlip
Loading…
↗
36
663433180000
Cover
Loading…
↗
37
65W436301000
Tilt Lever Assembly
Loading…
↗
38
9038607MA200
Bush
Loading…
↗
39
903870704900
Collar
Loading…
↗
40
9038610M9900
Bush
Loading…
↗
41
990800860000
Circlip
Loading…
↗
42
9024910M3100
Pin
Loading…
↗
45
66T433500100
Receiver assembly
Loading…
↗
46
9050620M3600
Spring, tension
Loading…
↗
47
66T436311000
Lever, Tilt
Loading…
↗
48
916903001600
Pin, spring
Loading…
↗
49
65W436160000
Rod, tilt lock
Loading…
↗
50
65W436140000
Plate, Tilt Lock
Loading…
↗
51
65W436150000
Plate, Tilt Lock
Loading…
↗
52
65W436130000
Arm, tilt lock
Loading…
↗
53
9024907M3200
Pin
Loading…
↗
54
9038707M2900
Collar
Loading…
↗
55
9024907M3300
Pin
Loading…
↗
56
9050630M0000
Spring, tension (676)
Loading…
↗
57
914902001500
Pin, cotter (648)
Loading…
↗
58
65W431600000
Tilt rod assembly
Loading…
↗
