F30AMS (2001)
Bracket 1

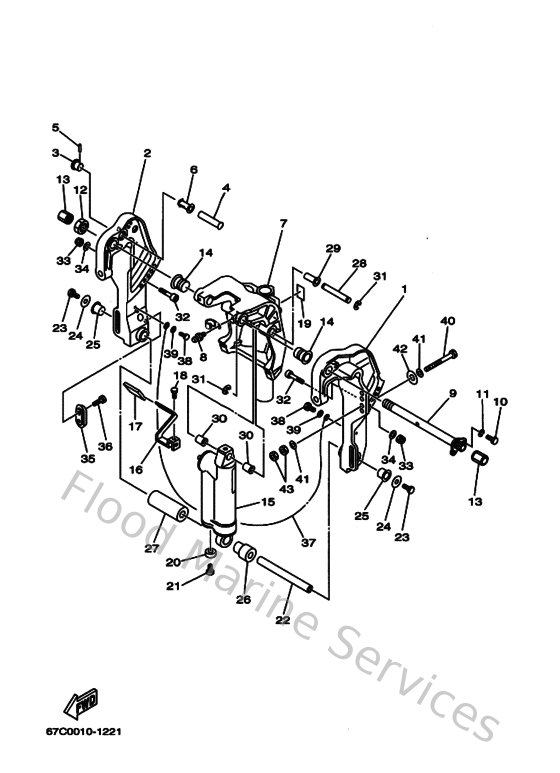

Diagram: Bracket 1
Parts List
Reference
Description
Price
1
67C43111104D
Bracket, clamp 1
Loading…
↗
2
67C43112104D
Bracket, clamp 2
Loading…
↗
3
65W431920000
Knob, stopper
Loading…
↗
4
65W431910000
Shaft, stopper
Loading…
↗
5
916903001800
926-51502-00 pin, spring (700)
Loading…
↗
6
9038614MA100
Bush
Loading…
↗
7
67C43311108D
Bracket, swivel 1
Loading…
↗
8
9370006M0300
Nipple, grease(6a1)
Loading…
↗
9
6K9431310100
Bolt, clamp bracket
Loading…
↗
10
970950802000
Bolt, hexagon
Loading…
↗
11
929900810000
Ybs67-8 washer, spring
Loading…
↗
12
9018522M1100
Nut, self-locking
Loading…
↗
13
6G5431450000
Cap, clamp bracket
Loading…
↗
14
9038622MA400
Bush
Loading…
↗
15
67C43107114D
Shock absorber sub-assembly
Loading…
↗
16
67C436310000
Lever, tilt
Loading…
↗
17
682433180100
Cover
Loading…
↗
18
970950601000
Bolt
Loading…
↗
19
63D436910000
Indicator, tilt
Loading…
↗
20
663452510000
Anode
Loading…
↗
21
986800652500
Screw flat head
Loading…
↗
22
9024918M3500
Pin, lower shock mount
Loading…
↗
23
970800801600
Bolt
Loading…
↗
24
9020108M0000
Washer, plate(6e0)
Loading…
↗
25
9038618M4400
Bushing (6g5)
Loading…
↗
26
9038618MA500
Bush
Loading…
↗
27
9038718M0300
Collar
Loading…
↗
28
9024912M3800
Pin
Loading…
↗
29
9038112M1000
Bush, solid
Loading…
↗
30
9038112M1100
Bush, solid
Loading…
↗
31
9343010M0000
Circlip
Loading…
↗
32
9011010M0200
Bolt, hexagon socket head
Loading…
↗
33
9018510M1300
Nut, self-locking
Loading…
↗
34
929951060000
Washer, plate
Loading…
↗
35
65W452510000
Anode
Loading…
↗
36
901010602000
Bolt
Loading…
↗
37
67C821272000
Wire, lead 2
Loading…
↗
38
970800601400
Bolt(gj3)
Loading…
↗
39
929950660000
Washer, plain (646)
Loading…
↗
40
9010112M6500
Bolt
Loading…
↗
41
929951220000
Ybs66-12 washer,plain
Loading…
↗
42
902011242600
Washe, plate(663)
Loading…
↗
43
953801260000
Nut (707)
Loading…
↗
