F4AMH (1998)
Bracket 1

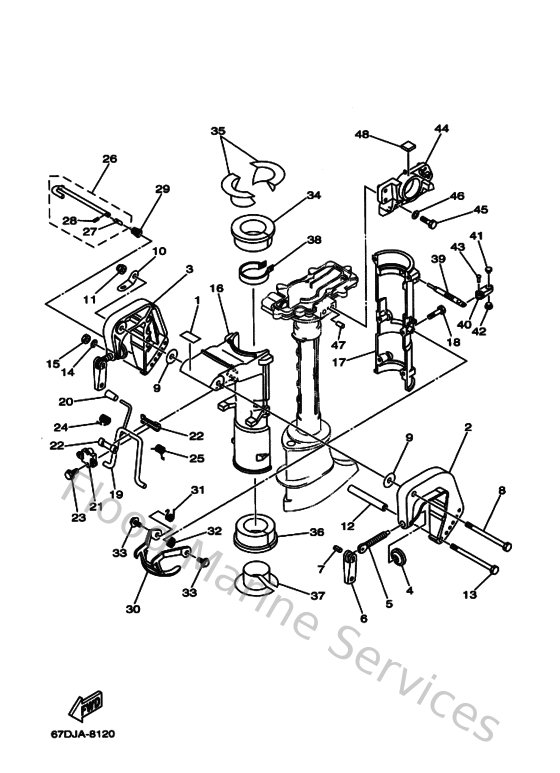

Diagram: Bracket 1
Parts List
Reference
Description
Price
1
67D245910100
Emblem, Fuel Cock
Loading…
↗
2
6E043111024D
Bracket, clamp 1
Loading…
↗
3
6E043112014D
Bracket, clamp 2
Loading…
↗
4
620431140000
Pad, transom clamp
Loading…
↗
5
6E0431160100
Screw, transom clamp
Loading…
↗
6
6EEG31180000
Handle, transom cl
Loading…
↗
7
9024304M0100
Pin(6a1)
Loading…
↗
8
9010108M0700
Bolt(6e0)
Loading…
↗
9
9020208M5800
Washer, plate
Loading…
↗
10
6A1431130100
Plate, clamp bracket
Loading…
↗
11
901850805700
Nut, nylon (6j8)
Loading…
↗
12
6EEG31220000
Collar
Loading…
↗
13
901010633500
Bolt, hexagon (624)
Loading…
↗
14
929900660000
Washer, plain (646)
Loading…
↗
15
953800660000
Nut(661)
Loading…
↗
16
67D43311004D
Bracket, swivel 1
Loading…
↗
17
6EEG3312008D
Bracket, swivel 2
Loading…
↗
18
958950603500
Bolt, flange(4nx)
Loading…
↗
19
6E0431810000
Lever, tilt stop 1
Loading…
↗
20
6E0436320000
Knob, tilt
Loading…
↗
21
6E0433130094
Bracket, swivel 3
Loading…
↗
22
620431890000
Bushing
Loading…
↗
23
958800602000
Bolt, flange(jk3)
Loading…
↗
24
905081602000
Spring 6474319800
Loading…
↗
25
905081602100
Spring 6474318800
Loading…
↗
26
6E0431600100
Tilt rod assembly
Loading…
↗
28
916903000800
Pin. spring(656)
Loading…
↗
29
9050208M0500
Spring, conical(6e0)
Loading…
↗
30
6E043614005B
Plate, tilt lock
Loading…
↗
31
9050814M1000
Spring, torsion (6e0)
Loading…
↗
32
9050814M1100
Spring, torsion (6e0)
Loading…
↗
33
958950601000
Bolt, flange(7ht)
Loading…
↗
34
6EEG25370000
Bushing, pivot sha
Loading…
↗
35
67D425390000
Bushing, pivot sha
Loading…
↗
36
68DG25380000
Bush Pivot Shaft 2
Loading…
↗
37
68DG25490000
Bush, pivot shaft 4
Loading…
↗
38
6E0425280300
Plate, friction
Loading…
↗
39
6L5425290100
Screw, friction piece
Loading…
↗
40
6L5425610000
Knob, steering lock
Loading…
↗
41
6L5441960000
Indicator 3
Loading…
↗
42
6L5441970000
Indicator 4
Loading…
↗
43
9026604M0500
Rivet(6l5)
Loading…
↗
44
68DG2511004D
Bracket, Steering
Loading…
↗
45
970750803000
Bolt, hexagon (fj1)
Loading…
↗
46
929950860000
Washer, plain (663)
Loading…
↗
47
9360412M0700
Pin, dowel (688)
Loading…
↗
48
67D426620000
Damper
Loading…
↗
