F9.9BMH (1986)
Bracket 1

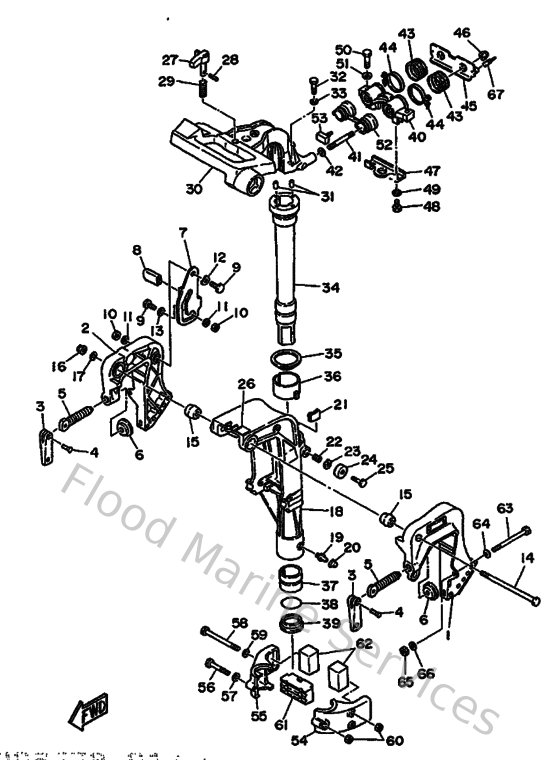

Diagram: Bracket 1
Parts List
Reference
Description
Price
3
6164311800EJ
Handle, transom clamp
Loading…
↗
4
902430400100
Pin(6a9)
Loading…
↗
5
901491403000
Screw, transom clamp
Loading…
↗
6
648431140100
Pad, transom clamp
Loading…
↗
7
6G8431810000
Lever, tilt stop 1
Loading…
↗
8
682433180100
Cover
Loading…
↗
9
9010906M2500
Bolt (6g8)
Loading…
↗
10
956800610000
U-nut (6a5)
Loading…
↗
11
929900660000
Washer, plain (646)
Loading…
↗
12
9020610M1500
Washer, wave (6e7)
Loading…
↗
13
682433390100
Washer
Loading…
↗
15
6G1431360000
Piece, friction
Loading…
↗
16
901850805700
Nut, nylon (6j8)
Loading…
↗
17
929900810000
Ybs67-8 washer, spring
Loading…
↗
19
937000600400
Nipple, grease(6a1)
Loading…
↗
20
663451190000
Cap, grease nipple
Loading…
↗
21
6G8425280000
Plate, Friction
Loading…
↗
22
9050118M0000
Spring, compression (676)
Loading…
↗
23
9020106M3100
Washer (6a0)
Loading…
↗
24
6G8433730000
Seal rubber
Loading…
↗
25
973950602500
Bolt
Loading…
↗
27
6G8425610000
Knob, Steering Lock
Loading…
↗
28
916903001200
Pin, spring
Loading…
↗
29
905011007100
Spring 6044833200
Loading…
↗
31
936051506500
Pin, dowel
Loading…
↗
32
973950603000
Bolt(jf7)
Loading…
↗
34
6G9425210094
Shaft Steering Pivot
Loading…
↗
35
9020945M0900
Washer
Loading…
↗
36
6G8425370000
Bushing Pivot Shaft
Loading…
↗
37
9038637M4700
Bush
Loading…
↗
38
9321037M6700
O-ring (6g8)
Loading…
↗
39
9038637M4800
Bush
Loading…
↗
40
6G8445170094
Mount Rubber
Loading…
↗
41
9011608M2800
Bolt Stud
Loading…
↗
42
9020108M1200
Washer plate (682)
Loading…
↗
43
6G8445220000
Seal Rubber 2
Loading…
↗
44
9046038M0600
Clamp Hose (6G8)
Loading…
↗
45
6G8445180000
Bracket Comp
Loading…
↗
47
6G8445260000
Plate 1
Loading…
↗
48
973950601200
Bolt(gh1)
Loading…
↗
50
970800803000
Bolt, hexagon (fj1)
Loading…
↗
51
929900860000
Washer, plain (663)
Loading…
↗
52
6G8445210000
Seal Rubber
Loading…
↗
56
973950604500
Bolt, hexagon
Loading…
↗
58
973950609500
Bolt, hexagon deep recess
Loading…
↗
60
9538R0670000
Nut
Loading…
↗
61
6G8445570000
Mount Damper, Lower Front
Loading…
↗
62
682445550000
Mount damper, lower side
Loading…
↗
63
9010108M8800
Bolt (6g8)
Loading…
↗
66
9020108MA400
Washer, plate (6g8)
Loading…
↗
67
6G8445330000
Damper, Upper Mount Rubber
Loading…
↗
