F9.9BMH (1997)
Bracket 1

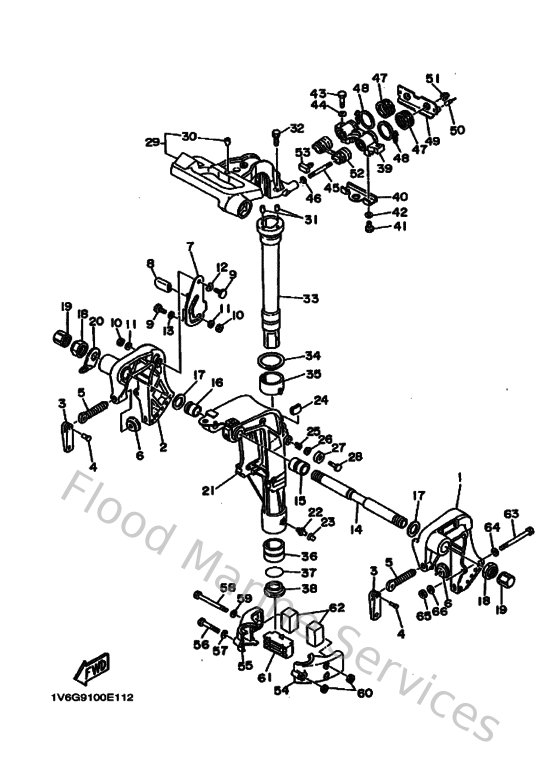

Diagram: Bracket 1
Parts List
Reference
Description
Price
1
6G843111044D
Bracket, Clamp 1
Loading…
↗
2
6G843112044D
Bracket, clamp 2
Loading…
↗
3
6E0431180100
Handle, transom clamp
Loading…
↗
4
9024304M0100
Pin(6a1)
Loading…
↗
5
9014914M0300
Screw(6j8)
Loading…
↗
6
648431140100
Pad, transom clamp
Loading…
↗
7
6G8431810000
Lever, tilt stop 1
Loading…
↗
8
682433180100
Cover
Loading…
↗
9
9010906M2500
Bolt (6g8)
Loading…
↗
10
956800610000
U-nut (6a5)
Loading…
↗
11
929900660000
Washer, plain (646)
Loading…
↗
12
9020610M1500
Washer, wave (6e7)
Loading…
↗
13
682433390100
Washer
Loading…
↗
15
9038622M9200
Bush(6j7)
Loading…
↗
16
9038622M9300
Bush(6j7)
Loading…
↗
17
9020122M0300
Washer, plate(64j)
Loading…
↗
18
9018522M1100
Nut, self-locking
Loading…
↗
19
6G5431450000
Cap, clamp bracket
Loading…
↗
20
6J8431130100
Plate, clamp bracket
Loading…
↗
22
9370006M0300
Nipple, grease(6a1)
Loading…
↗
23
663451190000
Cap, grease nipple
Loading…
↗
24
6G8425280000
Plate, Friction
Loading…
↗
25
9050118M0000
Spring, compression (676)
Loading…
↗
26
9020106M3100
Washer (6a0)
Loading…
↗
27
6G8433730000
Seal rubber
Loading…
↗
28
970950602500
Bolt
Loading…
↗
29
6G942511014D
Bracket, steering
Loading…
↗
30
6G8425340000
Pin, Dowel
Loading…
↗
31
936051506500
Pin, dowel
Loading…
↗
32
9011906M0600
Bolt, With Washer
Loading…
↗
33
6G9425210094
Shaft Steering Pivot
Loading…
↗
34
9020945M0900
Washer
Loading…
↗
35
6G8425370000
Bushing Pivot Shaft
Loading…
↗
36
9038637M4700
Bush
Loading…
↗
37
9321037M6700
O-ring (6g8)
Loading…
↗
38
9038637M4800
Bush
Loading…
↗
39
6G8445170094
Mount Rubber
Loading…
↗
40
6G8445260000
Plate 1
Loading…
↗
41
970950601200
Bolt(gh1)
Loading…
↗
43
970950803000
Bolt, hexagon (fj1)
Loading…
↗
44
929900860000
Washer, plain (663)
Loading…
↗
45
9011608M2800
Bolt Stud
Loading…
↗
46
9020108M1200
Washer plate (682)
Loading…
↗
47
6G8445220000
Seal Rubber 2
Loading…
↗
48
9046038M0600
Clamp Hose (6G8)
Loading…
↗
49
6G8445180000
Bracket Comp
Loading…
↗
50
6G8445330000
Damper, Upper Mount Rubber
Loading…
↗
51
957800830000
Nut, nylon (6j8)
Loading…
↗
53
6G8445320000
Stopper
Loading…
↗
54
6G844551014D
Housing, Lower Mount Rubber
Loading…
↗
55
6G844552024D
Housing, Lower Mount Rubber
Loading…
↗
56
970950604500
Bolt, hexagon
Loading…
↗
58
970950609500
Bolt, hexagon deep recess
Loading…
↗
60
953800670000
Nut
Loading…
↗
61
6G8445570000
Mount Damper, Lower Front
Loading…
↗
62
682445550000
Mount damper, lower side
Loading…
↗
63
9010108M8800
Bolt (6g8)
Loading…
↗
66
9020108MA400
Washer, plate (6g8)
Loading…
↗
