70BETO (1994)
Bracket 1 (SHORT)

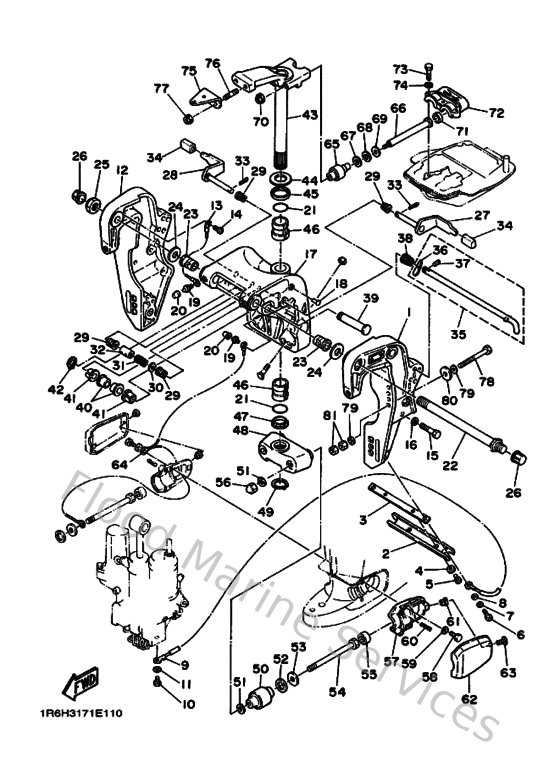

Diagram: Bracket 1 (SHORT)
Parts List
Reference
Description
Price
2
6H1452510200
Anode
Loading…
↗
3
6H1445260000
Plate 2
Loading…
↗
4
9020106M3100
Washer (6a0)
Loading…
↗
5
970800601200
Bolt(gh1)
Loading…
↗
6
973950601600
Bolt, hexagon deep recess
Loading…
↗
7
929900610000
Washer(6a1)
Loading…
↗
8
929900660000
Washer, plain (646)
Loading…
↗
9
6T4821170000
Wire, lead
Loading…
↗
10
973950601000
Bolt
Loading…
↗
13
6E5821480000
Wire, lead 5
Loading…
↗
14
978850601200
Screw, pan head(62j)
Loading…
↗
15
973951004500
Bolt(64d)
Loading…
↗
16
929901010000
Ybs67-10 washer, spring
Loading…
↗
18
902690301000
Rivet (663)
Loading…
↗
19
9370006M0300
Nipple, grease(6a1)
Loading…
↗
20
663451190000
Cap, grease nipple
Loading…
↗
21
9321029M9400
O-ring(6h1)
Loading…
↗
22
688431310300
Bolt, clamp bracket
Loading…
↗
23
9038622M1500
Bushing (688)
Loading…
↗
24
9020122M6700
Washer, plate (688)
Loading…
↗
25
901852204300
Nut, self-locking
Loading…
↗
26
6G5431450100
Cap, clamp bracket
Loading…
↗
27
688431810400
Lever, tilt stop 1
Loading…
↗
28
688431850400
Lever, tilt stop 2
Loading…
↗
29
9038610M1600
Bushing (688)
Loading…
↗
30
929901060000
Washer, plate
Loading…
↗
31
9050110M2100
Spring (688)
Loading…
↗
32
9038710M3800
Coller (6e5)
Loading…
↗
33
914903003000
Pin, cotter
Loading…
↗
34
663433180000
Cover
Loading…
↗
35
697431600000
Tilt lock ass'y
Loading…
↗
36
688431650000
Stopper, tilt rod
Loading…
↗
37
916903001200
Pin, spring
Loading…
↗
38
9050220M0300
Spring (6e5)
Loading…
↗
39
6E5431260200
Pin, upper shock mount
Loading…
↗
40
9038618M6300
Bush(6e5)
Loading…
↗
41
9038618M3500
Bush (688)
Loading…
↗
42
9341018M0200
Circlip (6f2)
Loading…
↗
43
6H34251002EK
Steering Bracket assembly
Loading…
↗
44
9020130M0000
Washer, plate(6h1)
Loading…
↗
45
9038630M7800
Bush(6h0)
Loading…
↗
46
9038630M7700
Bush(6h0)
Loading…
↗
47
9038630M6000
Bush(6j8)
Loading…
↗
49
9341028M0600
Circlip (688)
Loading…
↗
50
687445550094
Mount damper, lower side
Loading…
↗
51
9020112M1600
Washer, plate (679)
Loading…
↗
52
9020225M0400
Washer, plate (663)
Loading…
↗
53
9020113M1900
Washer, plate (663)
Loading…
↗
54
9010912M2100
Bolt (6h3)
Loading…
↗
55
663445750000
Damper, lower mount rubber
Loading…
↗
56
953801280000
Nut crown(663)
Loading…
↗
57
6H3445520300
Housing, lower mount rubber
Loading…
↗
58
973950802500
Bolt (62g)
Loading…
↗
59
929900810000
Ybs67-8 washer, spring
Loading…
↗
60
905011423600
Spring, compression(64j)
Loading…
↗
61
901790606600
Nut(663)
Loading…
↗
63
923900601500
Screw pan head
Loading…
↗
64
697821270100
Wire, lead 2
Loading…
↗
65
688445140094
Mount damper, upper side
Loading…
↗
66
901011004100
Bolt
Loading…
↗
67
9020120M2100
Washer, plate (688)
Loading…
↗
68
9020220M0600
Washer, plate (688)
Loading…
↗
69
9020111M2200
Washer, plate (688)
Loading…
↗
70
901851005100
Nut, self-locking
Loading…
↗
72
688445110094
Cover, upper mount
Loading…
↗
73
970900803500
Bolt(70w)
Loading…
↗
75
6H34851151EK
Hook, steering
Loading…
↗
76
901161017500
Bolt, stud
Loading…
↗
77
901851002700
Nut, self-locking
Loading…
↗
78
9010112M6500
Bolt
Loading…
↗
79
929951220000
Ybs66-12 washer,plain
Loading…
↗
80
902011242600
Washe, plate(663)
Loading…
↗
81
953801260000
Nut (707)
Loading…
↗
