40HM (1986)
Bracket 2

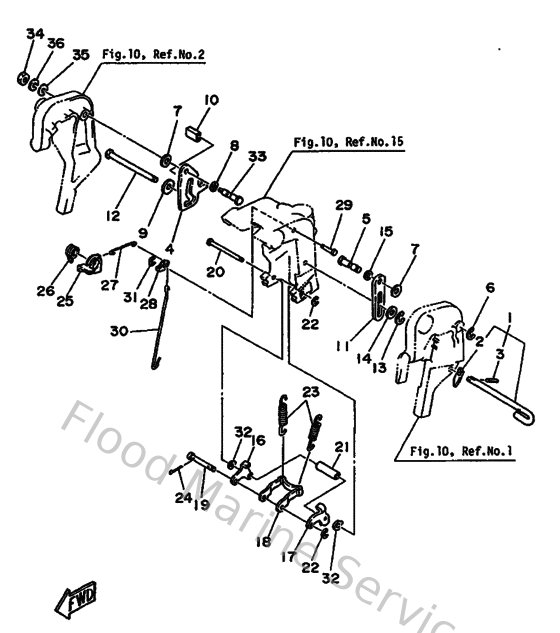

Diagram: Bracket 2
Parts List
Reference
Description
Price
1
6H4431600000
Tilt rod assembly
Loading…
↗
2
676431650000
Stopper plate, titl lock rod
Loading…
↗
3
916903001000
Pin, spring (663)
Loading…
↗
5
9024912M2700
Pin(6f6)
Loading…
↗
6
9343010M0000
Circlip
Loading…
↗
7
9020212M0100
Washer, plate (676)
Loading…
↗
8
902061205200
Washer, wave (666)
Loading…
↗
9
902021209200
Washer, plate(663)
Loading…
↗
10
663433180000
Cover
Loading…
↗
12
9024912M1700
Pin(6h4)
Loading…
↗
15
9020612M0000
Washer, wave (676)
Loading…
↗
17
6H4436150000
Plate, Tilt Lock
Loading…
↗
18
6H4436130000
Arm, Tilt Lock
Loading…
↗
19
6H4436590000
Shaft, reverse lock
Loading…
↗
20
6H4436110000
Shaft, Tilt Lock
Loading…
↗
21
9038707M6400
Collar (6h4)
Loading…
↗
22
9343006M0200
Circlip (689)
Loading…
↗
24
914902001200
Pin, cotter (648)
Loading…
↗
25
6H4436310100
Lever, Tilt 1
Loading…
↗
26
689436430000
Spring, torsion
Loading…
↗
27
6H4436160000
Rod, tilt lock 1
Loading…
↗
28
682436410100
Lever, tilt
Loading…
↗
29
902490611700
Pin(6e7)
Loading…
↗
30
6H4436170000
Rod, Tilt Lock 2
Loading…
↗
31
990800560000
Circlip(22k)
Loading…
↗
32
6H4436740000
Washer 2
Loading…
↗
34
953800870000
Nut(661)
Loading…
↗
35
929900820000
Ybs66-8 washer, plain
Loading…
↗
36
929900810000
Ybs67-8 washer, spring
