9.9FMH (2001)
Bracket 2

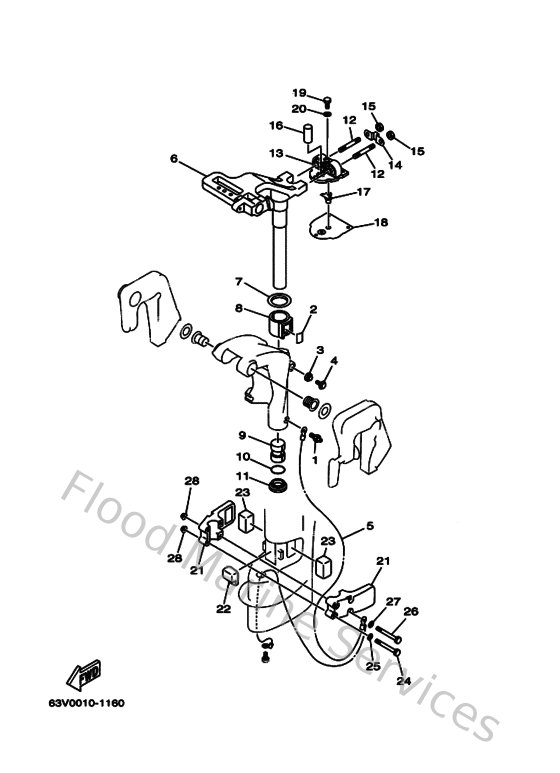

Diagram: Bracket 2
Parts List
Reference
Description
Price
1
9370006M0300
Nipple, grease(6a1)
Loading…
↗
2
63V425280000
Plate, friction
Loading…
↗
3
689433730100
Seal, damper
Loading…
↗
4
9010506M0700
Bolt (689)
Loading…
↗
5
63V821270000
Wire, lead 2
Loading…
↗
6
63V42511048D
Bracket, steering
Loading…
↗
7
902094000800
Washer
Loading…
↗
8
65F425370000
Bushing, pivot shaft
Loading…
↗
9
903863004800
Bush
Loading…
↗
10
9321029M9400
O-ring(6h1)
Loading…
↗
11
9038630M6000
Bush(6j8)
Loading…
↗
12
9011608M5400
Bolt, stud(63v)
Loading…
↗
13
63V44514015B
Mount damper, upper side
Loading…
↗
14
63V445260000
Plate
Loading…
↗
15
953800860000
Nut (661)
Loading…
↗
16
903871600200
Collar
Loading…
↗
17
63V443660100
Damper, water seal 2
Loading…
↗
18
63V45114A000
Gasket, upper casing
Loading…
↗
19
970950601800
Bolt (fj0)
Loading…
↗
20
929950660000
Washer, plain (646)
Loading…
↗
21
63V44551014D
Housing, lower mount rubber 1
Loading…
↗
22
63V445570000
Mount damper, lower front
Loading…
↗
23
682445550000
Mount damper, lower side
Loading…
↗
24
970750605500
Bolt, hexagon w/w deep recess
Loading…
↗
26
970750607500
Bolt, hexagon w/w deep recess
Loading…
↗
28
9017906M2800
Nut(63v)
Loading…
↗
