Yamaha Outboard Parts - Bracket 2 - 90AETOL (1986) | Flood Marine

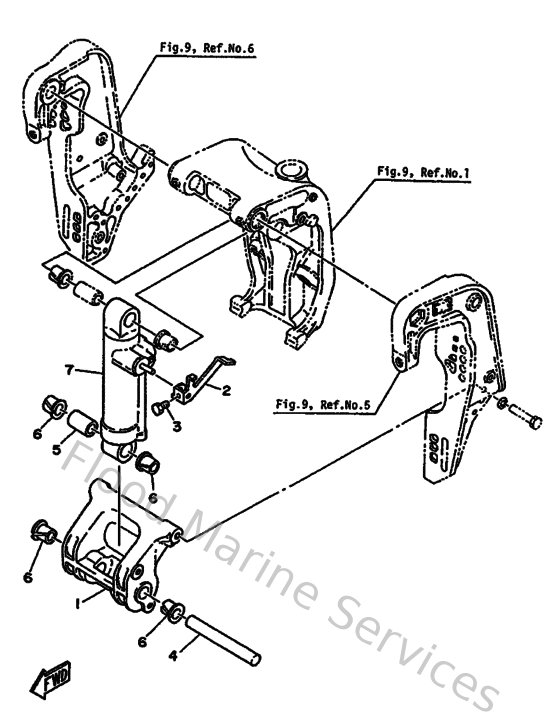

Diagram: Bracket 2

Diagram

Parts List

Reference
Description
Price


2
688436310000
Lever, tilt 1
Loading…

↗
3
973800601000
Bolt
Loading…

↗
4
688431240100
Pin, lower shock mount
Loading…

↗
5
9038618M2100
Bushing (688)
Loading…

↗
6
9038618M3500
Bush (688)
Loading…

↗
7
6884310705EJ
element
Loading…

↗
