F6AMH (2000)
Bracket 2

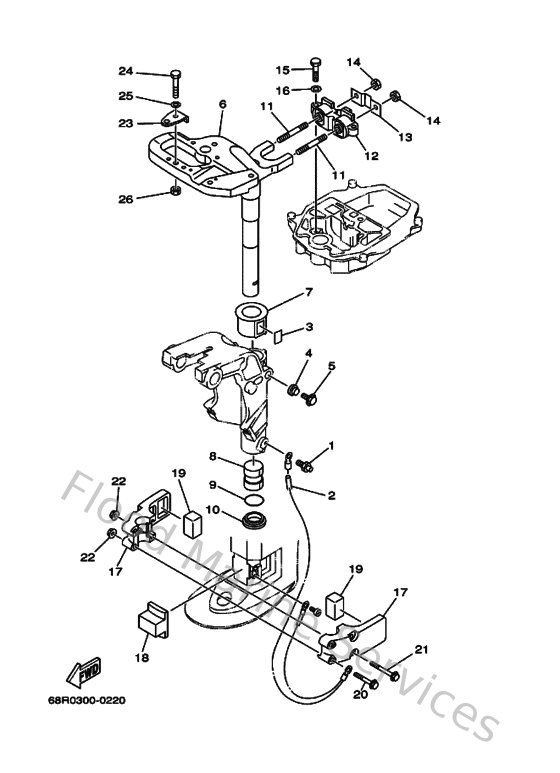

Diagram: Bracket 2
Parts List
Reference
Description
Price
1
9370006M0300
Nipple, grease(6a1)
Loading…
↗
2
68T821270000
Wire, lead 2
Loading…
↗
3
63V425280000
Plate, friction
Loading…
↗
4
689433730100
Seal, damper
Loading…
↗
5
9010506M0700
Bolt (689)
Loading…
↗
6
68T42511004D
Bracket, Steering
Loading…
↗
7
63V425370000
Bushing, pivot shaft
Loading…
↗
8
903863004800
Bush
Loading…
↗
9
9321029M9400
O-ring(6h1)
Loading…
↗
10
9038630M6000
Bush(6j8)
Loading…
↗
11
9011608M5400
Bolt, stud(63v)
Loading…
↗
12
68T445170094
Mount rubber
Loading…
↗
13
68T445260000
Plate
Loading…
↗
14
988800810000
Nut, hex.
Loading…
↗
15
970750602500
Bolt
Loading…
↗
16
929950660000
Washer, plain (646)
Loading…
↗
17
68T44551004D
Housing, lower mount rubber 1
Loading…
↗
18
60RG45570000
Mount Damper Lower Front
Loading…
↗
19
682445550000
Mount damper, lower side
Loading…
↗
20
901190601200
Bolt, with washer
Loading…
↗
21
901190601300
Bolt, with washer
Loading…
↗
22
9017906M2800
Nut(63v)
Loading…
↗
