F9.9CMH (2001)
Bracket 2

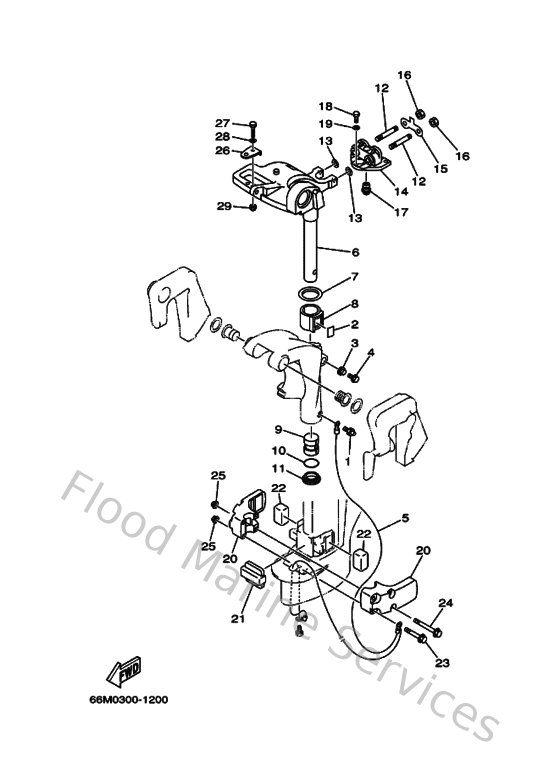

Diagram: Bracket 2
Parts List
Reference
Description
Price
1
9370006M0300
Nipple, grease(6a1)
Loading…
↗
2
63V425280000
Plate, friction
Loading…
↗
3
689433730100
Seal, damper
Loading…
↗
4
9010506M0700
Bolt (689)
Loading…
↗
5
66M821270000
Wire, Lead 2
Loading…
↗
6
66M42511014D
Bracket Steering
Loading…
↗
7
902094000800
Washer
Loading…
↗
8
65F425370000
Bushing, pivot shaft
Loading…
↗
9
903863004800
Bush
Loading…
↗
10
9321029M9400
O-ring(6h1)
Loading…
↗
11
9038630M6000
Bush(6j8)
Loading…
↗
12
9011608M5400
Bolt, stud(63v)
Loading…
↗
13
9020108M0600
Washer, plate
Loading…
↗
14
66M44514004D
Mount damper, upper side
Loading…
↗
15
66M445260000
Plate
Loading…
↗
16
953800860000
Nut (661)
Loading…
↗
17
66M443660000
Damper, water seal
Loading…
↗
18
970750602500
Bolt
Loading…
↗
19
929900660000
Washer, plain (646)
Loading…
↗
20
66M44551004D
Housing, lower mount rubber 1
Loading…
↗
21
66M445570000
Mount damper, lower front
Loading…
↗
22
682445553000
Mount damper, lower side
Loading…
↗
23
9011908M4500
Bolt, with washer
Loading…
↗
24
9011908M4600
Bolt, with washer
Loading…
↗
25
9017908M3400
Nut
Loading…
↗
