Yamaha Outboard Parts - Bracket 2 - FL115AET (2000) | Flood Marine

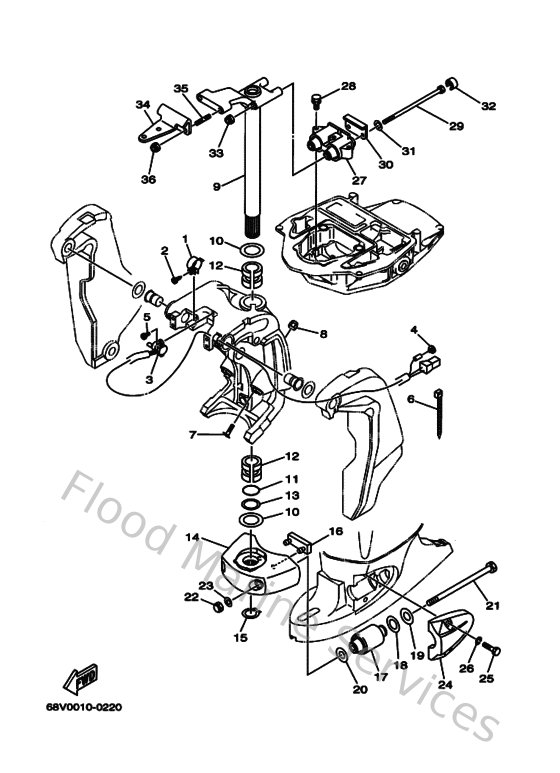

Diagram: Bracket 2

Diagram

Parts List

Reference
Description
Price


1
64E431390000
Cam, trim sender (with screw)
Loading…

↗
2
977806052500
Screw, tapping(65j)
Loading…

↗
3
64E836720000
Trim sender
Loading…

↗
4
703821190000
Cover, lead wire
Loading…

↗
5
901570600900
Screw, pan head(6b0)
Loading…

↗
6
9046511M1000
Clamp
Loading…

↗
7
61A433760000
Bolt, thrust receiver
Loading…

↗
8
957801030000
Nut, nylon (6e5)
Loading…

↗
9
68V42510308D
Steering bracket assembly
Loading…

↗
10
9020138M6000
Washer, plate (6e5)
Loading…

↗
11
9321037MH700
O-ring(61u)
Loading…

↗
12
9038638M3200
Bush(6e5)
Loading…

↗
13
9020240M4700
Washer, plate(61a)
Loading…

↗
14
68V44551008D
Housing, lower mount rubber
Loading…

↗
15
9341037M0400
Circlip (6e5)
Loading…

↗
16
61A445750000
Damper, lower mount rubber
Loading…

↗
17
61A445550194
Mount damper, lower side
Loading…

↗
18
9020232M1900
Washer, plate (6e5)
Loading…

↗
19
9020116M5500
Washer, plate (6e5)
Loading…

↗
20
9020115M5800
Washer, plate (6e5)
Loading…

↗
21
9010914MA700
Bolt
Loading…

↗
22
953801460000
Nut,hex. (ge6)
Loading…

↗
23
929951460000
Washer (6e5)
Loading…

↗
24
68V44553008D
Cover, lower mount
Loading…

↗
25
970751004000
Bolt, hexagon deep recess
Loading…

↗
26
929951010000
Ybs67-10 washer, spring
Loading…

↗
27
67F445140094
Mount damper, upper side
Loading…

↗
28
975750854500
Bolt, hexagon w/w deep recess
Loading…

↗
29
9010912M3700
Bolt
Loading…

↗
30
67F445260000
Plate
Loading…

↗
31
9020112M0900
Washer, plate
Loading…

↗
32
67F445330000
Damper, upper mount rubber
Loading…

↗
33
9018512M1200
Nut, self-locking(6e5)
Loading…

↗
34
68V485110100
Hook, steering
Loading…

↗
35
901161017500
Bolt, stud
Loading…

↗
36
901851005100
Nut, self-locking
Loading…

↗
