L200FETOL (1996)
Bracket 2

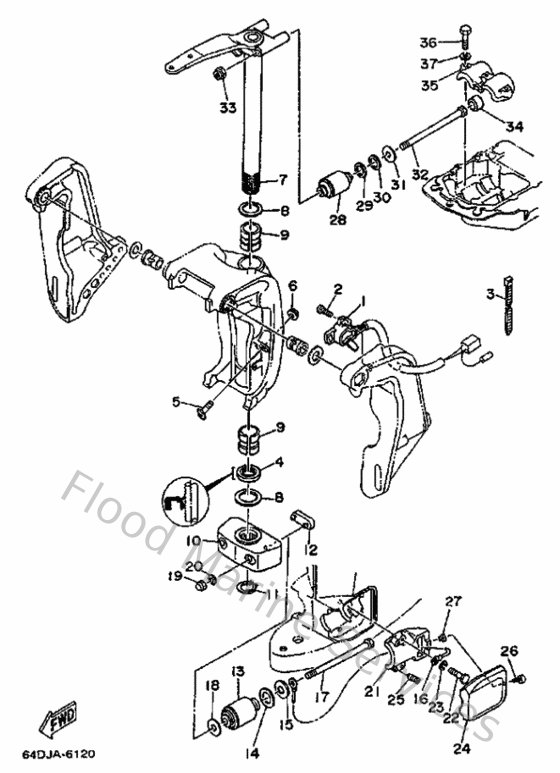

Diagram: Bracket 2
Parts List
Reference
Description
Price
1
64D836720000
Trim Sender
Loading…
↗
2
978850601600
Screw, pan head(6b0)
Loading…
↗
3
904651009800
Clamp
Loading…
↗
4
9310938M0200
Oil seal (6e5)
Loading…
↗
5
6G5433760000
Bolt, Thrust Receiver
Loading…
↗
6
957801030000
Nut, nylon (6e5)
Loading…
↗
7
6E542510D08D
element
Loading…
↗
8
9020138M6000
Washer, plate (6e5)
Loading…
↗
9
9038638M3200
Bush(6e5)
Loading…
↗
10
6G544551018D
Housing, lower mount rubber
Loading…
↗
11
9341037M0400
Circlip (6e5)
Loading…
↗
12
6E5445750000
Damper, lower mount rubber
Loading…
↗
13
6G5445550094
Mount damper, lower side
Loading…
↗
14
9020232M1900
Washer, plate (6e5)
Loading…
↗
15
9020116M5500
Washer, plate (6e5)
Loading…
↗
16
6E5821490000
Wire, lead 3
Loading…
↗
17
9010914M3400
Bolt(6e5)
Loading…
↗
18
9020115M5800
Washer, plate (6e5)
Loading…
↗
19
953801480000
Nut, crown (6e5)
Loading…
↗
20
929951460000
Washer (6e5)
Loading…
↗
21
6E5445520194
Housing, lower mount rubber
Loading…
↗
22
970951004500
Bolt(64d)
Loading…
↗
23
929901010000
Ybs67-10 washer, spring
Loading…
↗
24
6E544553018D
Cover, lower mount
Loading…
↗
25
9050116M2800
Spring (6e5)
Loading…
↗
27
901790606600
Nut(663)
Loading…
↗
28
6G5445140000
Mount damper, upper side
Loading…
↗
29
9020126M5700
Washer, plate (6e5)
Loading…
↗
30
9020226M1800
Washer, plate (6e5)
Loading…
↗
31
9020114M5600
Washer, plate (6e5)
Loading…
↗
32
9010912M3700
Bolt
Loading…
↗
33
9018512M1200
Nut, self-locking(6e5)
Loading…
↗
34
663445750000
Damper, lower mount rubber
Loading…
↗
35
6E544511005B
Cover, upper mount
Loading…
↗
