130BETOL (1995)
Bracket 3

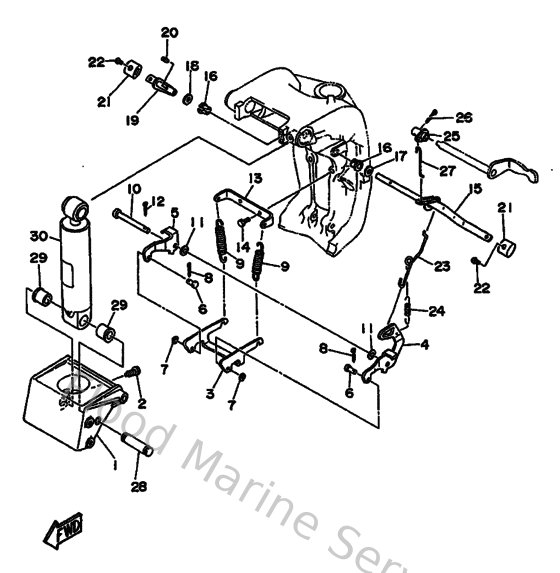

Diagram: Bracket 3
Parts List
Reference
Description
Price
1
6E543128004D
Spacer, Clamp Bracket
Loading…
↗
2
9010906M0700
Bolt (6e5)
Loading…
↗
3
6E5436130000
Arm, tilt lock
Loading…
↗
4
6E5436140000
Plate, tilt lock 1
Loading…
↗
5
6E5436150000
Plate, Tilt Lock
Loading…
↗
6
9024006M0700
Pin, Clevis
Loading…
↗
7
929900660000
Washer, plain (646)
Loading…
↗
8
914902502000
Pin, cotter
Loading…
↗
9
9050623M1000
Spring, Tension
Loading…
↗
10
6E5436590000
Shaft, Reverse Lock
Loading…
↗
11
929900860000
Washer, plain (663)
Loading…
↗
13
6E5436790000
Stopper, Hook
Loading…
↗
14
970950601600
Bolt, hexagon deep recess
Loading…
↗
15
6E5436300100
Tilt Lever assembly
Loading…
↗
16
903860803200
Bushing (650)
Loading…
↗
17
9020208M0800
Washer, Plate
Loading…
↗
19
61U436310000
Lever, Tilt
Loading…
↗
20
916903021600
Pin, spring(663)
Loading…
↗
21
6E5433170000
Grip
Loading…
↗
22
9015205M0000
Screw, Countersunk
Loading…
↗
23
6E5436160000
Rod, tilt lock
Loading…
↗
25
688431840000
Collar, anchor lever
Loading…
↗
26
914903003000
Pin, cotter
Loading…
↗
27
6E5436760000
Hook
Loading…
↗
28
6E5431240000
Pin, lower shock mount
Loading…
↗
29
9038618M4400
Bushing (6g5)
Loading…
↗
30
6E543170004D
Shock Absorber assembly
Loading…
↗
