E60HELH (2000)
Bracket 3

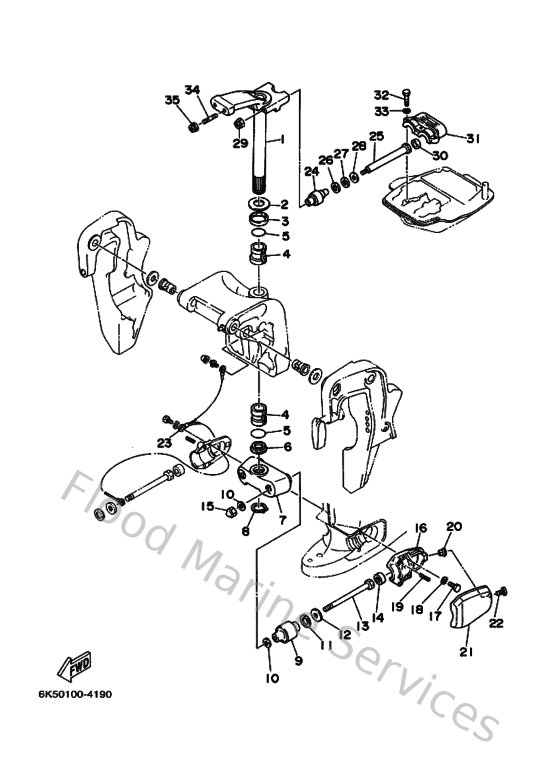

Diagram: Bracket 3
Parts List
Reference
Description
Price
1
6H342510124D
Steering bracket assembly
Loading…
↗
2
9020130M0000
Washer, plate(6h1)
Loading…
↗
3
9038630M7800
Bush(6h0)
Loading…
↗
4
9038630M7700
Bush(6h0)
Loading…
↗
5
9321029M9400
O-ring(6h1)
Loading…
↗
6
9038630M6000
Bush(6j8)
Loading…
↗
7
6H344551014D
Housing, lower mount rubber 1
Loading…
↗
8
9341028M0600
Circlip (688)
Loading…
↗
9
687445550094
Mount damper, lower side
Loading…
↗
10
9020112M1600
Washer, plate (679)
Loading…
↗
11
9020225M0400
Washer, plate (663)
Loading…
↗
12
9020113M1900
Washer, plate (663)
Loading…
↗
13
9010912M2100
Bolt (6h3)
Loading…
↗
14
663445750000
Damper, lower mount rubber
Loading…
↗
15
953801280000
Nut crown(663)
Loading…
↗
16
6H3445520294
Housing, lower mount rubber
Loading…
↗
17
970750802500
Bolt, hexagon deep recess
Loading…
↗
18
929950810000
Ybs67-8 washer, spring
Loading…
↗
19
9050114M0800
Spring, compression(64j)
Loading…
↗
20
901790606600
Nut(663)
Loading…
↗
21
6H344553018D
Cover, lower mount
Loading…
↗
22
978850601600
Screw, pan head(6b0)
Loading…
↗
23
688821270200
Wire, lead 2
Loading…
↗
24
688445140000
Mount damper, upper side
Loading…
↗
25
9010110M4900
Bolt
Loading…
↗
26
9020120M2100
Washer, plate (688)
Loading…
↗
27
9020220M0600
Washer, plate (688)
Loading…
↗
28
9020111M2200
Washer, plate (688)
Loading…
↗
29
901851002700
Nut, self-locking
Loading…
↗
31
688445110094
Cover, upper mount
Loading…
↗
32
970750803500
Bolt(70w)
Loading…
↗
33
929900810000
Ybs67-8 washer, spring
Loading…
↗
34
901161017500
Bolt, stud
Loading…
↗
35
901851005100
Nut, self-locking
Loading…
↗
