F30AMS (2001)
Bracket 3

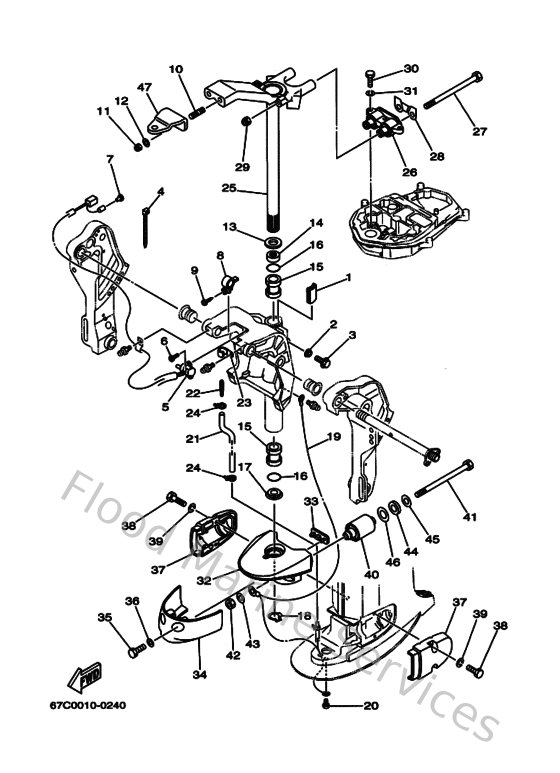

Diagram: Bracket 3
Parts List
Reference
Description
Price
1
6J8425280000
Plate, friction
Loading…
↗
2
689433730100
Seal, damper
Loading…
↗
3
9010506M1800
Bolt (689)
Loading…
↗
10
9011610M2800
Bolt, stud
Loading…
↗
11
901851005100
Nut, self-locking
Loading…
↗
12
929951060000
Washer, plate
Loading…
↗
13
9020130M0000
Washer, plate(6h1)
Loading…
↗
14
9038630M7800
Bush(6h0)
Loading…
↗
15
9038630M7700
Bush(6h0)
Loading…
↗
16
9321029M9400
O-ring(6h1)
Loading…
↗
17
9038630M6000
Bush(6j8)
Loading…
↗
18
9341028M0600
Circlip (688)
Loading…
↗
19
67C821270000
Wire, lead 2
Loading…
↗
20
978850600800
Screw, pan head(6a3)
Loading…
↗
21
9044507M2100
Hose (l1160)
Loading…
↗
22
6E5835580000
End, nipple
Loading…
↗
23
9046508M0700
Clamp (1e6)
Loading…
↗
24
9046511M1000
Clamp
Loading…
↗
25
67C42510118D
Steering bracket assembly
Loading…
↗
26
67C44514004D
Mount damper, upper side
Loading…
↗
27
901090822900
Bolt
Loading…
↗
28
66T445263000
Plate
Loading…
↗
29
901850804500
Nut, self-locking
Loading…
↗
30
970800803000
Bolt, hexagon (fj1)
Loading…
↗
31
929950810000
Ybs67-8 washer, spring
Loading…
↗
32
67C44551108D
Housing, lower mount rubber
Loading…
↗
33
67C445750000
Damper, lower mount rubber
Loading…
↗
34
67C44553004D
Cover, lower mount
Loading…
↗
35
970950802000
Bolt, hexagon
Loading…
↗
36
929950860000
Washer, plain (663)
Loading…
↗
37
67C44552018D
Housing, lower mount rubber
Loading…
↗
38
970750803000
Bolt, hexagon (fj1)
Loading…
↗
40
67C445552094
Mount damper, lower side
Loading…
↗
41
9010912MA300
Bolt
Loading…
↗
42
953801270000
Nut(6t4)
Loading…
↗
43
9020112M1600
Washer, plate (679)
Loading…
↗
44
902022110000
Washer plate (663)
Loading…
↗
45
9020113M1900
Washer, plate (663)
Loading…
↗
46
9020122M0500
Washer, plate
Loading…
↗
47
65W485110000
Hook, steering
