Yamaha Outboard Parts - Bracket 3 - FT25BE (2000) | Flood Marine

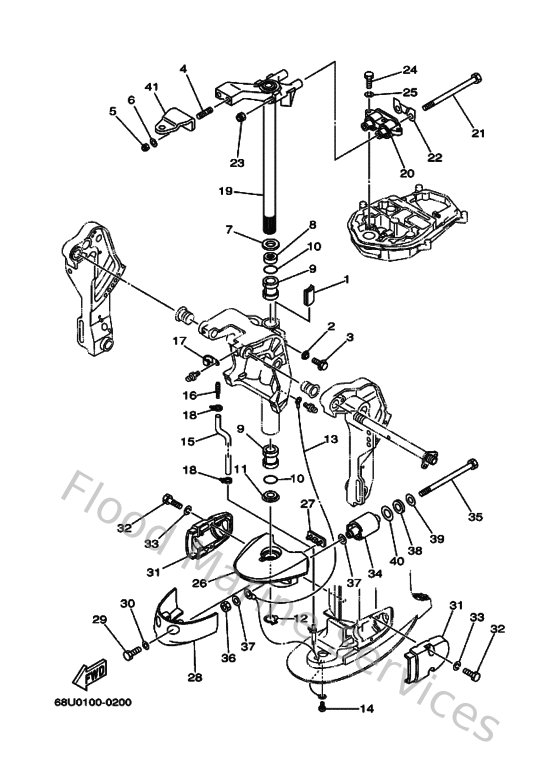

Diagram: Bracket 3

Diagram

Parts List

Reference
Description
Price


1
6J8425280000
Plate, friction
Loading…

↗
2
689433730100
Seal, damper
Loading…

↗
3
9010506M1800
Bolt (689)
Loading…

↗
4
9011610M7000
Bolt, stud
Loading…

↗
5
901851005100
Nut, self-locking
Loading…

↗
6
929901060000
Washer, plate
Loading…

↗
7
9020130M0000
Washer, plate(6h1)
Loading…

↗
8
9038630M7800
Bush(6h0)
Loading…

↗
9
9038630M7700
Bush(6h0)
Loading…

↗
10
9321029M9400
O-ring(6h1)
Loading…

↗
11
9038630M6000
Bush(6j8)
Loading…

↗
12
9341028M0600
Circlip (688)
Loading…

↗
13
67C821271000
Wire, lead 2
Loading…

↗
14
978850600800
Screw, pan head(6a3)
Loading…

↗
15
9044507M5300
Hose (l1160)
Loading…

↗
16
6E5835580000
End, nipple
Loading…

↗
17
9046508M0700
Clamp (1e6)
Loading…

↗
18
9046511M1000
Clamp
Loading…

↗
19
68U42510114D
Steering bracket assembly
Loading…

↗
20
67C44514104D
Mount damper, upper side
Loading…

↗
21
9010108M1500
Bolt
Loading…

↗
22
66T445263000
Plate
Loading…

↗
23
901850801800
Nut, self-locking
Loading…

↗
24
970750803000
Bolt, hexagon (fj1)
Loading…

↗
25
929950810000
Ybs67-8 washer, spring
Loading…

↗
26
67C44551104D
Housing, lower mount rubber
Loading…

↗
27
67C445750000
Damper, lower mount rubber
Loading…

↗
28
67C44553008D
Cover, lower mount
Loading…

↗
29
970950802000
Bolt, hexagon
Loading…

↗
30
929950860000
Washer, plain (663)
Loading…

↗
31
67C44552004D
Housing, lower mount rubber
Loading…

↗
32
970800803000
Bolt, hexagon (fj1)
Loading…

↗
34
68U445551094
Mount damper, lower side
Loading…

↗
35
9010912MA300
Bolt
Loading…

↗
36
953801280000
Nut crown(663)
Loading…

↗
37
9020112M1600
Washer, plate (679)
Loading…

↗
38
902022110000
Washer plate (663)
Loading…

↗
39
9020113M1900
Washer, plate (663)
Loading…

↗
40
9020122M0500
Washer, plate
Loading…

↗
41
65W485110000
Hook, steering
Loading…

↗
