85AET (2000)
Bracket 5

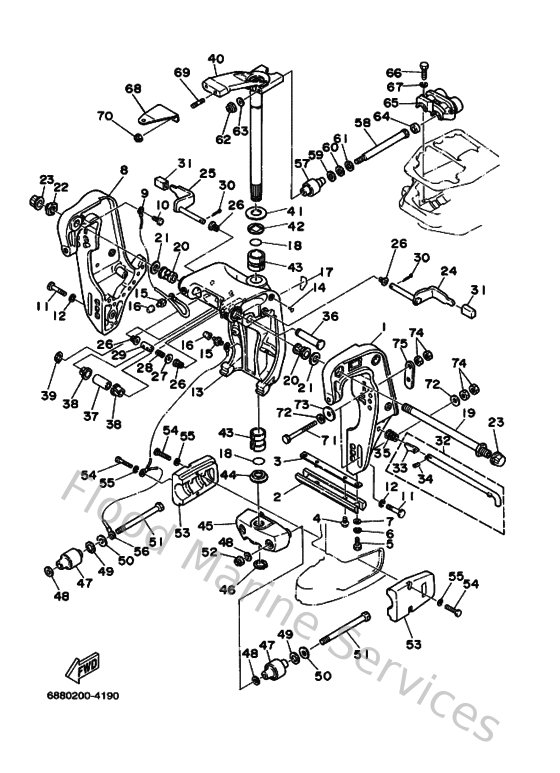

Diagram: Bracket 5
Parts List
Reference
Description
Price
2
6H1452510300
Anode
Loading…
↗
3
6H1445260000
Plate 2
Loading…
↗
4
9011906M2900
Bolt, with washer
Loading…
↗
5
970950601600
Bolt, hexagon deep recess
Loading…
↗
6
929950610000
Washer(6a1)
Loading…
↗
7
929950660000
Washer, plain (646)
Loading…
↗
9
6E5821480000
Wire, lead 5
Loading…
↗
10
978850601200
Screw, pan head(62j)
Loading…
↗
11
970951004500
Bolt(64d)
Loading…
↗
12
929951010000
Ybs67-10 washer, spring
Loading…
↗
14
902690301000
Rivet (663)
Loading…
↗
15
9370006M0300
Nipple, grease(6a1)
Loading…
↗
16
663451190000
Cap, grease nipple
Loading…
↗
18
9321029M9400
O-ring(6h1)
Loading…
↗
19
688431310300
Bolt, clamp bracket
Loading…
↗
20
9038622M8400
Bushing (688)
Loading…
↗
21
9020122M6700
Washer, plate (688)
Loading…
↗
22
901852204300
Nut, self-locking
Loading…
↗
23
6G5431450000
Cap, clamp bracket
Loading…
↗
24
688431810400
Lever, tilt stop 1
Loading…
↗
25
688431850400
Lever, tilt stop 2
Loading…
↗
26
9038610M1600
Bushing (688)
Loading…
↗
27
929901060000
Washer, plate
Loading…
↗
28
9050110M2100
Spring (688)
Loading…
↗
29
9038710M3800
Coller (6e5)
Loading…
↗
30
914903003000
Pin, cotter
Loading…
↗
31
663433180000
Cover
Loading…
↗
32
688431606000
Tilt Rod Assy
Loading…
↗
33
688431650000
Stopper, tilt rod
Loading…
↗
34
916903001200
Pin, spring
Loading…
↗
35
9050220M0300
Spring (6e5)
Loading…
↗
36
6E5431260200
Pin, upper shock mount
Loading…
↗
37
9038618M2100
Bushing (688)
Loading…
↗
38
9038618M3500
Bush (688)
Loading…
↗
39
9341018M0500
Circlip (6f2)
Loading…
↗
40
68842510614D
Steering Bracket Assy
Loading…
↗
41
9020130M0000
Washer, plate(6h1)
Loading…
↗
42
9038630M7800
Bush(6h0)
Loading…
↗
43
9038630M8500
Bushing (688)
Loading…
↗
44
9038630M6000
Bush(6j8)
Loading…
↗
45
68844551604D
Housing, Lower Mount Rubber
Loading…
↗
46
9341029M0900
Circlip (688)
Loading…
↗
47
688445550094
Mount damper, lower side
Loading…
↗
48
9020112M1600
Washer, plate (679)
Loading…
↗
49
9020225M0400
Washer, plate (663)
Loading…
↗
50
9020113M1900
Washer, plate (663)
Loading…
↗
51
9010912M4200
Bolt
Loading…
↗
52
957801230000
Nut, nylon (6f2)
Loading…
↗
53
68844553604D
Cover, lower mount
Loading…
↗
55
929900810000
Ybs67-8 washer, spring
Loading…
↗
57
688445146094
Mount damper, upper side
Loading…
↗
58
9010910M4300
Bolt (688)
Loading…
↗
59
9020120M2100
Washer, plate (688)
Loading…
↗
60
9020220M0600
Washer, plate (688)
Loading…
↗
61
9020113M0300
Washer, plate (688)
Loading…
↗
62
901851005100
Nut, self-locking
Loading…
↗
64
663445750000
Damper, lower mount rubber
Loading…
↗
65
68844511605B
Cover, Upper Mount
Loading…
↗
67
929950810000
Ybs67-8 washer, spring
Loading…
↗
68
68848511114D
Hook, steering
Loading…
↗
69
901161006300
Bolt, stud
Loading…
↗
71
9010112M0300
Bolt (l:115mm)
Loading…
↗
72
9020113M0100
Washer, plate(6e5)
Loading…
↗
73
902011242600
Washe, plate(663)
Loading…
↗
74
953801260000
Nut (707)
Loading…
↗
75
688433396000
Washer
Loading…
↗
