D150HETO (1999)
Bracket 5

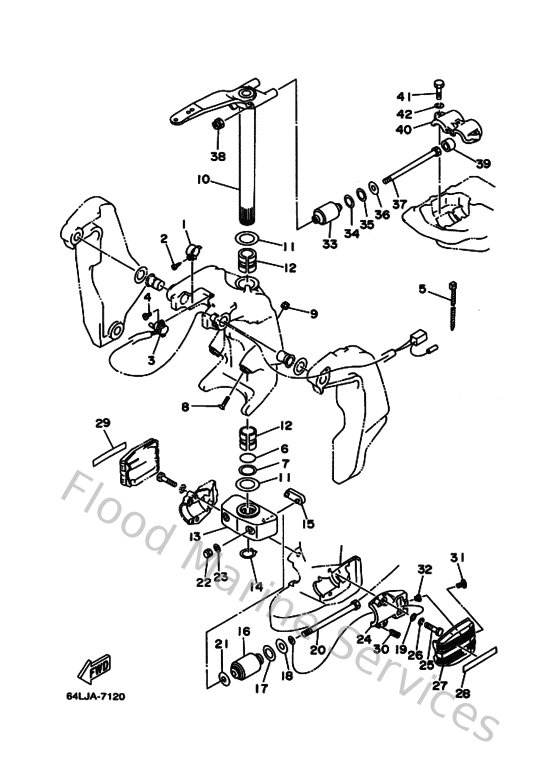

Diagram: Bracket 5
Parts List
Reference
Description
Price
1
64E431390000
Cam, trim sender (with screw)
Loading…
↗
2
977806052500
Screw, tapping(65j)
Loading…
↗
3
64E836720000
Trim sender
Loading…
↗
4
901570600900
Screw, pan head(6b0)
Loading…
↗
5
9046511M1000
Clamp
Loading…
↗
6
9321037MH700
O-ring(61u)
Loading…
↗
7
9020240M4700
Washer, plate(61a)
Loading…
↗
8
61A433760000
Bolt, thrust receiver
Loading…
↗
9
957801030000
Nut, nylon (6e5)
Loading…
↗
10
6E542510A18D
Steering bracket assembly
Loading…
↗
11
9020138M6000
Washer, plate (6e5)
Loading…
↗
12
9038638M3200
Bush(6e5)
Loading…
↗
13
6G544551018D
Housing, lower mount rubber
Loading…
↗
14
9341037M0400
Circlip (6e5)
Loading…
↗
15
6E5445750000
Damper, lower mount rubber
Loading…
↗
16
6J9445550094
Mount damper, lower side
Loading…
↗
17
9020232M1900
Washer, plate (6e5)
Loading…
↗
18
9020116M5500
Washer, plate (6e5)
Loading…
↗
19
6E5821490000
Wire, lead 3
Loading…
↗
20
9010914M3400
Bolt(6e5)
Loading…
↗
21
9020115M5800
Washer, plate (6e5)
Loading…
↗
22
953801480000
Nut, crown (6e5)
Loading…
↗
23
929951460000
Washer (6e5)
Loading…
↗
24
6E5445520194
Housing, lower mount rubber
Loading…
↗
25
970951004500
Bolt(64d)
Loading…
↗
26
929901010000
Ybs67-10 washer, spring
Loading…
↗
27
6J94455301NA
Cover, lower mount
Loading…
↗
28
65N43155N000
Mark 1
Loading…
↗
29
65N43156N000
Mark 2
Loading…
↗
30
9050116M2800
Spring (6e5)
Loading…
↗
31
9015706M0500
Screw, Pan Head
Loading…
↗
32
901790606600
Nut(663)
Loading…
↗
33
6J9445140000
Mount damper, upper side
Loading…
↗
34
9020126M5700
Washer, plate (6e5)
Loading…
↗
35
9020226M1800
Washer, plate (6e5)
Loading…
↗
36
9020114M5600
Washer, plate (6e5)
Loading…
↗
37
9010912M3700
Bolt
Loading…
↗
38
9018512M1200
Nut, self-locking(6e5)
Loading…
↗
39
663445750000
Damper, lower mount rubber
Loading…
↗
40
6E544511005B
Cover, upper mount
Loading…
↗
42
929951010000
Ybs67-10 washer, spring
