140AETOL (1996)
C.d.i. Magneto

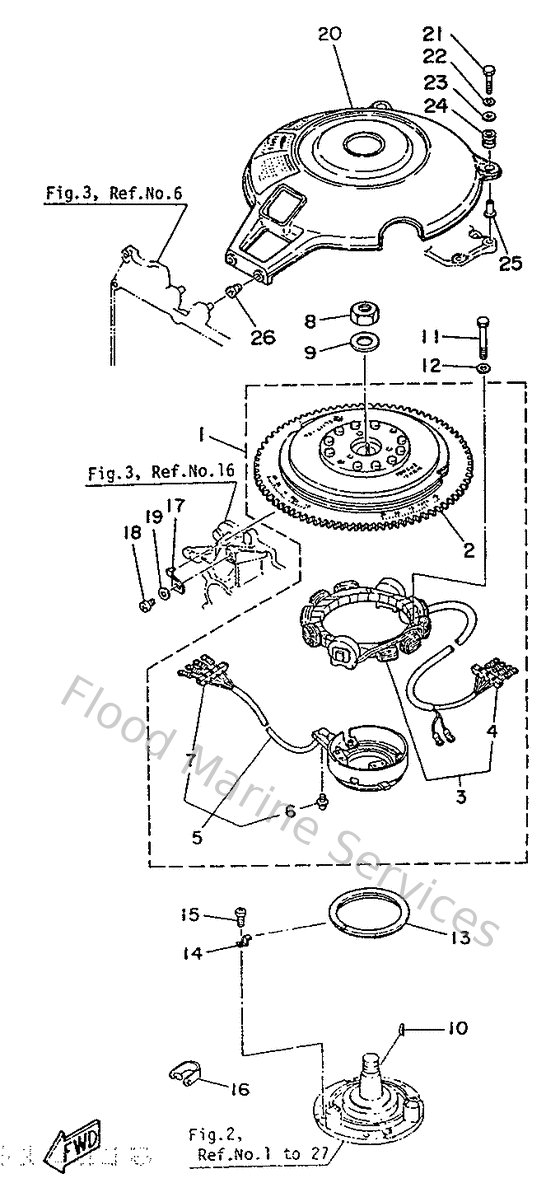

Diagram: C.d.i. Magneto
Parts List
Reference
Description
Price
3
6E5855101000
Stator Assembly
Loading…
↗
4
9048006M1600
Grommet
Loading…
↗
5
6E5855801200
Coil, Pulser
Loading…
↗
6
663855180000
Joint, ball
Loading…
↗
8
901702013700
Nut, hexagon(663)
Loading…
↗
10
902800501500
Key, woodruff
Loading…
↗
11
975950655500
Bolt, hexagon w/w deep recess
Loading…
↗
12
929030660000
Washer, plain (646)
Loading…
↗
13
688416110000
Retainer, magneto base 1
Loading…
↗
14
688416120000
Retainer, magneto base 2
Loading…
↗
15
978010601800
Screw, pan head(6e5)
Loading…
↗
17
6E5813320000
Plate, timing
Loading…
↗
18
978030601000
Screw pan head
Loading…
↗
20
6E5813370000
Cover, flywheel
Loading…
↗
21
973130603000
Bolt
Loading…
↗
22
929950610000
Washer(6a1)
Loading…
↗
23
9020106M6200
Washer, plate (6e5)
Loading…
↗
24
663823170000
Damper, ignition coil
Loading…
↗
25
624425420000
Collar
Loading…
↗
26
6G5823170000
Damper
Loading…
↗
