115BETO (1998)
CARBURETOR

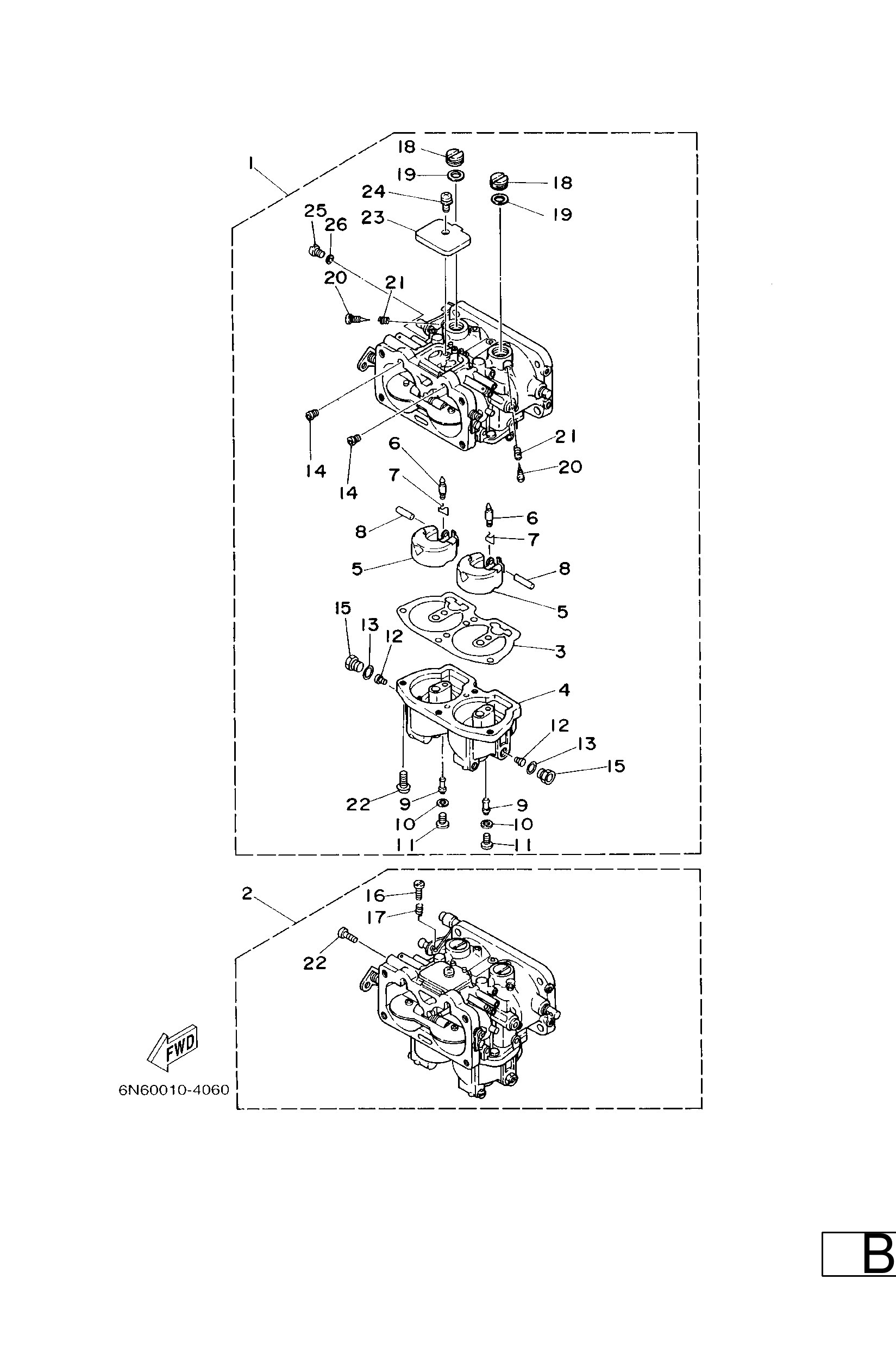

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
6E51430115
Carburetor assembly 1
Loading…
↗
2
6E51430215
Carburetor assembly 2
Loading…
↗
3
64D1438400
Gasket, float chamber
Loading…
↗
4
64D1438100
Body, float chamber
Loading…
↗
5
6E51438502
Float
Loading…
↗
6
6E51454600
Valve, needle
Loading…
↗
7
6E51415900
Clip
Loading…
↗
8
6E51438602
Pin, float
Loading…
↗
9
64D1492F39
Jet, air slow (#78)
Loading…
↗
10
61U1495900
Gasket
Loading…
↗
11
64D1439400
Valve, drain
Loading…
↗
12
64D1492E88
Jet, main (#176)
Loading…
↗
13
6E51439800
Gasket
Loading…
↗
14
61A1492H12
Jet, slow air (#60)
Loading…
↗
15
6E51438301
Screw, drain
Loading…
↗
16
6E51432100
LOWER
Screw, throttle
Loading…
↗
17
6J81433400
LOWER
Spring, throttle
Loading…
↗
18
6E51432801
Plug
Loading…
↗
19
6E51497900
Gasket
Loading…
↗
20
6E51432303
Screw, air adjusting
Loading…
↗
21
6E51422300
Spring, air adjusting
Loading…
↗
22
9798005116
Screw, pan head
Loading…
↗
23
6E51452701
Plate
Loading…
↗
24
9798005108
Screw, with washer
Loading…
↗
25
6E51432400
Screw, flat head
Loading…
↗
26
6J81495900
Gasket, drin screw
Loading…
↗
