Yamaha Outboard Parts - CARBURETOR - 115CETO (2012) | Flood Marine

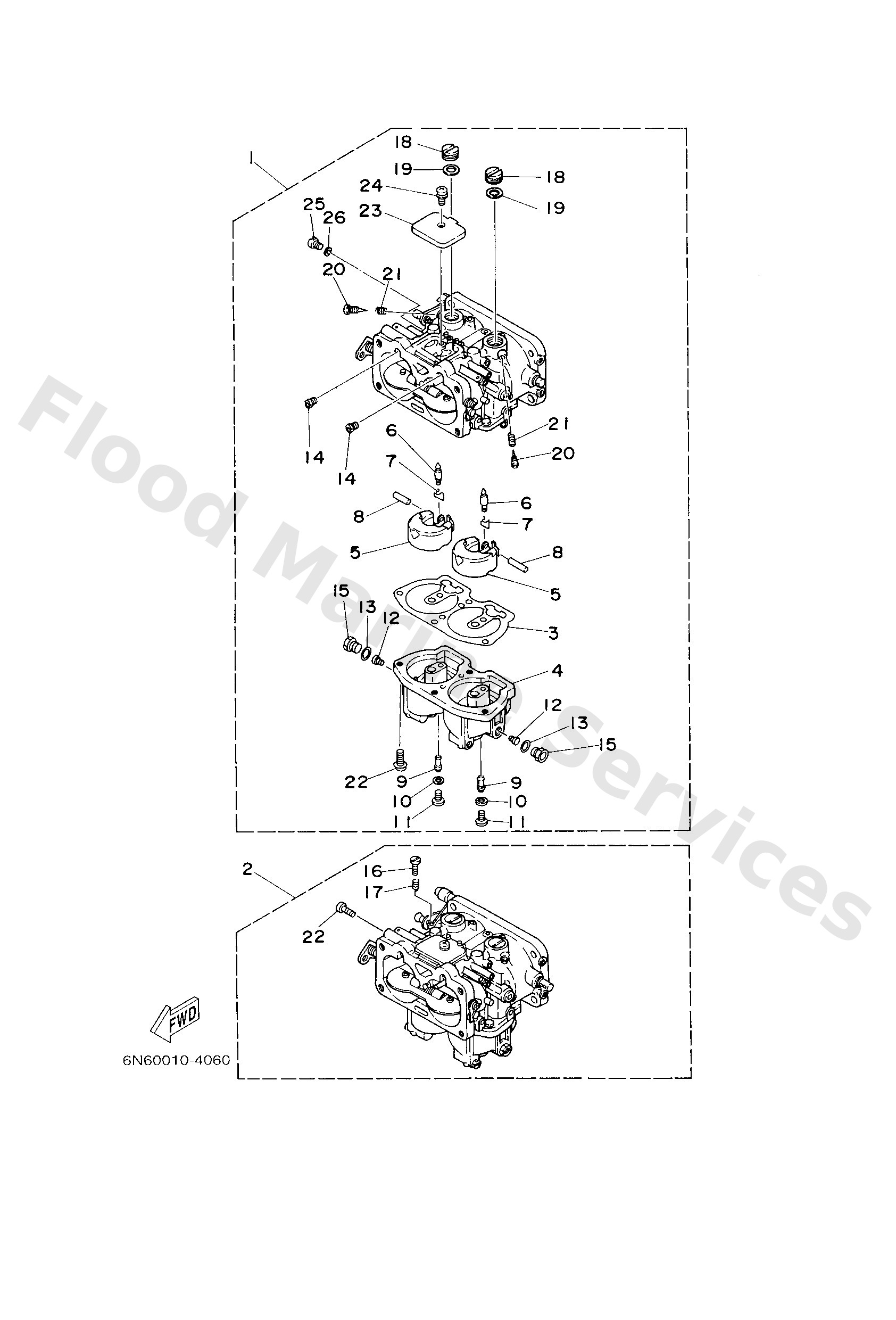

Diagram: CARBURETOR

Diagram

Parts List

Reference
Description
Price


1
6E51430117
Carburetor assembly 1
Loading…

↗
2
6E51430217
Carburetor assembly 2
Loading…

↗
3
64D1438401
Gasket, float chamber
Loading…

↗
4
64D1438100
Body, float chamber
Loading…

↗
5
6E51438502
Float
Loading…

↗
6
6E51454600
Valve, needle
Loading…

↗
7
6E51415900
Clip
Loading…

↗
8
6E51438602
Pin, float
Loading…

↗
9
64D1492F39
Jet, air slow (#78)
Loading…

↗
10
61U1495900
Gasket
Loading…

↗
11
64D1439400
Valve, drain
Loading…

↗
12
64D1492E88
Jet, main (#176)
Loading…

↗
13
6E51439801
Gasket
Loading…

↗
14
61A1492H12
Jet, slow air (#60)
Loading…

↗
15
61A1438301
Screw, drain
Loading…

↗
16
6E51432100 #2
Screw, throttle
Loading…

↗
17
6J81433400 #2
Spring, throttle
Loading…

↗
18
6E51432801
Plug
Loading…

↗
19
6E51497900
Gasket
Loading…

↗
20
6E51432303
Screw, air adjusting
Loading…

↗
21
6E51422300
Spring, air adjusting
Loading…

↗
22
9798005116
Screw, pan head
Loading…

↗
23
6E51452701
Plate
Loading…

↗
24
9798005108
Screw, with washer
Loading…

↗
25
6E51432400
Screw, flat head
Loading…

↗
26
6J81499500
Gasket, drin screw
Loading…

↗
