15FWC (2002)
CARBURETOR

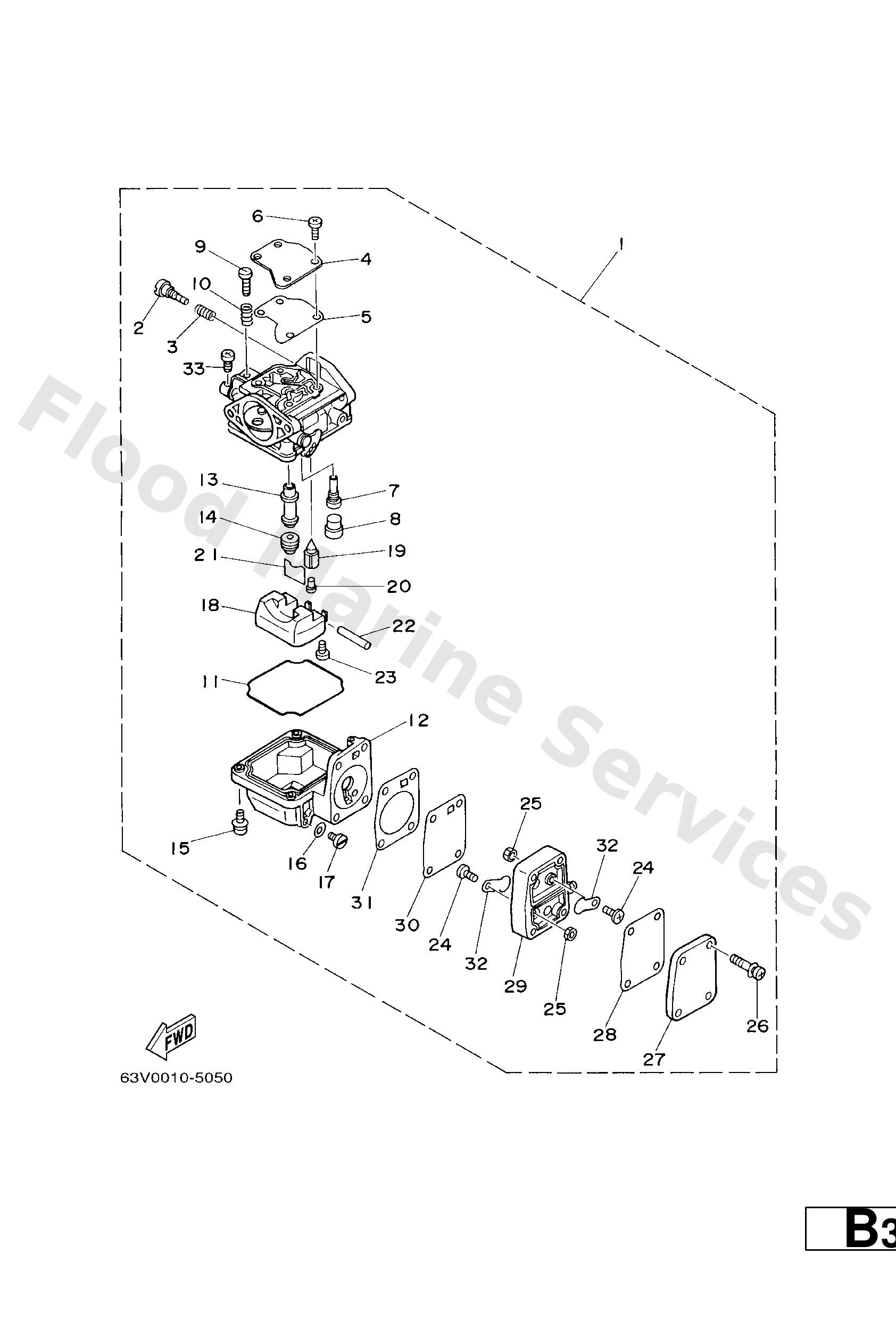

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
63V--14301--00
Carburetor assembly 1
Loading…
↗
2
679--14923--00
Screw, pilot
Loading…
↗
3
679--14555--00
Spring
Loading…
↗
4
63V--14527--00
Plate
Loading…
↗
5
63V--14126--00
Gasket
Loading…
↗
6
97803--04010
Screw, pan head (e56)
Loading…
↗
7
63V--14948--06
Jet (#48)
Loading…
↗
8
679--14966--00
Rubber cap
Loading…
↗
9
63V--14523--00
Screw, stop
Loading…
↗
10
90501--10326
Spring coil(663)(carb)
Loading…
↗
11
63V--14984--00
Gasket, float chamber
Loading…
↗
12
63V--14980--00
Body, float chamber
Loading…
↗
13
63V--14947--00
Jet, needle
Loading…
↗
14
676--14943--29
Jet, main (#110)
Loading…
↗
15
97980--04114
Screw, pan head(ga5)
Loading…
↗
16
6G1--14398--00
Washer
Loading…
↗
17
6G1--14992--00
Screw, drain
Loading…
↗
18
63V--14985--00
Float
Loading…
↗
19
6G1--14546--00
Valve, needle
Loading…
↗
20
676--14186--00
Pin, valve
Loading…
↗
21
663--14159--00
Clip
Loading…
↗
22
6H4--14548--00
Pin, float arm
Loading…
↗
23
98580--04008
Screw, pan head (713)
Loading…
↗
24
98980--03006
Screw, bind(6g1)
Loading…
↗
25
95380--03600
Nut (6g8)
Loading…
↗
26
97980--04125
Screw, with washer
Loading…
↗
27
6G1--24452--00
Cover, pump
Loading…
↗
28
63V--24411--00
Diaphragm
Loading…
↗
29
6G1--24412--01
Body 1
Loading…
↗
30
6G1--24411--00
Diaphragm
Loading…
↗
31
6G1--24431--01
Gasket, fuel pump 1
Loading…
↗
32
6L5--24421--00
Valve, check
Loading…
↗
33
98580--04006
Screw, pan head (7h3)
Loading…
↗
