Yamaha Outboard Parts - CARBURETOR - 200FETO (2006) | Flood Marine

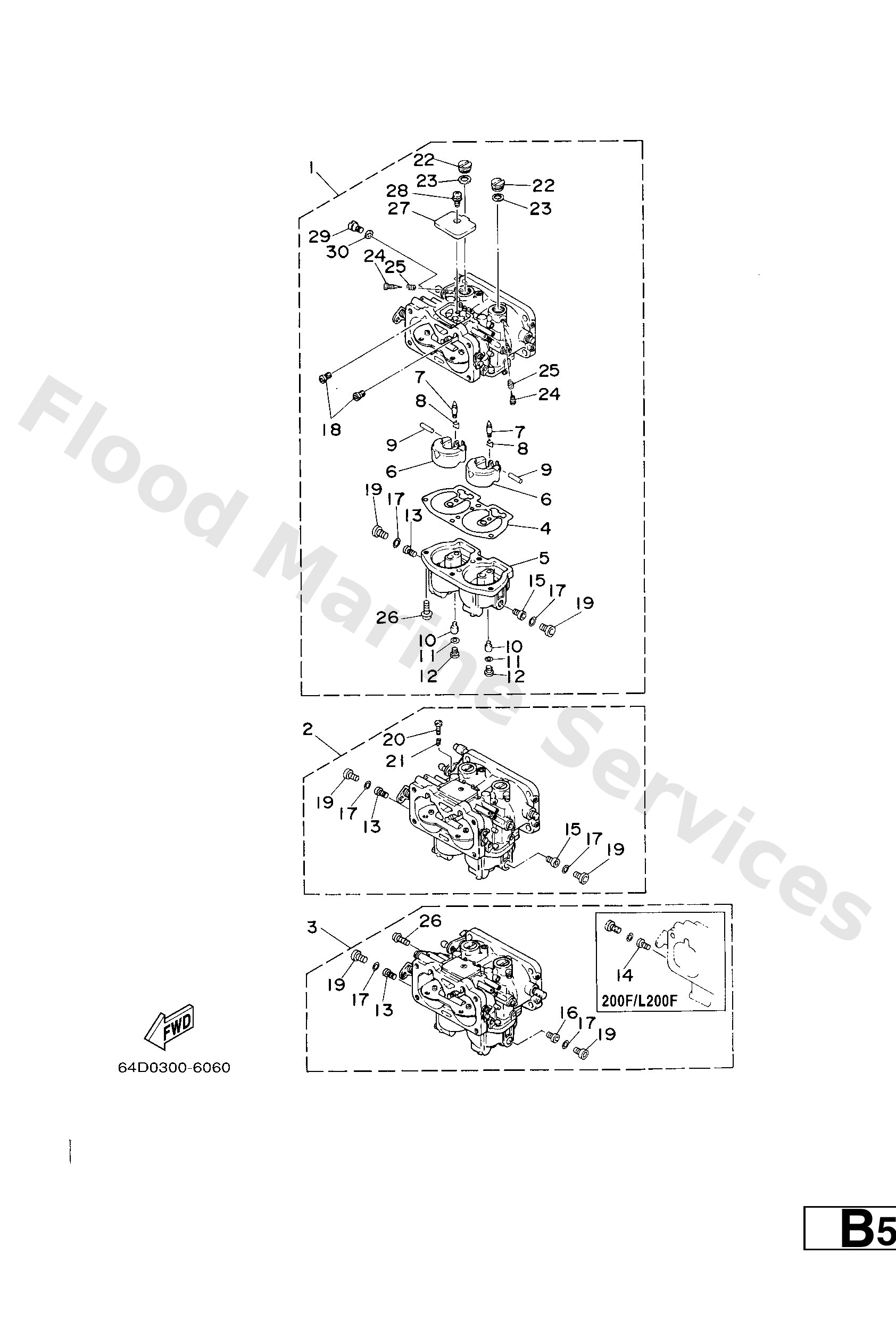

Diagram: CARBURETOR

Diagram

Parts List

Reference
Description
Price


1
64E1430102
Carburetor assembly 1 (64e-03)
Loading…

↗
1
64C1430102
Carburetor assembly 1
Loading…

↗
2
64C1430202
Carburetor assembly 2
Loading…

↗
2
64E1430202
Carburetor assembly 2
Loading…

↗
3
64C1430302
Carburetor assembly 3 (64c-03)
Loading…

↗
3
64E1430302
Carburetor assembly 3
Loading…

↗
4
64D1438401
Gasket, float chamber
Loading…

↗
5
64D1438100
Body, float chamber
Loading…

↗
6
6E51438502
Float
Loading…

↗
7
6E51454600
Valve, needle
Loading…

↗
8
6E51415900
Clip
Loading…

↗
9
6E51438602
Pin, float
Loading…

↗
10
64D1492F42
Jet, air slow
Loading…

↗
11
61U1495900
Gasket
Loading…

↗
12
64D1439400
Valve, drain
Loading…

↗
13
64D1492E75
Jet, main
Loading…

↗
14
64D1492E76
Jet, main
Loading…

↗
15
64D1492E77
Jet, main
Loading…

↗
16
64D1492E79
Jet, main
Loading…

↗
17
6E51439801
Gasket
Loading…

↗
18
61A1492H12
Jet, slow air (#60)
Loading…

↗
19
61A1438301
Screw, drain
Loading…

↗
20
6E51432100 #2
Screw, throttle
Loading…

↗
21
6J81433400 #2
Spring, throttle
Loading…

↗
22
6E51432801
Plug
Loading…

↗
23
6E51497900
Gasket
Loading…

↗
24
6E51432303
Screw, air adjusting
Loading…

↗
25
6E51422300
Spring, air adjusting
Loading…

↗
26
9798005116
Screw, pan head
Loading…

↗
27
6E51452701
Plate
Loading…

↗
28
9798005108
Screw, with washer
Loading…

↗
29
6E51432400
Screw, flat head
Loading…

↗
30
6J81495900
Gasket, drin screw
Loading…

↗
