200GETO (2002)
CARBURETOR

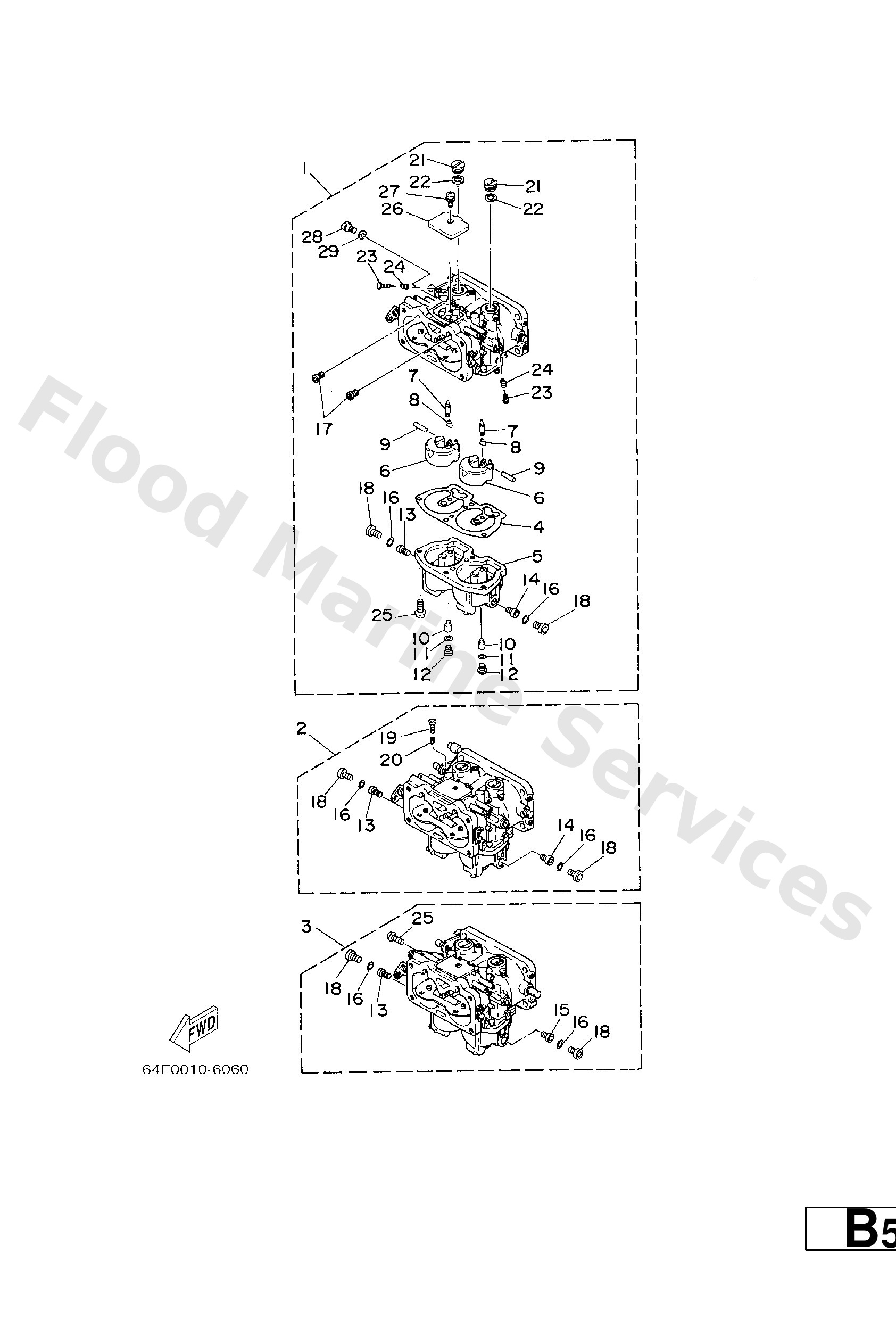

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
64F1430101
Carburetor assembly 1
Loading…
↗
2
64F1430201
Carburetor assembly 2
Loading…
↗
3
64F1430301
Carburetor assembly 3
Loading…
↗
4
64D--14384--01
Gasket, float chamber
Loading…
↗
5
64D--14381--00
Body, float chamber
Loading…
↗
6
6E5--14385--02
Float
Loading…
↗
7
6E5--14546--00
Valve, needle
Loading…
↗
8
6E5--14159--00
Clip
Loading…
↗
9
6E5--14386--02
Pin, float
Loading…
↗
10
64D1492F40
Jet, air slow
Loading…
↗
11
61U--14959--00
Gasket
Loading…
↗
12
64D--14394--00
Valve, drain
Loading…
↗
13
64D--1492E--75
Jet, main
Loading…
↗
14
64D--1492E--77
Jet, main
Loading…
↗
15
64D--1492E--79
Jet, main
Loading…
↗
16
6E5--14398--01
Gasket
Loading…
↗
17
61A--1492H--12
Jet, slow air (#60)
Loading…
↗
18
61A--14383--01
Screw, drain
Loading…
↗
19
6E5--14321--00
#2
Screw, throttle
Loading…
↗
20
6J8--14334--00
#2
Spring, throttle
Loading…
↗
21
6E5--14328--01
Plug
Loading…
↗
22
6E5--14979--00
Gasket
Loading…
↗
23
6E5--14323--03
Screw, air adjusting
Loading…
↗
24
6E5--14223--00
Spring, air adjusting
Loading…
↗
25
97980--05116
Screw, pan head
Loading…
↗
26
6E5--14527--01
Plate
Loading…
↗
27
97980--05108
Screw, with washer
Loading…
↗
28
6E5--14324--00
Screw, flat head
Loading…
↗
29
6J8--14959--00
Gasket, drin screw
Loading…
↗
