20DMHO (2002)
CARBURETOR

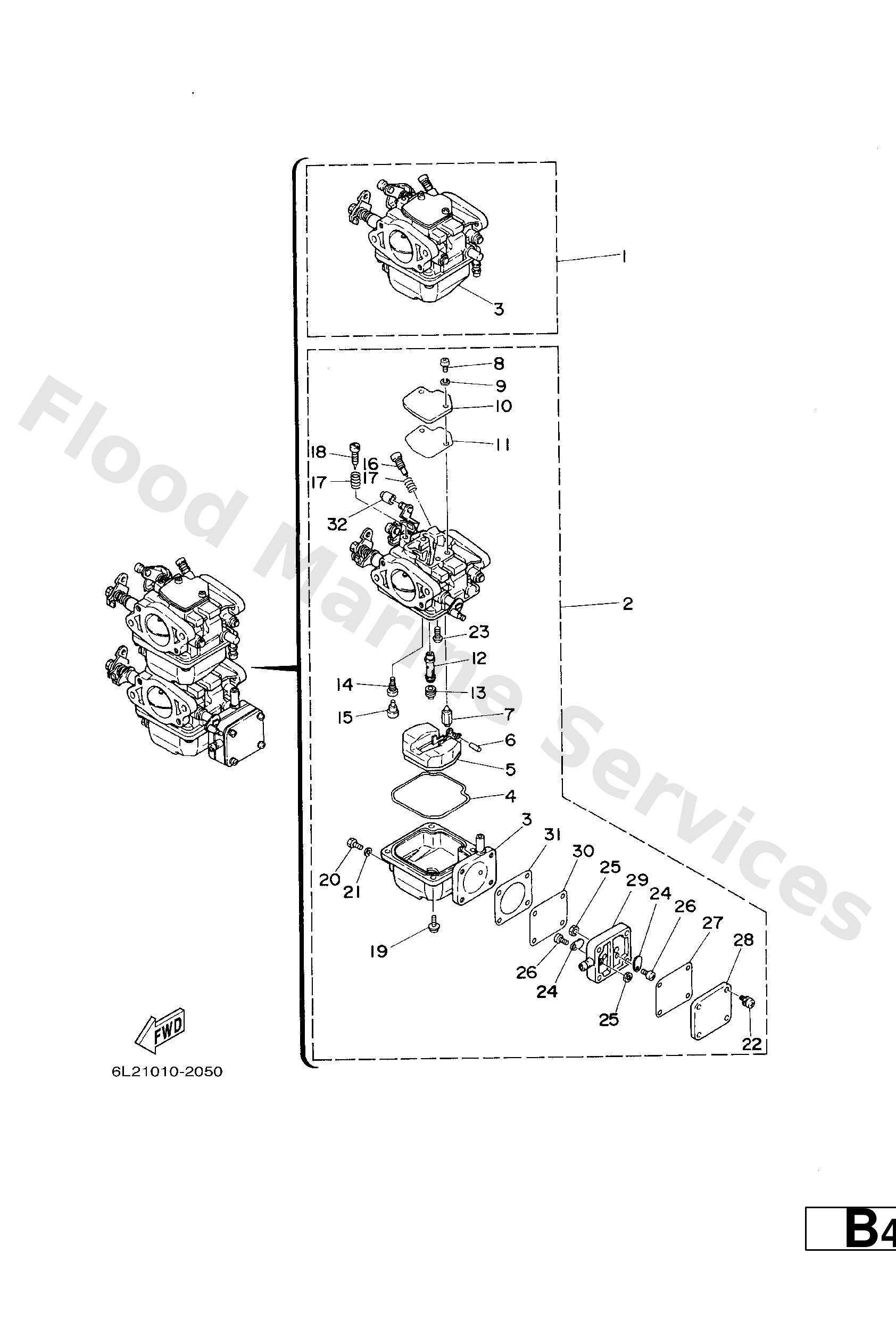

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
6L3−14301−00
#1
Carburetor assembly 1
Loading…
↗
1
6L2−14301−01
#1
Carburetor assembly 1
Loading…
↗
2
6L2−14302−01
#2
Carburetor assembly 2
Loading…
↗
2
6L3−14302−00
#2
Carburetor assembly 2
Loading…
↗
3
6L2−14381−00
#1
Body, float chamber
Loading…
↗
3
6L2−14383−00
#2
Body, float chamber
Loading…
↗
4
6L2−14384−00
Gasket, float chamber
Loading…
↗
5
6L2−14385−00
Float
Loading…
↗
6
6E5−14386−01
Pin, float
Loading…
↗
7
6L2−14392−00
Valve, needle
Loading…
↗
8
97880−04010
Screw, pan head (e56)
Loading…
↗
9
92900−04100
Ybs67-4 washer, spring
Loading…
↗
10
6L2−14157−00
Cover, mixing
Loading…
↗
11
6L2−14399−00
Gasket
Loading…
↗
12
6L2−14341−00
Nozzle, main
Loading…
↗
13
30X−14343−63
Jet, main
Loading…
↗
14
6L2−14342−30
Jet, pilot (#60)
Loading…
↗
15
50M−14355−00
Plug
Loading…
↗
16
6L2−14323−00
Screw, air adjusting
Loading…
↗
17
646−14212−01
Spring, pilot adjusting
Loading…
↗
18
664−14321−01
Screw, throttle
Loading…
↗
19
97980−04112
Screw, pan head (686)
Loading…
↗
20
677−14383−00
Screw, drain
Loading…
↗
21
6L2−14398−00
Gasket
Loading…
↗
22
677−24444−01
Screw
Loading…
↗
23
98980−04006
Screw, bind(6l2)
Loading…
↗
24
6A0−24421−01
Valve, check
Loading…
↗
25
95380−03600
Nut (6g8)
Loading…
↗
26
6E7−14325−00
Screw, pan head
Loading…
↗
27
6L2−24435−00
Gasket, body 2
Loading…
↗
28
6L2−24413−00
Body 2
Loading…
↗
29
682−24412−01
Body, pump
Loading…
↗
30
677−24411−02
Diaphragm
Loading…
↗
31
677−24434−02
Gasket, pump 1
Loading…
↗
32
6L2−14578−00
#2
Collar & stopper set
Loading…
↗
