250AETO (2003)
CARBURETOR

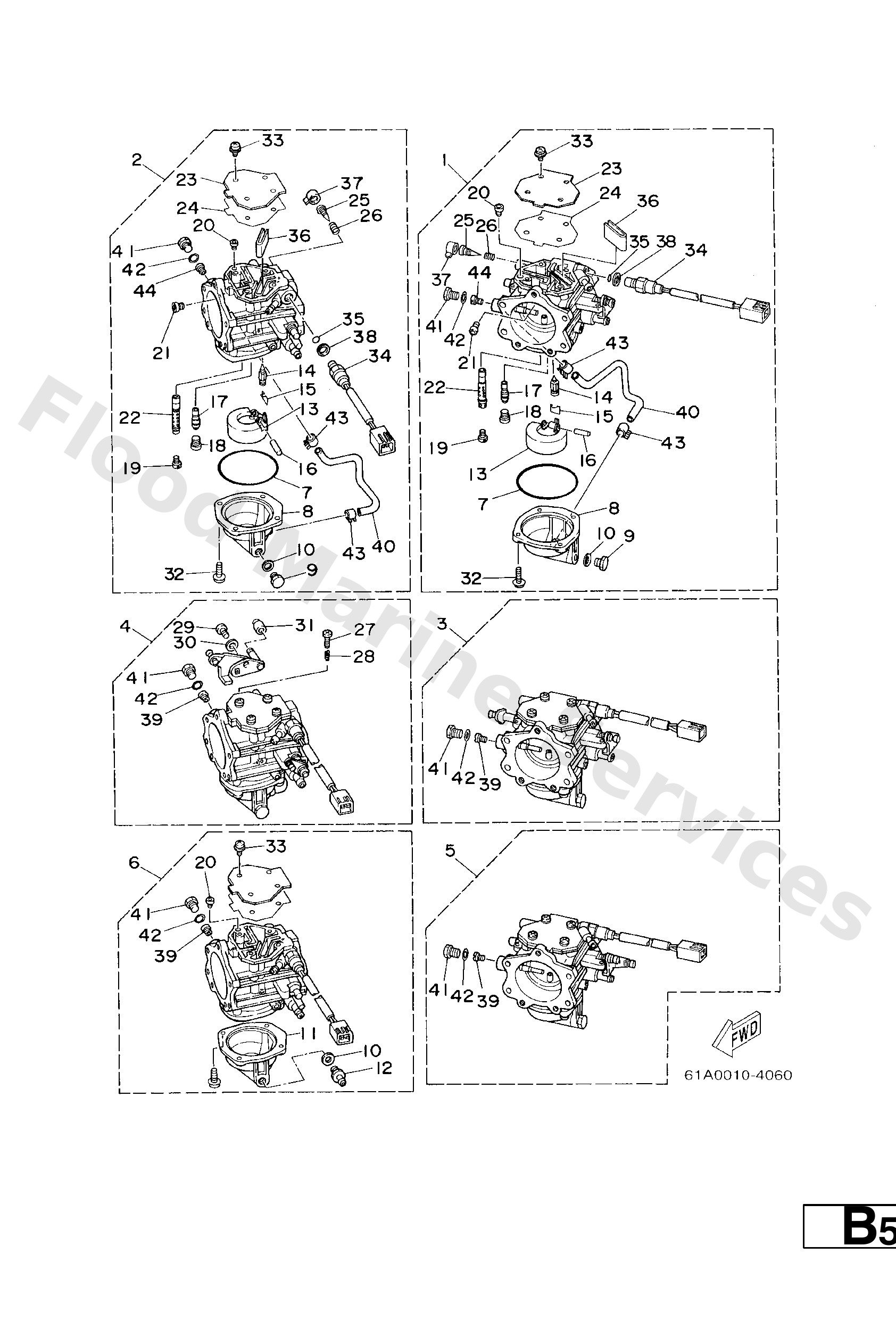

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
61A−14100−06
Carburetor assembly 1
Loading…
↗
2
61A−14301−06
Carburetor assembly 2
Loading…
↗
3
61A−14101−06
Carburetor assembly 3
Loading…
↗
4
61A−14302−06
Carburetor assembly 2
Loading…
↗
5
61A−14102−06
Carburetor assembly 5
Loading…
↗
6
61A−14303−06
Carburetor assembly 6
Loading…
↗
7
61A−14384−00
Gasket, float chamber
Loading…
↗
8
61A−14381−11
#1,2,3,4,5
Body, Float Chamber
Loading…
↗
9
61A−14383−01
#1,2,3,4,5
Screw, drain
Loading…
↗
10
61A−14995−00
Gasket
Loading…
↗
11
61A−14381−01
#6
Body, Float Chamber
Loading…
↗
12
61A−14383−10
#6
Screw, Drain
Loading…
↗
13
61A−14385−00
Float
Loading…
↗
14
6E5−14546−00
Valve, needle
Loading…
↗
15
6E5−14159−00
Clip
Loading…
↗
16
61A−14386−00
Pin, Float
Loading…
↗
17
61A−1492F−50
Jet, air slow (#100)
Loading…
↗
18
61A−14394−00
Valve, Drain
Loading…
↗
19
62J−1492E−81
#1,2,4,6
Jet, Main (#162)
Loading…
↗
19
62J−1492E−80
#3,5
Jet, Main (#160)
Loading…
↗
20
61A−1492G−52
Jet, Main Air Bleed (#260)
Loading…
↗
21
61A−1492H−14
Jet,Slowair Bleed (#70)
Loading…
↗
22
61A−1492A−01
Nozzle, main
Loading…
↗
23
61A−14527−00
Plate
Loading…
↗
24
61A−14959−00
Gasket
Loading…
↗
25
6E5−14323−03
Screw, air adjusting
Loading…
↗
26
6E5−14223−00
Spring, air adjusting
Loading…
↗
27
6E5−14321−00
#4
Screw, throttle
Loading…
↗
28
6J8−14334−00
#4
Spring, throttle
Loading…
↗
29
6J8−14592−01
#4
Screw
Loading…
↗
30
92990−05600
#4
Washer, plain (646)
Loading…
↗
31
6J8−14578−00
#4
Collar
Loading…
↗
32
97980−05116
Screw, pan head
Loading…
↗
33
97980−05108
Screw, with washer
Loading…
↗
34
61A−86120−00
Solenoid valve assembly
Loading…
↗
35
61A−14561−00
O-ring
Loading…
↗
36
61A−14163−00
Spacer
Loading…
↗
37
61A−14118−00
Cap
Loading…
↗
38
61A−14198−00
Gasket
Loading…
↗
39
61A−1492E−5H
#3,4,5,6
Jet, Main (#115)
Loading…
↗
40
61A−14298−00
Pipe
Loading…
↗
43
90465−11M10
Clamp
Loading…
↗
44
61A−1492E−5C
#1,2
Jet ,Main (#105)
Loading…
↗
