25BMH (2003)
CARBURETOR

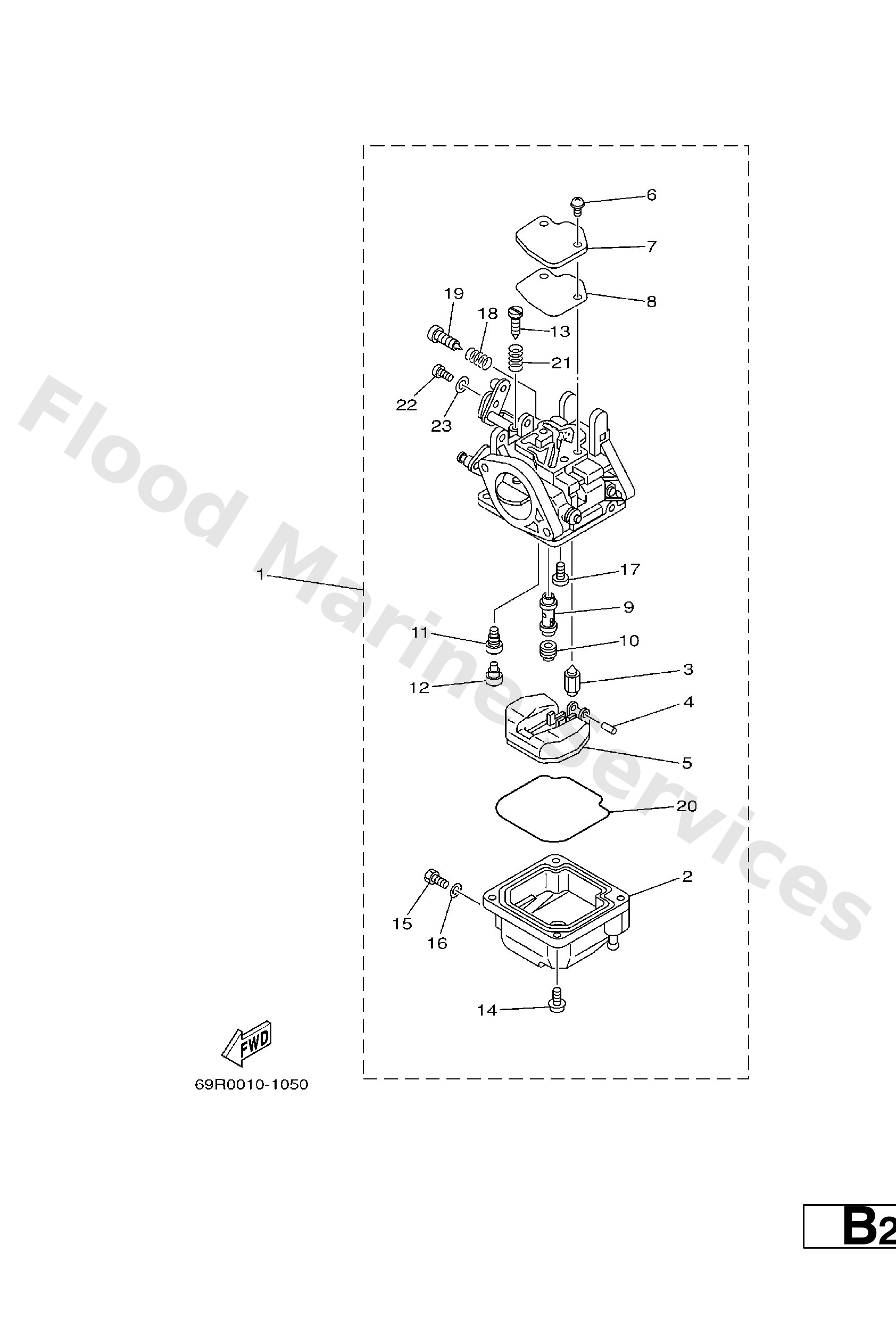

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
69P−14301−00
Carburetor assembly 1
Loading…
↗
2
61N−14381−00
Body, float chamber
Loading…
↗
3
61N−14392−00
Valve, needle
Loading…
↗
4
6E5−14386−01
Pin, float
Loading…
↗
5
6L2−14385−00
Float
Loading…
↗
6
97980−04110
Screw, pan head (e56)
Loading…
↗
7
6L2−14157−00
Cover, mixing
Loading…
↗
8
6L2−14399−00
Gasket
Loading…
↗
9
61N−14341−00
Nozzle, main
Loading…
↗
10
61N−14343−65
Jet, main (#130)
Loading…
↗
11
6L2−14342−34
Jet, pilot (# 68)
Loading…
↗
12
50M−14355−00
Plug
Loading…
↗
13
664−14321−01
Screw, throttle
Loading…
↗
14
97980−04112
Screw, pan head (686)
Loading…
↗
15
677−14383−01
Screw, drain
Loading…
↗
16
6L2−14398−00
Gasket
Loading…
↗
17
98980−04006
Screw, bind(6l2)
Loading…
↗
18
646−14212−01
Spring, pilot adjusting
Loading…
↗
19
61N−14323−00
Screw, air adjusting
Loading…
↗
20
6L2−14384−00
Gasket, float chamber
Loading…
↗
21
61N−14212−00
Spring, pilot adjusting
Loading…
↗
22
97890−05006
Screw,panhead (eg9)
Loading…
↗
23
62Y−14597−00
Washer
Loading…
↗
