25BMH (2004)
CARBURETOR

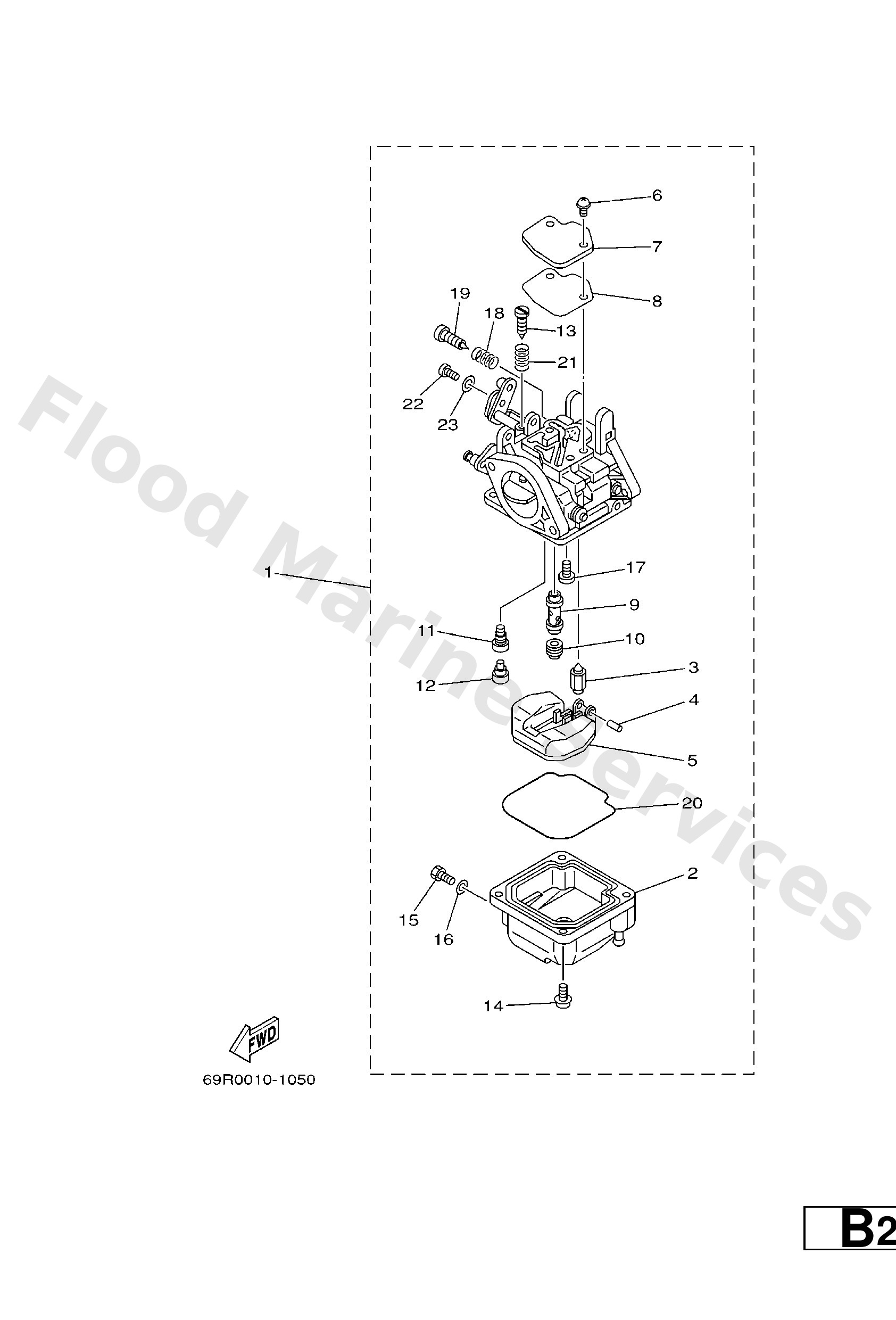

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
69P1430100
Carburetor assembly 1
Loading…
↗
2
61N1438100
Body, float chamber
Loading…
↗
3
61N1439200
Valve, needle
Loading…
↗
4
6E51438601
Pin, float
Loading…
↗
5
6L21438500
Float
Loading…
↗
6
9798004110
Screw, pan head (e56)
Loading…
↗
7
6L21415700
Cover, mixing
Loading…
↗
8
6L21439900
Gasket
Loading…
↗
9
61N1434100
Nozzle, main
Loading…
↗
10
61N1434365
Jet, main (#130)
Loading…
↗
11
6L21434234
Jet, pilot (# 68)
Loading…
↗
12
50M1435500
Plug
Loading…
↗
13
6641432101
Screw, throttle
Loading…
↗
14
9798004112
Screw, pan head (686)
Loading…
↗
15
6771438301
Screw, drain
Loading…
↗
16
6L21439800
Gasket
Loading…
↗
17
9898004006
Screw, bind(6l2)
Loading…
↗
18
6461421201
Spring, pilot adjusting
Loading…
↗
19
61N1432300
Screw, air adjusting
Loading…
↗
20
6L21438400
Gasket, float chamber
Loading…
↗
21
61N1421200
Spring, pilot adjusting
Loading…
↗
22
9789005006
Screw,panhead (eg9)
Loading…
↗
23
62Y1459700
Washer
Loading…
↗
