2BMH (2002)
CARBURETOR

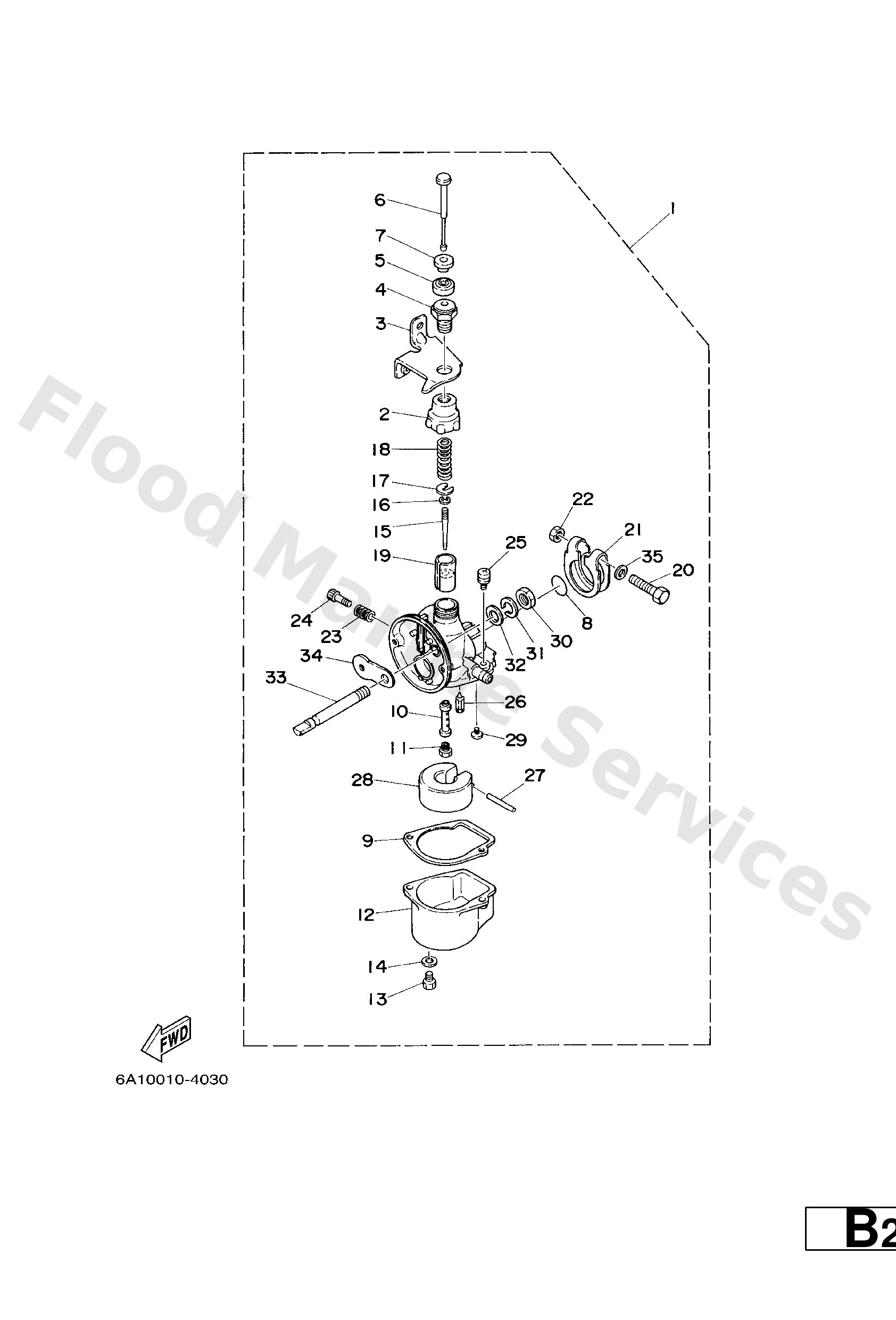

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
6A11430103
Carburetor assembly 1
Loading…
↗
2
6461415800
Top, mixing chamber
Loading…
↗
3
6A11449700
Stay, throttle wire
Loading…
↗
4
6461432100
Screw, throttle
Loading…
↗
5
6461416900
-
Loading…
↗
6
6A11431400
Bar, throttle
Loading…
↗
7
6A11416300
Spacer
Loading…
↗
8
6461422901
O-ring
Loading…
↗
9
6A11438400
Gasket, float chamber
Loading…
↗
10
6A11434101
Nozzle, main
Loading…
↗
11
6A11434348
Jet, Main (# 96)
Loading…
↗
12
6A11438102
Body, float chamber
Loading…
↗
13
97890--05006
Screw,panhead (eg9)
Loading…
↗
14
646--14198--01
Gasket
Loading…
↗
15
6A11411610
3−
Loading…
↗
16
6461413700
Clip
Loading…
↗
17
6461413600
Seat, spring
Loading…
↗
18
6461433101
Spring,throttle valve
Loading…
↗
19
6461431208
Valve, throttle
Loading…
↗
20
6A11412501
-
Loading…
↗
21
6A11412701
Clip
Loading…
↗
22
6A11435801
Nut
Loading…
↗
23
6A11421200
-
Loading…
↗
24
6461421102
Screw, pilot adjusting
Loading…
↗
25
97980--04110
Screw, pan head (e56)
Loading…
↗
26
6A11439200
Valve, needle
Loading…
↗
27
6A1--14386--00
Pin, float
Loading…
↗
28
6A11438500
Float
Loading…
↗
29
98580--03005
Screw, pan head(78g)
Loading…
↗
30
6461435800
Nut
Loading…
↗
31
6A11435600
Washer
Loading…
↗
32
6461435700
Washer
Loading…
↗
33
6A11444800
Lever, choke valve
Loading…
↗
34
6A11421701
3−
Loading…
↗
35
92990--05600
Washer, plain (646)
Loading…
↗
