30DMHO (2015)
CARBURETOR

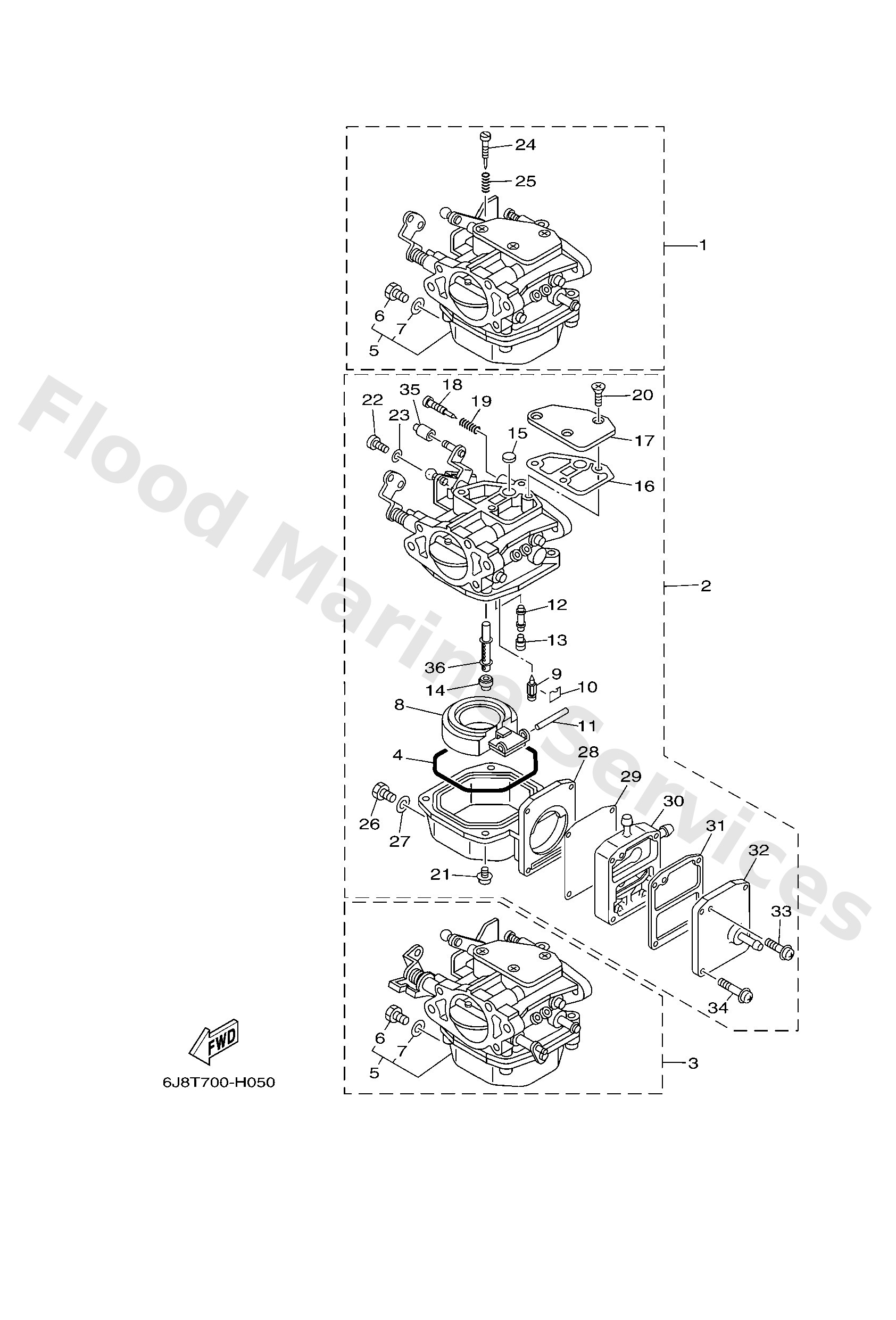

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
6J81430112
Carburetor assembly 1
Loading…
↗
2
6J81430202
Carburetor assembly 2
Loading…
↗
3
6J81430302
Carburetor assembly 3
Loading…
↗
4
6J81498410
Gasket, float chamber
Loading…
↗
5
6J81498010
#1,3
Body, float chamber
Loading…
↗
26
6E51438301
#2
Screw, drain
Loading…
↗
27
6J81499500
#2
Gasket, drin screw
Loading…
↗
8
6J81498510
Float
Loading…
↗
9
6E51454600
Valve, needle
Loading…
↗
10
6J81415900
Clip
Loading…
↗
11
6E51438601
Pin, float
Loading…
↗
12
6J81492F24
Jet, air slow
Loading…
↗
13
6J81496600
Plug
Loading…
↗
14
6J81492E4K
Jet, main
Loading…
↗
15
6J81412600
Plug
Loading…
↗
16
6J81495910
Gasket
Loading…
↗
17
6J81452710
Plate
Loading…
↗
18
6J81492300
Screw, pilot
Loading…
↗
19
6E51422300
Spring, air adjusting
Loading…
↗
20
9798004108
Screw, with washer(6m6)
Loading…
↗
21
9798004112
Screw, pan head (686)
Loading…
↗
22
6J81459201
Screw
Loading…
↗
23
9299005600
Washer, plain (646)
Loading…
↗
24
6J81452300
#1
Screw, stop
Loading…
↗
25
6J81433400
#1
Spring, throttle
Loading…
↗
28
6J81498110
#2
Body, float chamber
Loading…
↗
29
6J82447100
#2
Diaphragm
Loading…
↗
30
6J82441500
#2
Body comp (with valve)
Loading…
↗
31
6J82443200
#2
Gasket, fuel pump 2
Loading…
↗
32
6J82445200
#2
Cover
Loading…
↗
33
9798003122
#2
Screw, with washer(6j8)
Loading…
↗
34
9798004124
#2
Screw, with washer(6j8)
Loading…
↗
35
6J81457800
#2
Collar
Loading…
↗
36
6J81492A00
Nozzle, main
Loading…
↗
