40XMH (2008)
CARBURETOR

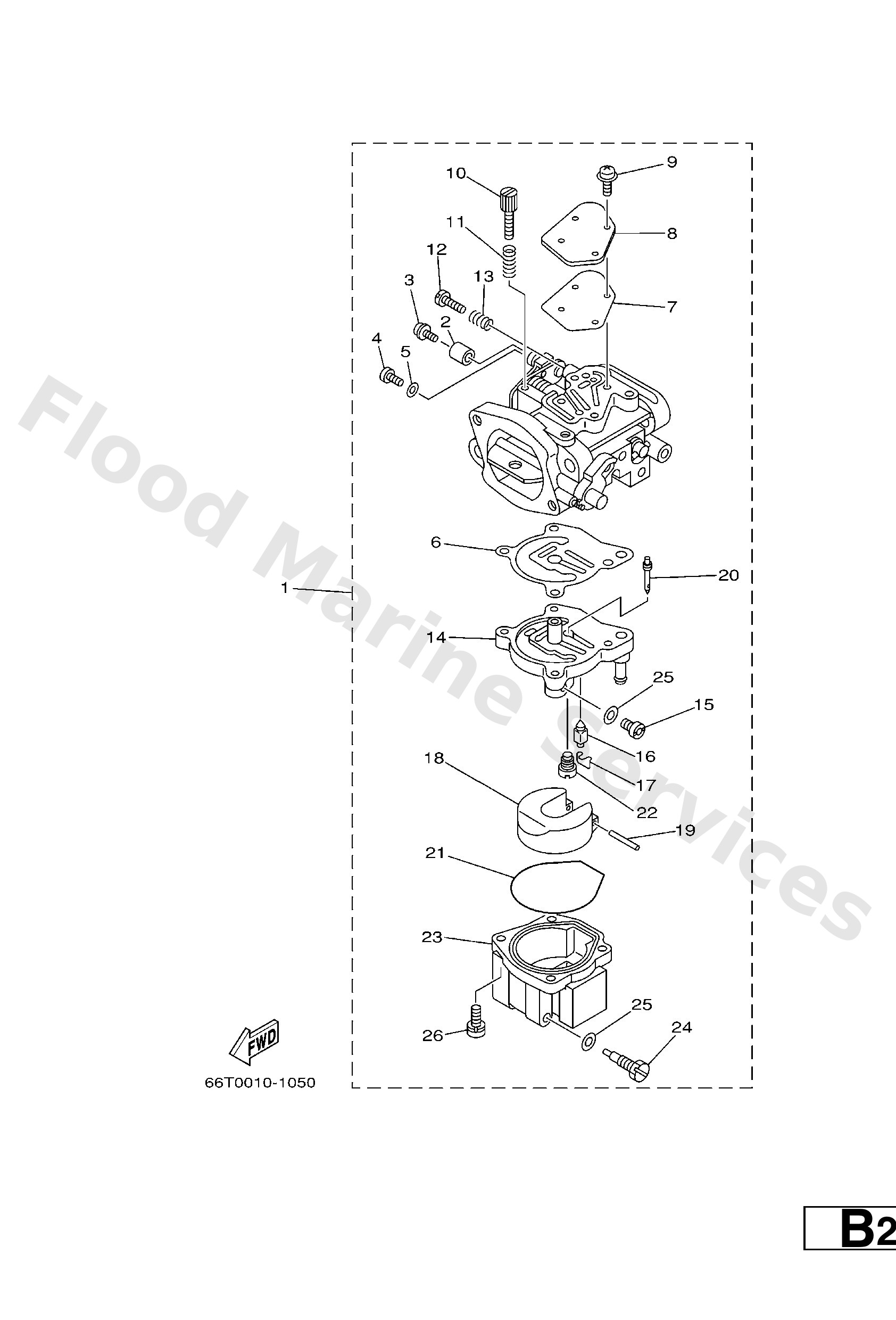

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
66T1430102
Carburetor assembly 1
Loading…
↗
2
66T1457800
Collar
Loading…
↗
3
66T1458400
Stopper
Loading…
↗
4
6J81459201
Screw
Loading…
↗
5
9299005600
Washer, plain (646)
Loading…
↗
6
66T1438401
Gasket, float chamber
Loading…
↗
7
66T1453601
Gasket
Loading…
↗
8
66T1452700
Plate
Loading…
↗
9
9798004112
Screw, pan head (686)
Loading…
↗
10
66T1452300
Screw, stop
Loading…
↗
11
6J81433400
Spring, throttle
Loading…
↗
12
6E51432303
Screw, air adjusting
Loading…
↗
13
6E51422300
Spring, air adjusting
Loading…
↗
14
66T1494502
Spacer assembly (#38)
Loading…
↗
15
61A1492E85
Jet, main (#170)
Loading…
↗
16
6E51454600
Valve, needle
Loading…
↗
17
6E51415900
Clip
Loading…
↗
18
6E51438502
Float
Loading…
↗
19
6E51438602
Pin, float
Loading…
↗
20
66T1492F35
Jet, air slow (#70)
Loading…
↗
21
66T1498400
Gasket, float chamber
Loading…
↗
22
66T1499200
Plug
Loading…
↗
23
66T1498100
Body, float chamber
Loading…
↗
24
66T1499100
Plug, drain
Loading…
↗
25
66T1495900
Gasket
Loading…
↗
26
9798005125
Screw, panhead (a93)
