75AET (2002)
CARBURETOR

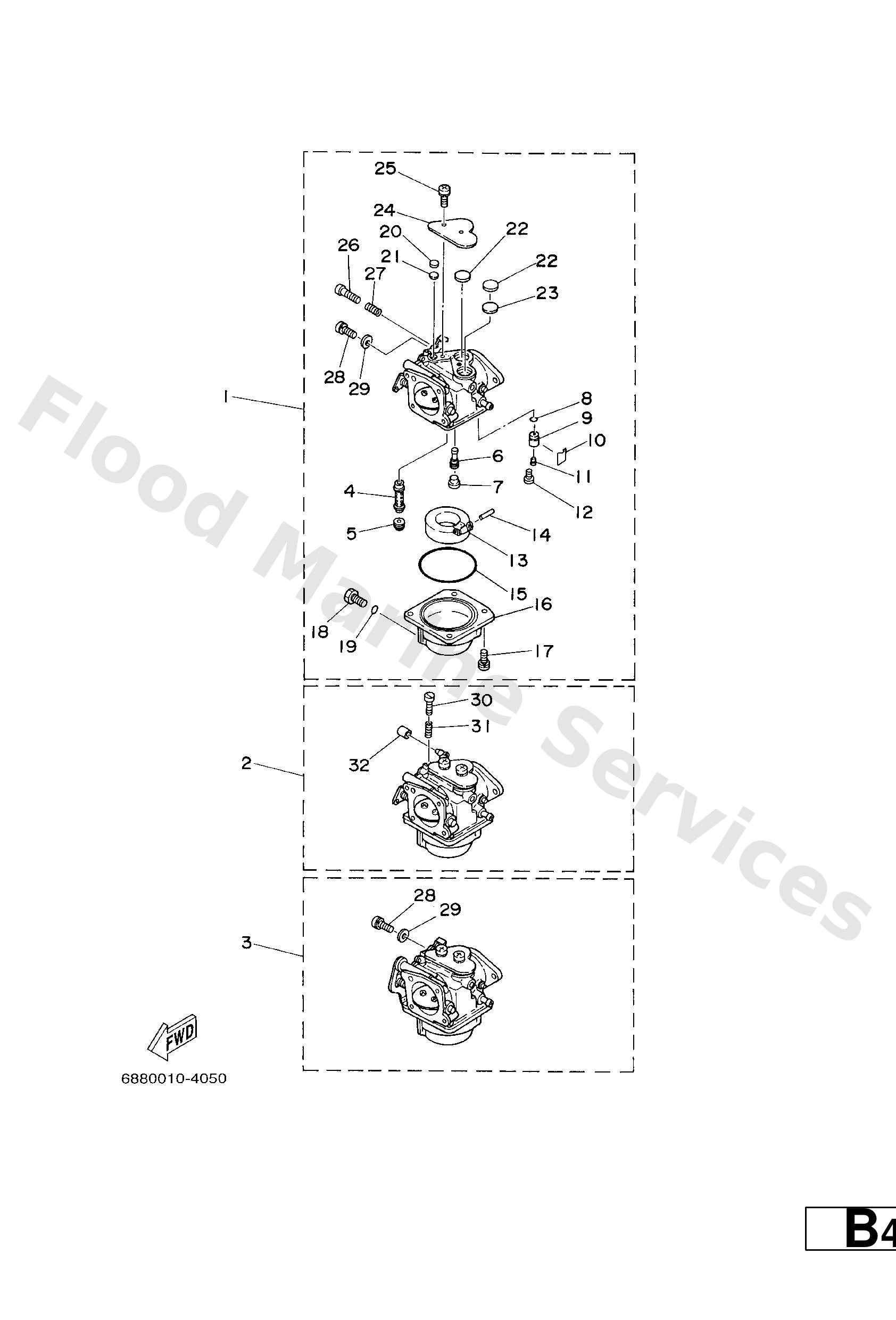

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
6921430134
75A
Carburetor assembly
Loading…
↗
1
6881430114
85A
Carburetor assembly 1
Loading…
↗
2
6921430234
75A
-
Loading…
↗
2
6881430214
85A
Carburetor assembly 2
Loading…
↗
3
6881430314
85A
Carburetor assembly 3
Loading…
↗
3
6921430334
75A
Carburetor assembly 3
Loading…
↗
4
6881494700
85A
Nozzle, main
Loading…
↗
4
6921494710
75A
Jet, Needle
Loading…
↗
5
6761494340
85A
Jet, main (#165)
Loading…
↗
5
6761494339
75A
Jet, main (#160)
Loading…
↗
6
6761494819
75A
Jet, slow (#80)
Loading…
↗
6
6761494818
85A
Jet, slow (#78)
Loading…
↗
7
676--14966--00
Rubber cap
Loading…
↗
8
93210--04228
O-ring (371)
Loading…
↗
9
6921459000
Needle valve assembly
Loading…
↗
10
663--14159--00
Clip
Loading…
↗
11
676--14186--00
Pin, valve
Loading…
↗
12
98580--04008
Screw, pan head (713)
Loading…
↗
13
6761498501
Float comp
Loading…
↗
14
688--14548--00
Pin, arm
Loading…
↗
15
6761498400
Gasket, float chamber
Loading…
↗
16
6881498000
Body, float chamber
Loading…
↗
17
97980--04114
Screw, pan head(ga5)
Loading…
↗
18
6H3--14992--00
Screw, drain
Loading…
↗
19
93210--04230
O-ring (371)
Loading…
↗
20
663--14126--00
Packing
Loading…
↗
21
663--14527--00
Plate
Loading…
↗
22
688--14126--00
Packing
Loading…
↗
23
688--14527--00
Plate
Loading…
↗
24
6881457201
Seal
Loading…
↗
25
97980--05310
Screw, with washer(6k5)
Loading…
↗
26
692--14923--00
Screw, adjusting
Loading…
↗
27
679--14555--00
Spring
Loading…
↗
28
6K5--14592--00
85A−#1,3
Screw
Loading…
↗
28
6631459200
75A−#1,3
Screw
Loading…
↗
29
90201--05652
#1,3
Washer, plate(65j)
Loading…
↗
30
63V--14523--00
#2
Screw, stop
Loading…
↗
31
90501--10326
#2
Spring coil(663)(carb)
Loading…
↗
32
6H2--14578--00
#2
Collar
Loading…
↗
