75CETO (2004)
CARBURETOR

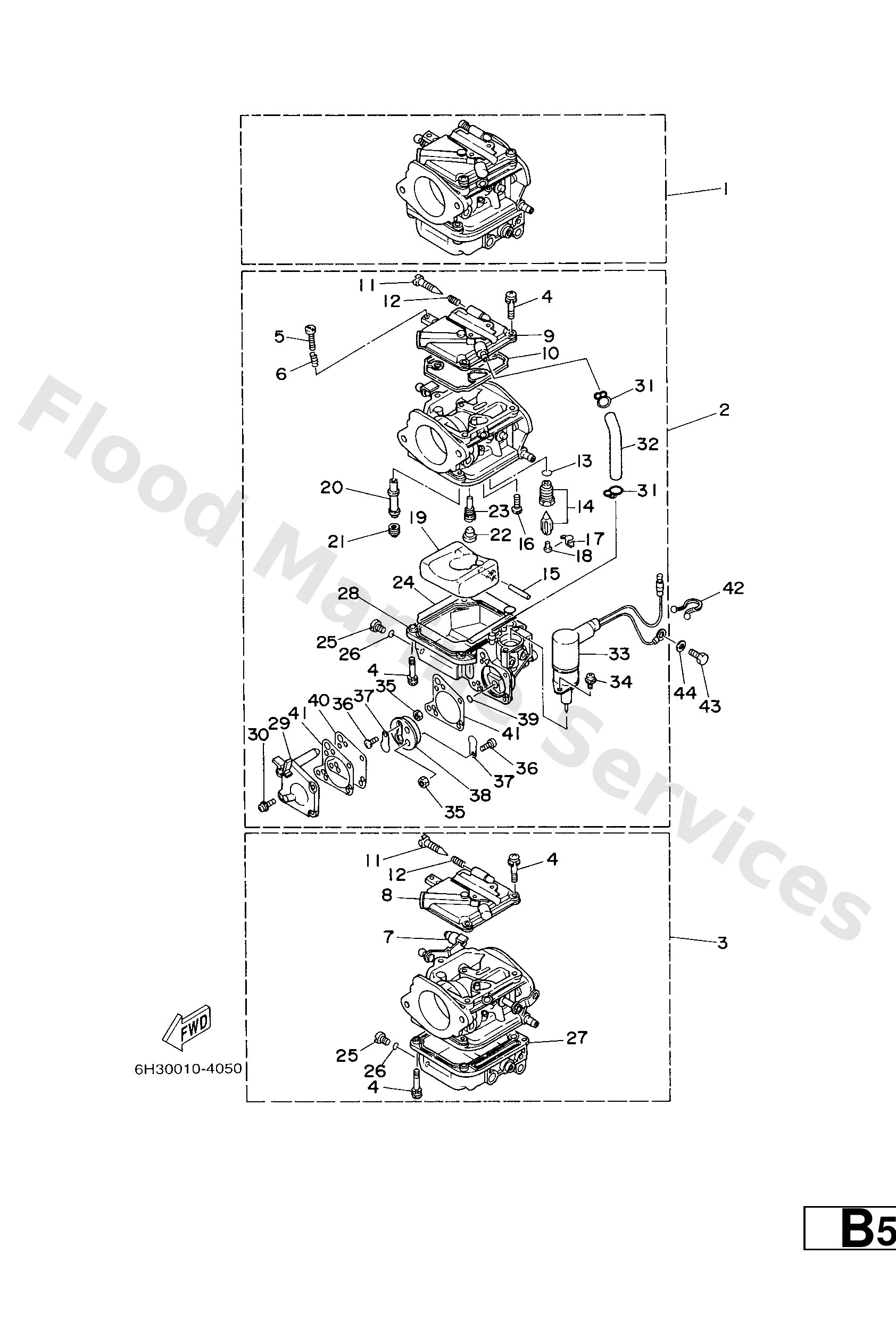

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
6H01430107
Carburetor assembly 1
Loading…
↗
1
6H11430107
Carburetor assembly 1
Loading…
↗
2
6H01430207
Carburetor assembly 2
Loading…
↗
2
6H11430207
Carburetor assembly 2
Loading…
↗
3
6H11430307
Carburetor assembly 3
Loading…
↗
3
6H01430307
Carburetor assembly 3
Loading…
↗
4
9798004114
Screw, pan head(ga5)
Loading…
↗
5
63V1452300
#2
Screw, stop
Loading…
↗
6
9050110326
#2
Spring coil(663)(carb)
Loading…
↗
7
6H21457800
#3
Collar
Loading…
↗
8
6H41414600
#1,3
Plate
Loading…
↗
9
6H31414610
#2
Plate
Loading…
↗
10
6H41414700
O-ring
Loading…
↗
11
6921492300
Screw, adjusting
Loading…
↗
12
6971455500
Spring
Loading…
↗
13
9321004228
O-ring (371)
Loading…
↗
14
6921459001
Needle valve assembly
Loading…
↗
15
6H41454800
Pin, float arm
Loading…
↗
16
9858004008
Screw, pan head (713)
Loading…
↗
17
6631415900
Clip
Loading…
↗
18
6761418600
Pin, valve
Loading…
↗
19
6H41498501
Float
Loading…
↗
20
6H11494775
Jet, needle
Loading…
↗
21
6H11494339
Jet, main (#160)
Loading…
↗
22
6761496600
Rubber cap
Loading…
↗
23
6H11494818
Jet (#78)
Loading…
↗
24
6H41498400
Gasket, float chamber
Loading…
↗
25
6H31499200
Screw, drain
Loading…
↗
26
9321004230
O-ring (371)
Loading…
↗
27
6H41498000
#1,3
Body, float chamber
Loading…
↗
28
6H31498010
#2
Body, float chamber
Loading…
↗
29
6H32445210
#2
Cover
Loading…
↗
30
6H41456700
#2
Screw
Loading…
↗
31
6H31413700
#2
Clip
Loading…
↗
32
6H31434900
#2
Pipe
Loading…
↗
33
6H31438000
#2
Prime starter assembly
Loading…
↗
34
9780304010
#2
Screw, pan head (e56)
Loading…
↗
35
9538003600
#2
Nut (6g8)
Loading…
↗
36
9898003006
#2
Screw, bind(6g1)
Loading…
↗
37
6L52442100
#2
Valve, check
Loading…
↗
38
6H42441300
#2
Body 2
Loading…
↗
39
6H42448600
#2
O-ring
Loading…
↗
40
6H32441110
#2
Diaphragm
Loading…
↗
41
6H32443410
#2
Gasket, body
Loading…
↗
42
9046518147
Clamp
Loading…
↗
43
9701306012
Bolt(gh1)
Loading…
↗
44
9290306600
Washer, plain (646)
Loading…
↗
