8CMH (2011)
CARBURETOR

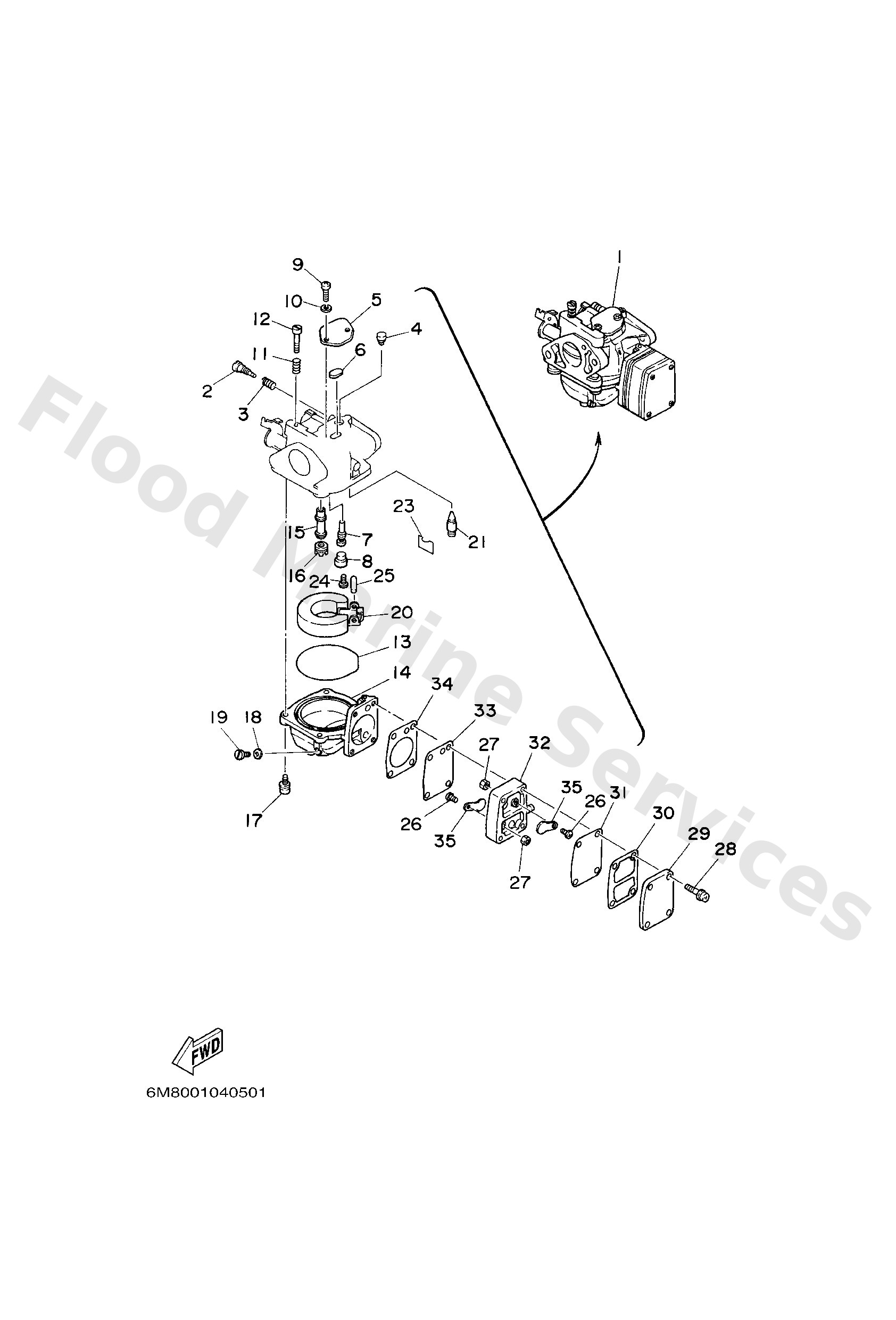

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
6G11430101
Carburetor assembly 1
Loading…
↗
1
6H61430101
Carburetor assembly 1
Loading…
↗
2
6791492300
Screw, pilot
Loading…
↗
3
6791455500
Spring
Loading…
↗
4
6G11496600
Cap
Loading…
↗
5
6G11452700
Plate
Loading…
↗
6
6G11412600
Packing
Loading…
↗
7
6G11494805
Jet (#45)
Loading…
↗
8
6761496600
Rubber cap
Loading…
↗
9
9788004010
Screw, pan head (e56)
Loading…
↗
10
9299004100
Ybs67-4 washer, spring
Loading…
↗
11
9050110326
Spring coil(663)(carb)
Loading…
↗
12
63V1452300
Screw, stop
Loading…
↗
13
6G11498400
Gasket, float chamber
Loading…
↗
14
6G11498001
Body, float chamber
Loading…
↗
15
6H61494700
Nozzle, main
Loading…
↗
15
6G11494700
Nozzle, main
Loading…
↗
16
6761494326
Jet, main (#98)
Loading…
↗
17
9798004114
Screw, pan head(ga5)
Loading…
↗
18
6G11439800
Washer
Loading…
↗
19
6G11499200
Screw, drain
Loading…
↗
20
6G11498500
Float comp.
Loading…
↗
21
6AH1454600
Valve, needle
Loading…
↗
23
6631415900
Clip
Loading…
↗
24
9858004008
Screw, pan head (713)
Loading…
↗
25
6881454800
Pin, arm
Loading…
↗
26
9898003006
Screw, bind(6g1)
Loading…
↗
27
9538003600
Nut (6g8)
Loading…
↗
28
9798004125
Screw, with washer
Loading…
↗
29
6G12445200
Cover, pump
Loading…
↗
30
6G12443200
Packing
Loading…
↗
31
6G12447100
Diaphragm
Loading…
↗
32
6G12441201
Body 1
Loading…
↗
33
6G12441100
Diaphragm
Loading…
↗
34
6G12443101
Gasket, fuel pump 1
Loading…
↗
35
6G12442100
Valve, check
Loading…
↗
