9.9FMH (2024)
CARBURETOR

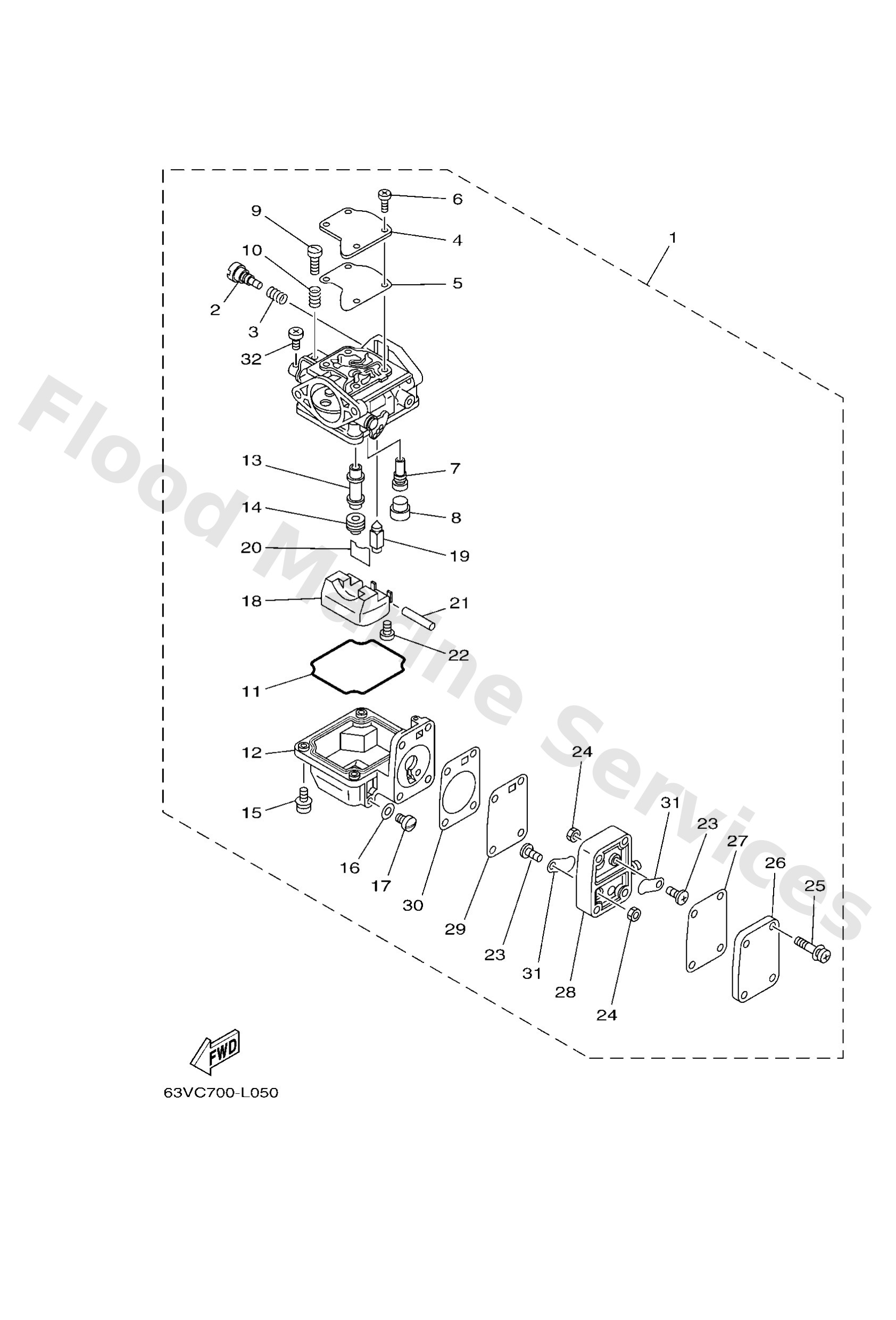

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
63V1430104
Carburetor assembly 1
Loading…
↗
2
6791492301
Screw, pilot
Loading…
↗
3
6971455500
Spring
Loading…
↗
4
63V1452700
Plate
Loading…
↗
5
63V1412600
Gasket
Loading…
↗
6
65L1456500
Screw
Loading…
↗
7
6G11494806
Jet (#48)
Loading…
↗
8
6791496600
Rubber cap
Loading…
↗
9
63V1452300
Screw, stop
Loading…
↗
10
9050110326
Spring coil(663)(carb)
Loading…
↗
11
63V1498400
Gasket, float chamber
Loading…
↗
12
63V1498002
Body, float chamber
Loading…
↗
13
63V1494700
Jet, needle
Loading…
↗
14
6761494329
Jet, main (#110)
Loading…
↗
15
9798004114
Screw, pan head(ga5)
Loading…
↗
16
65W1439800
Washer
Loading…
↗
17
65W1499209
Screw, drain
Loading…
↗
18
63V1498500
Float
Loading…
↗
19
6AH1454600
Valve, needle
Loading…
↗
20
6331415900
Clip
Loading…
↗
21
6H41454800
Pin, float arm
Loading…
↗
22
9858004008
Screw, pan head (713)
Loading…
↗
23
9898003006
Screw, bind(6g1)
Loading…
↗
24
9538003600
Nut (6g8)
Loading…
↗
25
9798004123
Screw, with washer
Loading…
↗
26
6G12445200
Cover, pump
Loading…
↗
27
63V2441100
Diaphragm
Loading…
↗
28
6G12441202
Body 1
Loading…
↗
29
6G12441100
Diaphragm
Loading…
↗
30
6G12443101
Gasket, fuel pump 1
Loading…
↗
31
6L52442100
Valve, check
Loading…
↗
32
9858004006
Screw, pan head (7h3)
Loading…
↗
