Yamaha Outboard Parts - CARBURETOR - D150HETO (2002) | Flood Marine

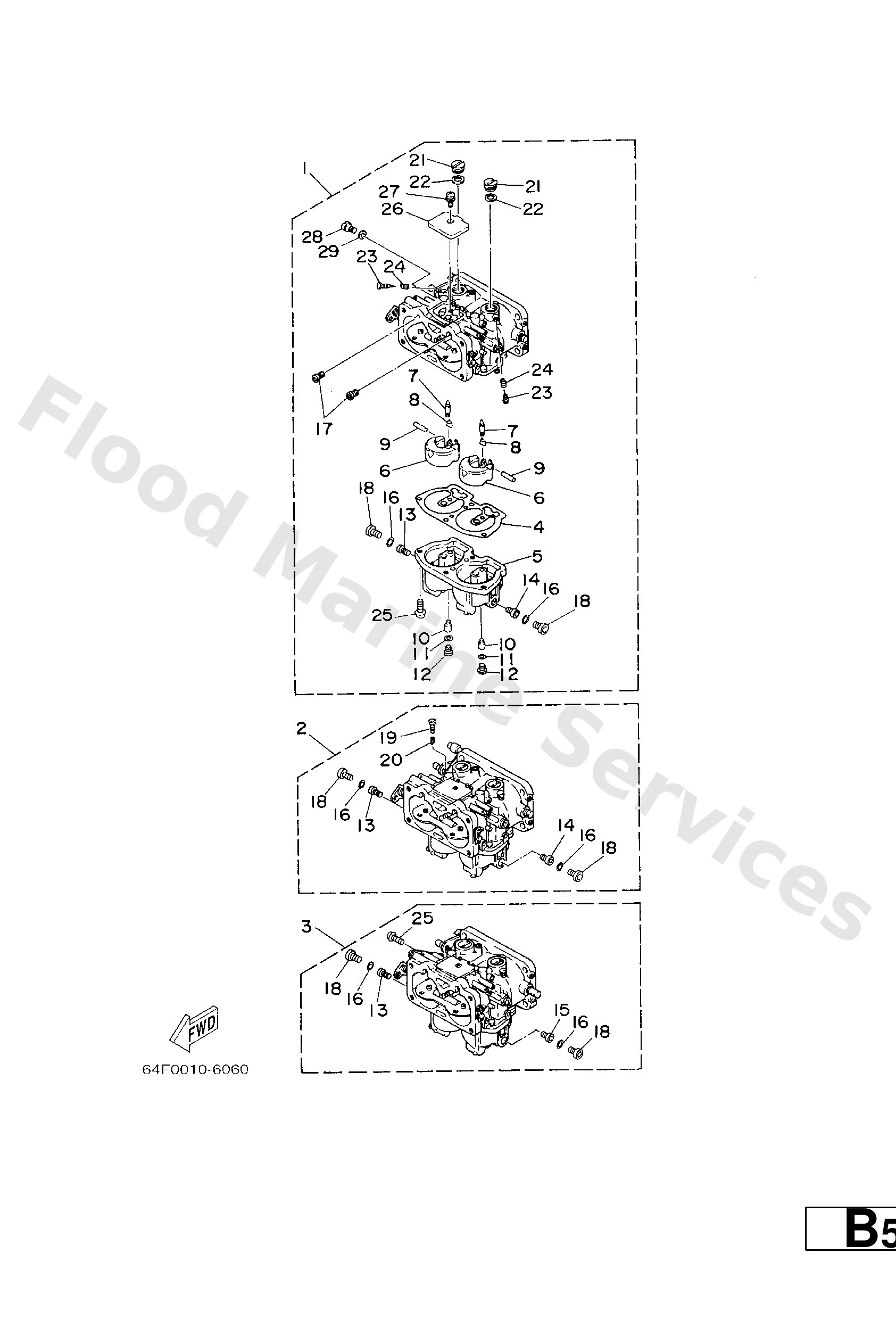

Diagram: CARBURETOR

Diagram

Parts List

Reference
Description
Price


1
64K1430101
Carburetor assembly 1
Loading…

↗
2
64K1430201
Carburetor assembly 2
Loading…

↗
3
64K1430301
Carburetor assembly 3
Loading…

↗
4
64D1438401
Gasket, float chamber
Loading…

↗
5
64D1438100
Body, float chamber
Loading…

↗
6
6E51438502
Float
Loading…

↗
7
6E51454600
Valve, needle
Loading…

↗
8
6E51415900
Clip
Loading…

↗
9
6E51438602
Pin, float
Loading…

↗
10
64D1492F42
Jet, air slow
Loading…

↗
11
61U1495900
Gasket
Loading…

↗
12
64D1439400
Valve, drain
Loading…

↗
13
64D1492E76
Jet, main
Loading…

↗
14
64D1492E77
Jet, main
Loading…

↗
15
64D1492E79
Jet, main
Loading…

↗
16
6E51439801
Gasket
Loading…

↗
17
61A1492H12
Jet, slow air (#60)
Loading…

↗
18
61A1438301
Screw, drain
Loading…

↗
19
6E51432100 #2
Screw, throttle
Loading…

↗
20
6J81433400 #2
Spring, throttle
Loading…

↗
21
6E51432801
Plug
Loading…

↗
22
6E51497900
Gasket
Loading…

↗
23
6E51432303
Screw, air adjusting
Loading…

↗
24
6E51422300
Spring, air adjusting
Loading…

↗
25
9798005116
Screw, pan head
Loading…

↗
26
6E51452701
Plate
Loading…

↗
27
9798005108
Screw, with washer
Loading…

↗
28
6E51432400
Screw, flat head
Loading…

↗
29
6J81495900
Gasket, drin screw
Loading…

↗
