E40XMH (2003)
CARBURETOR

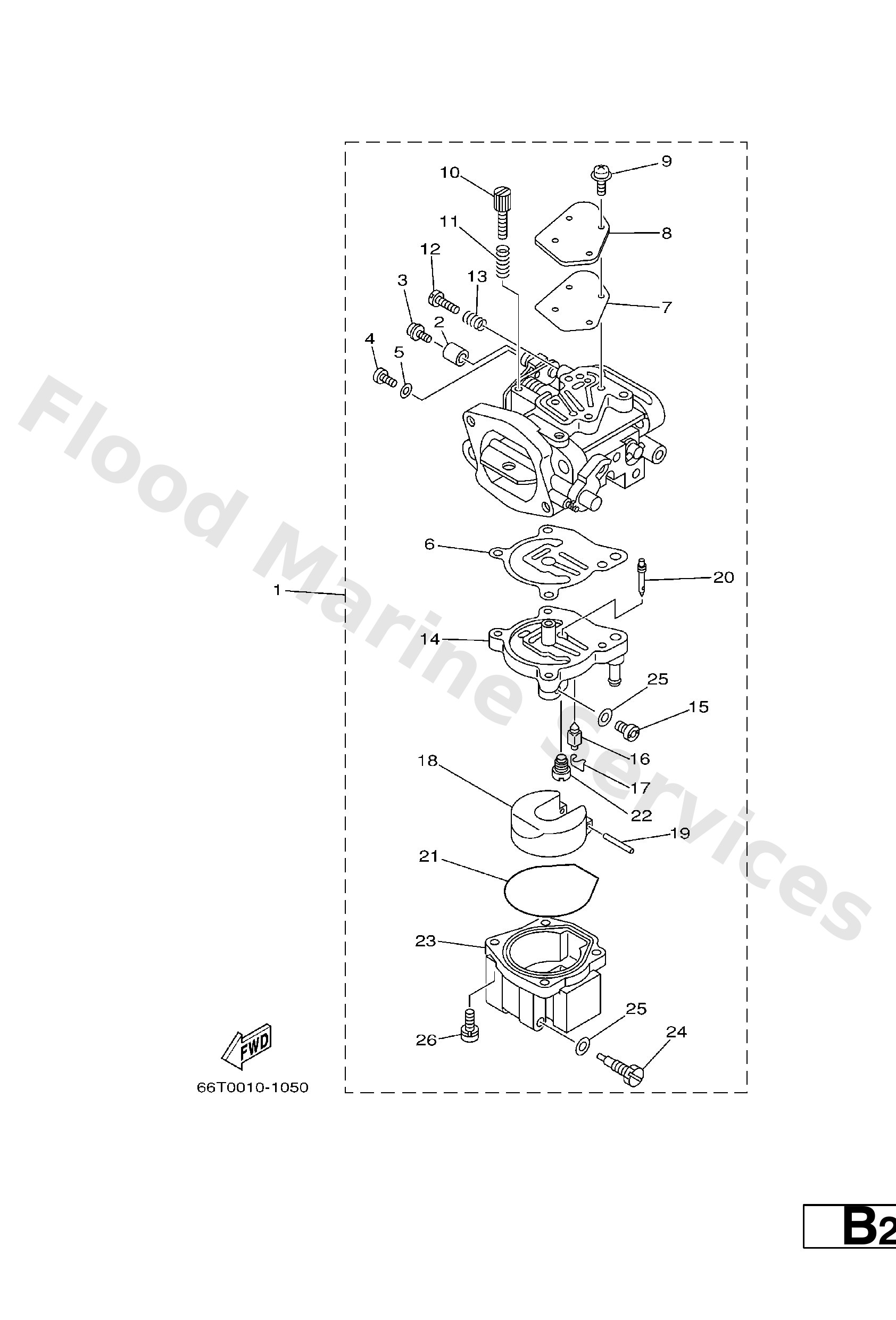

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
66T−14301−12
Carburetor assembly 1
Loading…
↗
1
66T−14301−02
Carburetor assembly 1
Loading…
↗
2
66T−14578−00
Collar
Loading…
↗
3
66T−14584−00
Stopper
Loading…
↗
4
6J8−14592−01
Screw
Loading…
↗
5
92990−05600
Washer, plain (646)
Loading…
↗
6
66T−14384−01
Gasket, float chamber
Loading…
↗
7
66T−14536−00
Gasket
Loading…
↗
8
66T−14527−00
Plate
Loading…
↗
9
97980−04112
Screw, pan head (686)
Loading…
↗
10
66T−14523−00
Screw, stop
Loading…
↗
11
6J8−14334−00
Spring, throttle
Loading…
↗
12
6E5−14323−03
Screw, air adjusting
Loading…
↗
13
6E5−14223−00
Spring, air adjusting
Loading…
↗
14
66T−14945−02
Spacer assembly (#38)
Loading…
↗
15
61A−1492E−85
Jet, main (#170)
Loading…
↗
16
6E5−14546−00
Valve, needle
Loading…
↗
17
6E5−14159−00
Clip
Loading…
↗
18
6E5−14385−02
Float
Loading…
↗
19
6E5−14386−02
Pin, float
Loading…
↗
20
66T−1492F−35
Jet, air slow (#70)
Loading…
↗
21
66T−14984−00
Gasket, float chamber
Loading…
↗
22
66T−14992−00
Plug
Loading…
↗
23
66T−14981−00
Body, float chamber
Loading…
↗
24
66T−14991−00
Plug, drain
Loading…
↗
25
66T−14959−00
Gasket
Loading…
↗
26
97980−05125
Screw, panhead (a93)
Loading…
↗
