E60HMHD (2021)
CARBURETOR

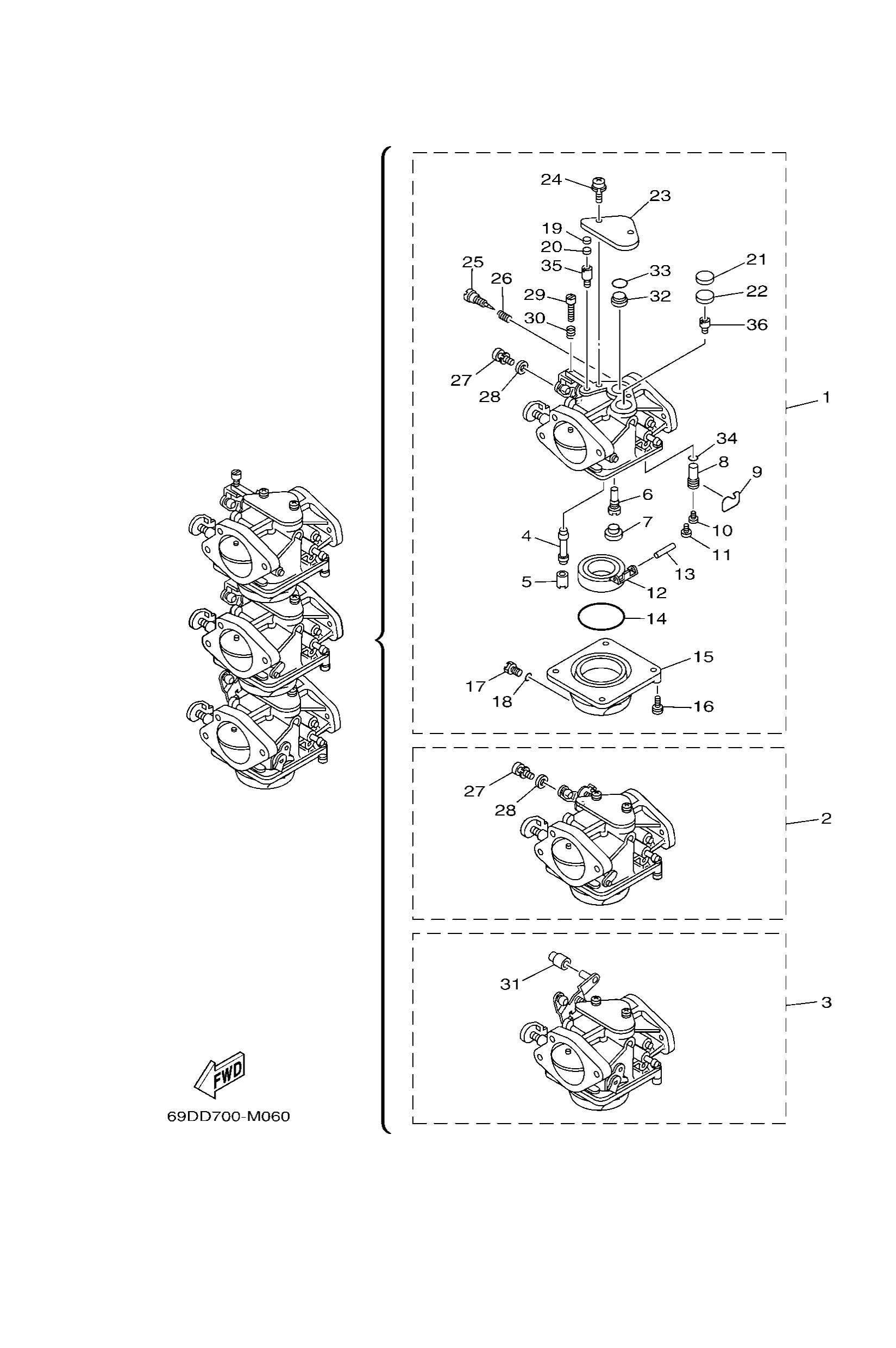

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
6K51430110
Carburetor assembly 1
Loading…
↗
2
6K51430210
Carburetor assembly 2
Loading…
↗
3
6K51430310
Carburetor assembly 3
Loading…
↗
4
6H21494702
Nozzle, main
Loading…
↗
5
6761494334
Jet, main (#135)
Loading…
↗
6
6H41494815
Jet, sl0w (#70)
Loading…
↗
7
6761496600
Rubber cap
Loading…
↗
8
6H31459001
Needle valve assembly
Loading…
↗
9
6631415900
Clip
Loading…
↗
10
6761418600
Pin, valve
Loading…
↗
11
9858004008
Screw, pan head (713)
Loading…
↗
12
6G11498500
Float comp.
Loading…
↗
13
6881454800
Pin, arm
Loading…
↗
14
6G11498400
Gasket, float chamber
Loading…
↗
15
6H21498000
Body, float chamber
Loading…
↗
16
9798004114
Screw, pan head(ga5)
Loading…
↗
17
6H31499200
Screw, drain
Loading…
↗
18
9321004230
O-ring (371)
Loading…
↗
19
6631412600
Packing
Loading…
↗
20
6631452700
Plate
Loading…
↗
21
6881412600
Packing
Loading…
↗
22
6881452700
Plate
Loading…
↗
23
6H21452701
Plate
Loading…
↗
24
9798005310
Screw, with washer(6k5)
Loading…
↗
25
6921492300
Screw, adjusting
Loading…
↗
26
6791455500
Spring
Loading…
↗
27
6K51459200
#1,2
Screw
Loading…
↗
28
9020105652
#1,2
Washer, plate(65j)
Loading…
↗
29
63V1452300
#1
Screw, stop
Loading…
↗
30
9050110326
#1
Spring coil(663)(carb)
Loading…
↗
31
6H21457800
#3
Collar
Loading…
↗
32
6H31457800
Collar
Loading…
↗
33
9321015M52
O-ring (6e9)
Loading…
↗
34
9321004228
O-ring (371)
Loading…
↗
35
6K51494536
Jet, air main (#145)
Loading…
↗
36
6K51495021
Jet, air slow (#85)
Loading…
↗
