EK9.9HMH (2003)
CARBURETOR

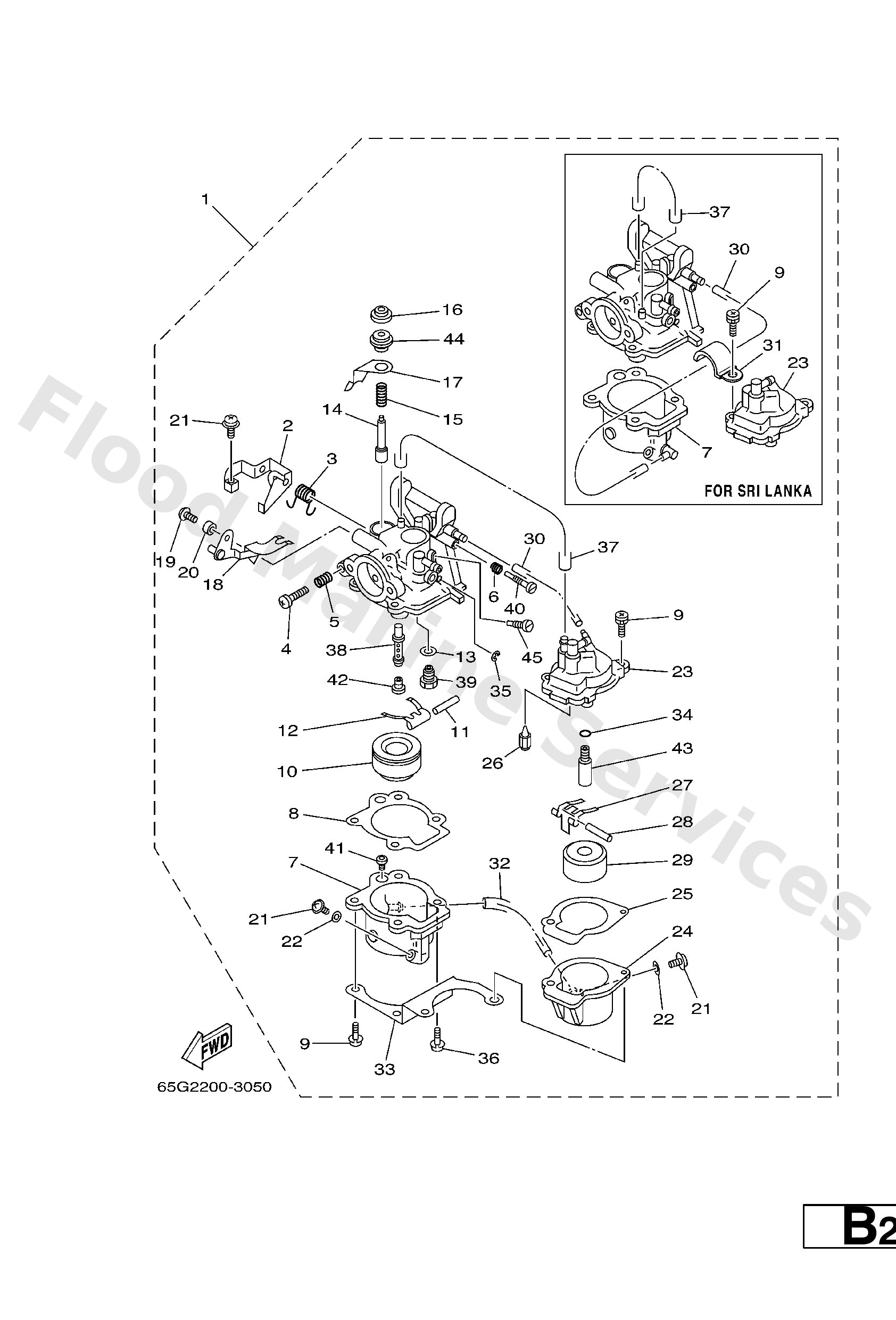

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
65G−14301−10
FOR SRI LANKA
Carburetor assembly 1
Loading…
↗
1
65G−14301−01
Carburetor assembly 1
Loading…
↗
2
65G−14315−10
FOR SRI LANKA
Lever, Throttle 1
Loading…
↗
2
65G−14315−00
Lever, Throttle 1
Loading…
↗
3
648−14331−00
Spring, throttle valve
Loading…
↗
4
650−14321−01
Screw, throttle
Loading…
↗
5
626−14333−00
Spring,throttle stop
Loading…
↗
6
646−14212−01
Spring, pilot adjusting
Loading…
↗
7
680−14381−20
Body, Float Chamber
Loading…
↗
7
680−14381−30
FOR SRI LANKA
Body, Float Chamber
Loading…
↗
8
650−14384−00
Gasket, float chamber
Loading…
↗
9
97980−04115
5−
Loading…
↗
10
647−14385−00
Float
Loading…
↗
11
626−14386−10
Pin, Float
Loading…
↗
12
626−14387−90
Arm, float
Loading…
↗
13
626−14398−00
Gasket
Loading…
↗
14
626−14371−00
Plunger, starter
Loading…
↗
15
626−14335−00
Spring, plunger
Loading…
↗
16
626−14373−00
Cover, Plunger Cap
Loading…
↗
17
626−14378−00
Plate, starter lever
Loading…
↗
18
6M7−14376−00
Lever, starter 2
Loading…
↗
19
650−14327−01
Screw
Loading…
↗
20
650−14349−00
Collar
Loading…
↗
21
97890−04005
Screw, pan head(6g8)
Loading…
↗
22
6L2−14398−00
Gasket
Loading…
↗
23
65G−14182−00
5−
Loading…
↗
23
65G−14182−10
FOR SRI LANKA
5−
Loading…
↗
24
680−14181−00
Body, float chamber(g)
Loading…
↗
25
652−14384−00
Gasket, float chamber
Loading…
↗
26
6F5−14392−00
Valve, needle
Loading…
↗
27
652−14387−40
Arm, float
Loading…
↗
28
6M7−14386−00
Pin, float
Loading…
↗
29
652−14385−00
Float
Loading…
↗
30
6A4−14348−00
Hose
Loading…
↗
30
65G−14348−11
FOR SRI LANKA
Pipe 1
Loading…
↗
31
65G−14261−00
FOR SRI LANKA
Holder
Loading…
↗
32
6M7−14348−00
Pipe 1
Loading…
↗
33
65G−14346−00
Plate
Loading…
↗
34
652−14147−00
Ring, o
Loading…
↗
35
93430−04301
Circlip
Loading…
↗
36
97980−04112
Screw, pan head (686)
Loading…
↗
37
65G−14348−00
Pipe 1
Loading…
↗
38
6M7−14341−00
Nozzle, Main
Loading…
↗
39
677−14390−12
Valve seat assembly
Loading…
↗
40
647−14323−00
Screw, air adjusting
Loading…
↗
41
648−14344−25
Jet, starter # 50
Loading…
↗
42
648−14343−51
Jet, main (#102)
Loading…
↗
42
648−14343−45
FOR SRI LANKA
Jet, Main (# 90)
Loading…
↗
43
652−14353−34
Jet, pilot #68
Loading…
↗
44
626−14374−00
Cap, plunger
Loading…
↗
45
648−14342−23
Jet, pilot (#46)
Loading…
↗
