F13.5AEP (2005)
CARBURETOR

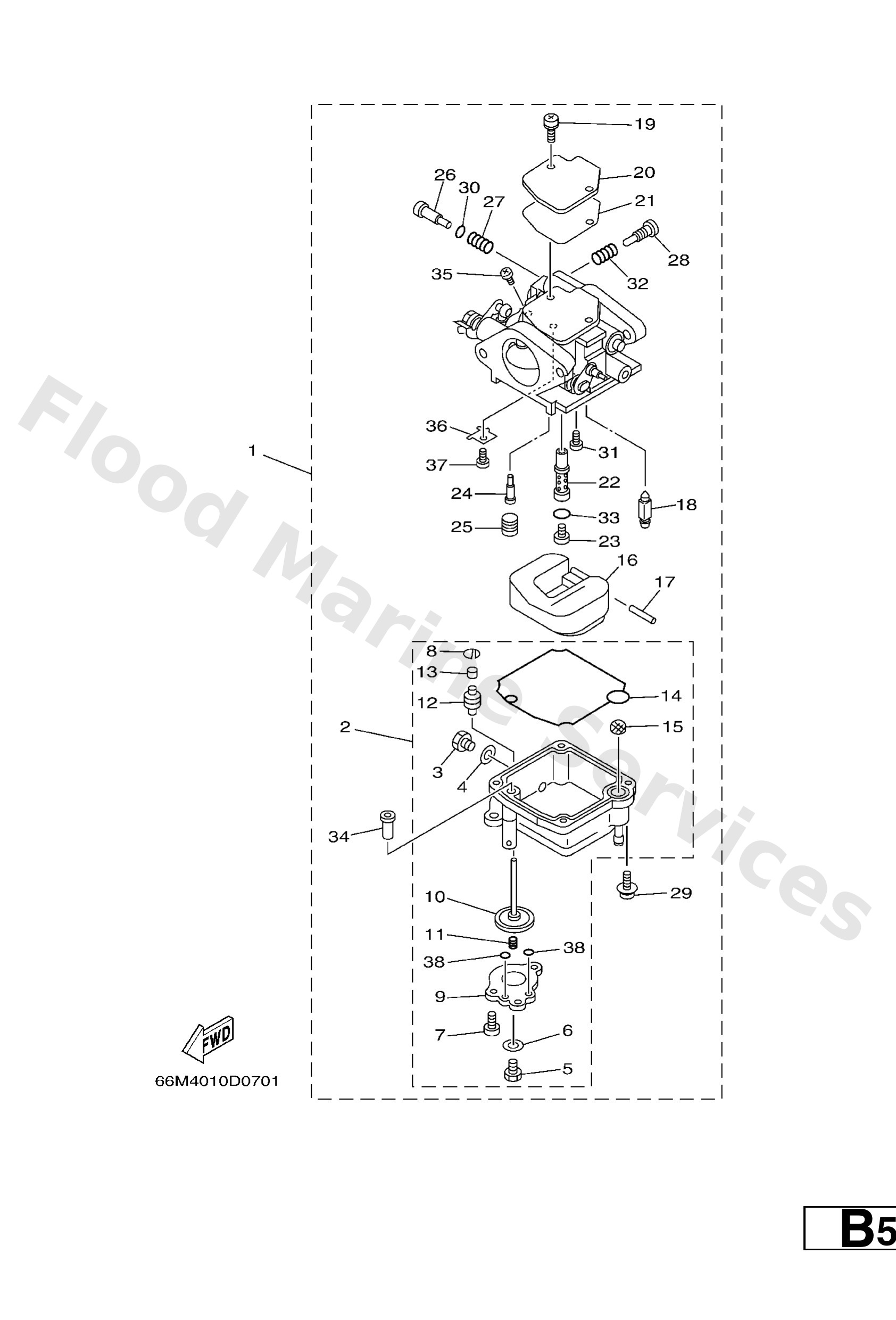

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
66M1430100
Carburetor assembly 1
Loading…
↗
2
66M1438102
Body, Float Chamber
Loading…
↗
3
62Y1438300
Screw, drain
Loading…
↗
4
66M1439800
Gasket
Loading…
↗
5
6771438301
Screw, drain
Loading…
↗
6
6L21439800
Gasket
Loading…
↗
7
66M1432500
Screw, pan head
Loading…
↗
8
66M1437700
Stopper
Loading…
↗
9
66M1495800
Cover, diaphragm
Loading…
↗
10
66M1436801
Diaphragm assembly 1
Loading…
↗
11
6G81427502
Spring
Loading…
↗
12
66M1423900
Seal
Loading…
↗
13
66M1422500
Cap
Loading…
↗
14
66M1438400
Gasket, float chamber
Loading…
↗
15
66M1482700
Filter
Loading…
↗
16
6L21438500
Float
Loading…
↗
17
6E51438601
Pin, float
Loading…
↗
18
6L21439200
Valve, needle
Loading…
↗
19
9798004110
Screw, pan head (e56)
Loading…
↗
20
6L21415700
Cover, mixing
Loading…
↗
21
62Y1439900
Gasket
Loading…
↗
22
66M1434100
Nozzle, Main
Loading…
↗
23
66M1434352
Jet, main (#104)
Loading…
↗
24
66M1434223
Jet, pilot (#45)
Loading…
↗
25
66M1435500
Plug
Loading…
↗
26
5H01432300
Pilot screw set
Loading…
↗
27
30X1433400
Spring, air adjusting
Loading…
↗
28
62Y1452100
Screw, adjust
Loading…
↗
29
9798004112
Screw, pan head (686)
Loading…
↗
30
62Y1439700
O-ring
Loading…
↗
31
9898004006
Screw, bind(6l2)
Loading…
↗
32
6461421201
Spring, pilot adjusting
Loading…
↗
33
6F51439700
O-ring
Loading…
↗
34
66M1427200
Valve, check seat
Loading…
↗
35
9789004005
Screw, pan head(6g8)
Loading…
↗
36
66M1415700
Plate
Loading…
↗
37
9858003005
Screw, pan head(78g)
Loading…
↗
38
69M2453300
O-ring
Loading…
↗
