F13.5AMH (2003)
CARBURETOR

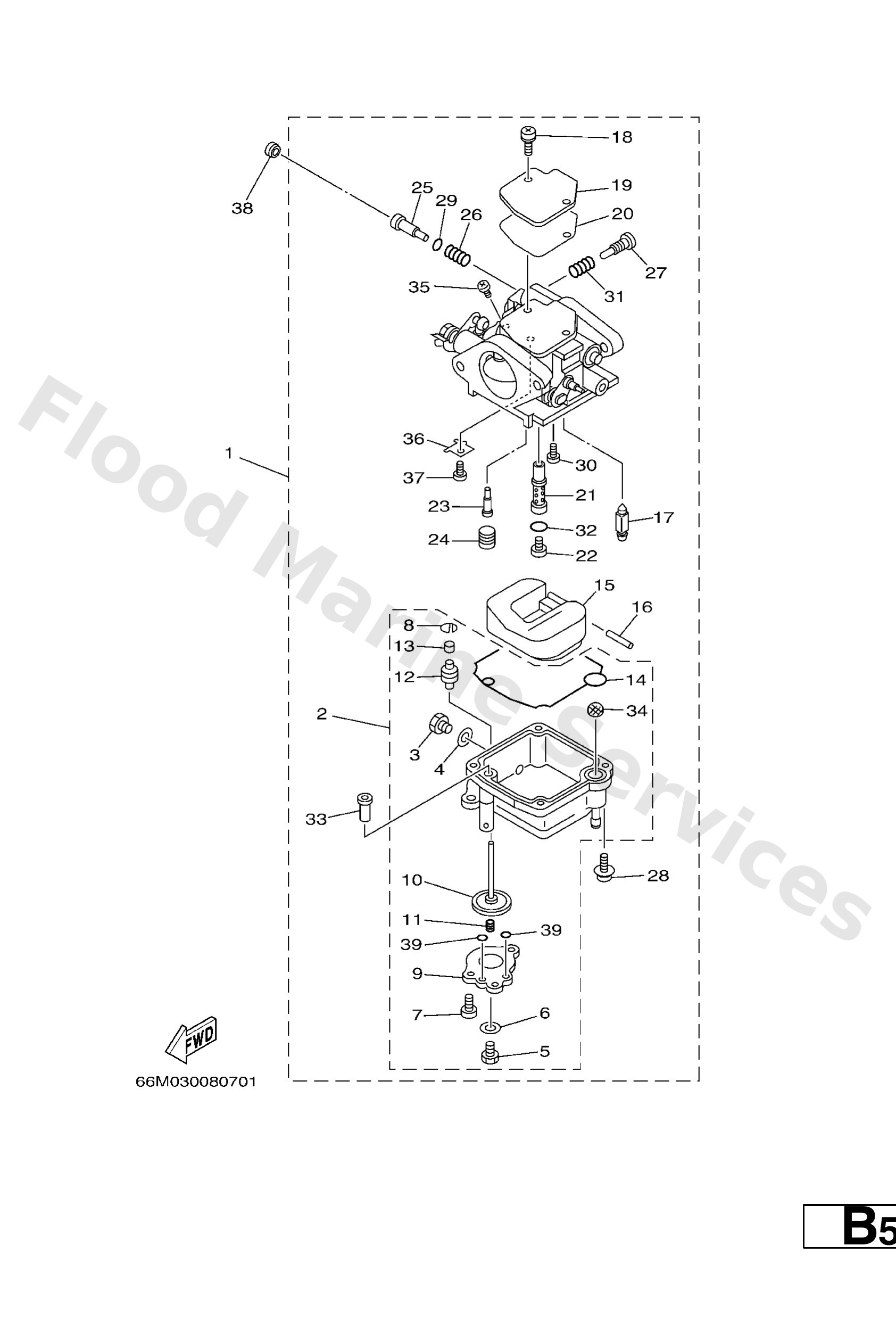

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
66M−14301−20
*ECM−”F15A ONLY”
Carburetor assembly 1
Loading…
↗
1
66M−14301−00
F13.5A,F15A−FOR STD
Carburetor assembly 1
Loading…
↗
1
66N−14301−00
F9.9C
Carburetor assembly 1
Loading…
↗
2
66M−14381−02
F13.5A,F15A
Body, Float Chamber
Loading…
↗
2
66N−14381−00
F9.9C
Body, Float Chamber
Loading…
↗
3
62Y−14383−00
Screw, drain
Loading…
↗
4
66M−14398−00
Gasket
Loading…
↗
5
677−14383−01
F13.5A,F15A
Screw, drain
Loading…
↗
6
6L2−14398−00
F13.5A,F15A
Gasket
Loading…
↗
7
66M−14325−00
F13.5A,F15A
Screw, pan head
Loading…
↗
8
66M−14377−00
F13.5A,F15A
Stopper
Loading…
↗
9
66M−14958−00
F13.5A,F15A
Cover, diaphragm
Loading…
↗
10
66M−14368−01
F13.5A,F15A
Diaphragm assembly 1
Loading…
↗
11
6G8−14275−02
F13.5A,F15A
Spring
Loading…
↗
12
66M−14239−00
F13.5A,F15A
Seal
Loading…
↗
13
66M−14225−00
F13.5A,F15A
Cap
Loading…
↗
14
66M−14384−00
Gasket, float chamber
Loading…
↗
15
6L2−14385−00
Float
Loading…
↗
16
6E5−14386−01
Pin, float
Loading…
↗
17
6L2−14392−00
Valve, needle
Loading…
↗
18
97980−04110
Screw, pan head (e56)
Loading…
↗
19
6L2−14157−00
Cover, mixing
Loading…
↗
20
62Y−14399−00
Gasket
Loading…
↗
21
66M−14341−10
*ECM−”F15A ONLY“
Nozzle, Main
Loading…
↗
21
66M−14341−00
F13.5A,F15A−FOR STD
Nozzle, Main
Loading…
↗
21
66N−14341−00
F9.9C
Nozzle, main
Loading…
↗
22
66M−14343−52
F13.5A,F15A−FOR STD
Jet, main (#104)
Loading…
↗
22
66M−14343−51
*ECM−”F15A ONLY”
Jet, Main (#102)
Loading…
↗
22
66N−14343−34
F9.9C
Jet, main (#68)
Loading…
↗
23
66M−14342−23
Jet, pilot (#45)
Loading…
↗
24
66M−14355−00
F13.5A,F15A
Plug
Loading…
↗
24
62Y−14355−00
F9.9C
Plug
Loading…
↗
25
5H0−14323−00
FOR STD
Pilot screw set
Loading…
↗
25
62Y−14323−10
FOR *ECM
Screw, Air Adjusting
Loading…
↗
26
30X−14334−00
Spring, air adjusting
Loading…
↗
26
521−00
Screw, Throttle
Loading…
↗
28
97980−04112
Screw, pan head (686)
Loading…
↗
29
62Y−14397−00
O-ring
Loading…
↗
30
98980−04006
Screw, bind(6l2)
Loading…
↗
31
646−14212−01
Spring, pilot adjusting
Loading…
↗
32
6F5−14397−00
O-ring
Loading…
↗
33
66M−14272−00
F13.5A,F15A
Valve, check seat
Loading…
↗
34
66M−14827−00
Filter
Loading…
↗
35
97890−04005
Screw, pan head(6g8)
Loading…
↗
36
66M−14157−00
Plate
Loading…
↗
37
98580−03005
Screw, pan head(78g)
Loading…
↗
38
6G8−14457−00
FOR *ECM
Plug
Loading…
↗
39
69M−24533−00
F13.5A,F15A
O-ring
Loading…
↗
