F2.5AMH (2007)
CARBURETOR

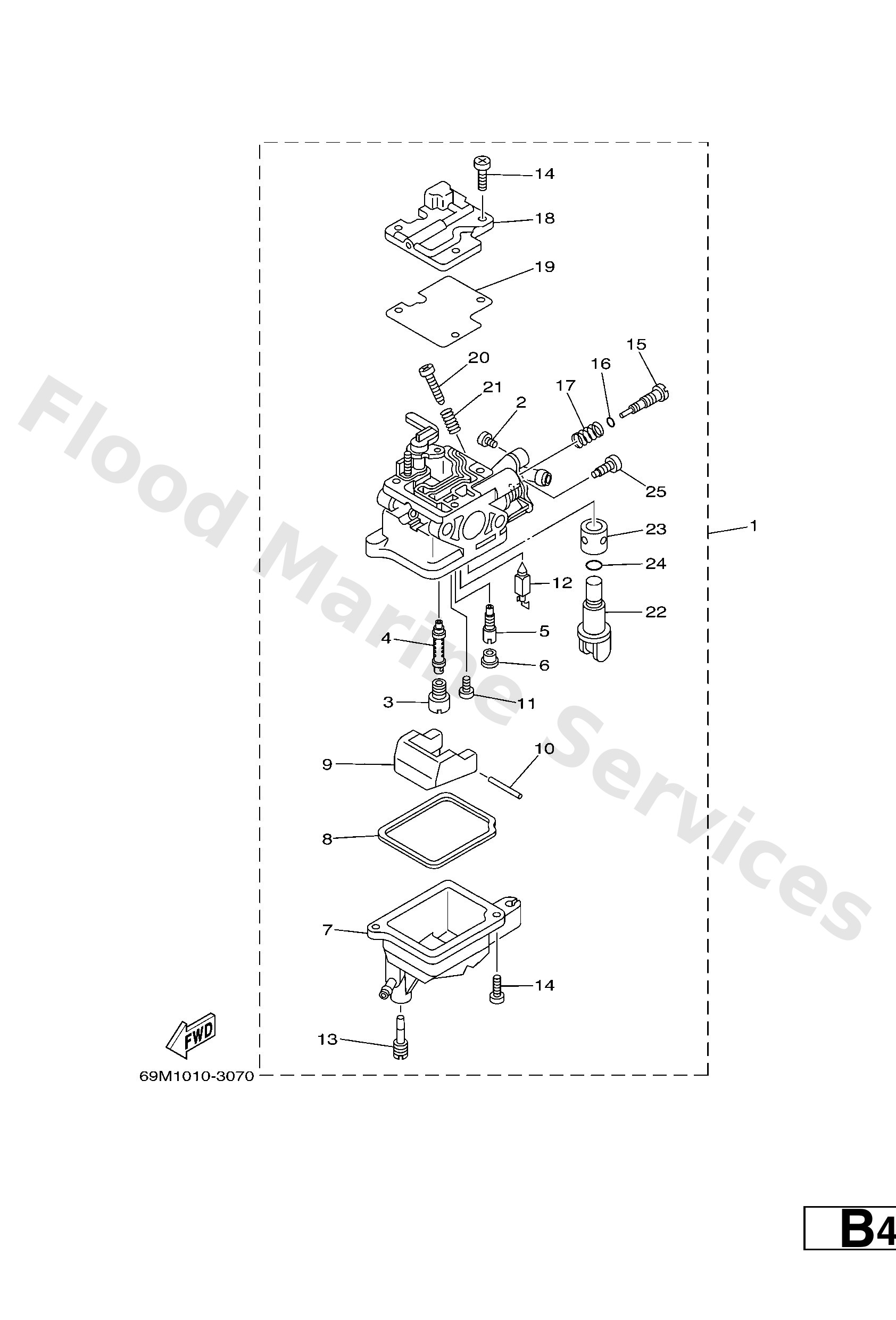

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
69M1430120
Carburetor assembly 1
Loading…
↗
2
9789004007
Screw, pan head (7h3)
Loading…
↗
3
69M1434331
Jet, main (#62)
Loading…
↗
4
69M1434100
Nozzle, main
Loading…
↗
5
69M1434268
Jet, pilot (#37)
Loading…
↗
6
69M1496600
Bush
Loading…
↗
7
69M1438100
Body, float chamber
Loading…
↗
8
69M1498400
Gasket, float chamber
Loading…
↗
9
69M1438500
Float
Loading…
↗
10
6A11438600
Pin, float
Loading…
↗
11
9858003005
Screw, pan head(78g)
Loading…
↗
12
62Y1439200
Valve, needle
Loading…
↗
13
69M1499100
Screw
Loading…
↗
14
9858004010
Screw, pan head (e56)
Loading…
↗
15
69M1432320
Screw, air adjusting
Loading…
↗
16
2T41439700
O-ring
Loading…
↗
17
62Y1433400
Spring, air adjusting
Loading…
↗
18
69M1452700
Plate
Loading…
↗
19
69M1453600
Gasket
Loading…
↗
20
69W1432100
Screw, throttle
Loading…
↗
21
62Y1421200
Spring, pilot adjusting
Loading…
↗
22
69M2452400
Lever, cock
Loading…
↗
23
69M2452300
Valve
Loading…
↗
24
69M2453300
O-ring
Loading…
↗
25
69M2453500
Screw, lever fitting
Loading…
↗
