F20BMH (2007)
CARBURETOR

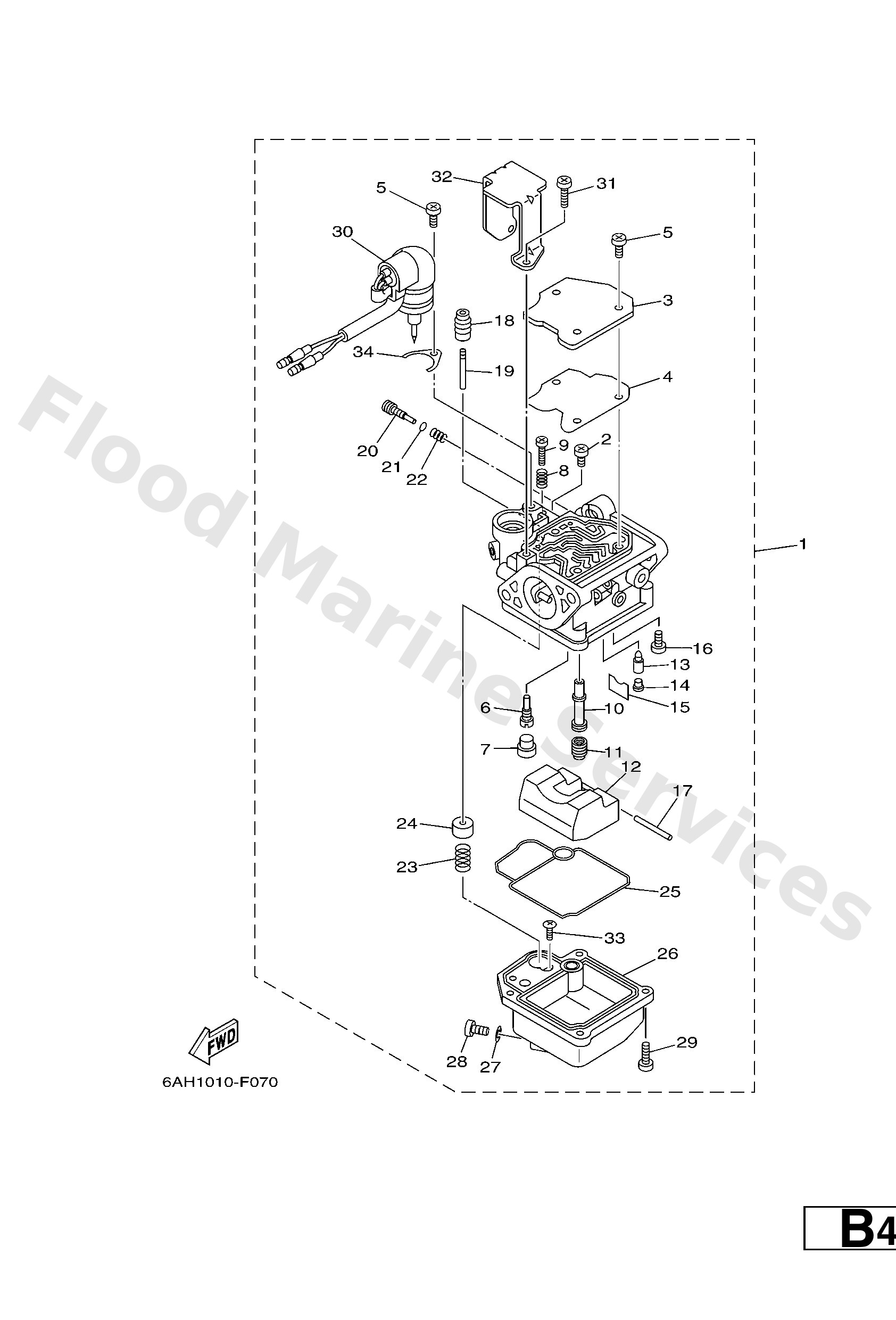

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
6AH1430150
Carburetor assembly 1
Loading…
↗
1
6AH1430110
Carburetor assembly 1
Loading…
↗
2
9858004006
Screw, pan head (7h3)
Loading…
↗
3
65W1457200
Plate
Loading…
↗
4
65W1412610
Gasket
Loading…
↗
5
9798004110
Screw, pan head (e56)
Loading…
↗
6
6AG1494805
FOR 6AH-14301-10
Jet (#45)
Loading…
↗
6
6761494805
FOR 6AH-14301-50
Jet (#45)
Loading…
↗
7
6791496600
Rubber cap
Loading…
↗
8
9050110326
Spring coil(663)(carb)
Loading…
↗
9
63V1452300
Screw, stop
Loading…
↗
10
6AH1494700
Jet, needle
Loading…
↗
11
65W1494329
Jet, main (#112)
Loading…
↗
12
6AH1498500
Float
Loading…
↗
13
6G11454601
Valve, needle
Loading…
↗
14
6761418600
Pin, valve
Loading…
↗
15
6631415900
Clip
Loading…
↗
16
9858004008
Screw, pan head (713)
Loading…
↗
17
6H41454800
Pin, float arm
Loading…
↗
18
65W1437301
Cover, plunger cap
Loading…
↗
19
6AH1437910
Rod, starter
Loading…
↗
20
67C1492320
Screw, pilot
Loading…
↗
21
67C1439700
O-ring
Loading…
↗
22
67C1455500
Spring
Loading…
↗
23
6AH1433500
Spring, plunger
Loading…
↗
24
6AH1437100
Plunger, starter
Loading…
↗
25
6AH1438400
Gasket, float chamber
Loading…
↗
26
6AH1498000
Body, float chamber
Loading…
↗
27
65W1439800
Washer
Loading…
↗
28
65W1499200
Screw, drain
Loading…
↗
29
9798004114
Screw, pan head(ga5)
Loading…
↗
30
6AH1438000
FOR 6AH-14301-10
Prime starter assembly
Loading…
↗
30
6AH1438010
FOR 6AH-14301-50
Prime starter assembly
Loading…
↗
31
9798004108
Screw, with washer(6m6)
Loading…
↗
32
6AH1434600
Plate
Loading…
↗
33
67C1456700
Screw
Loading…
↗
34
65W1434600
Plate
Loading…
↗
