F25AMH (2002)
CARBURETOR

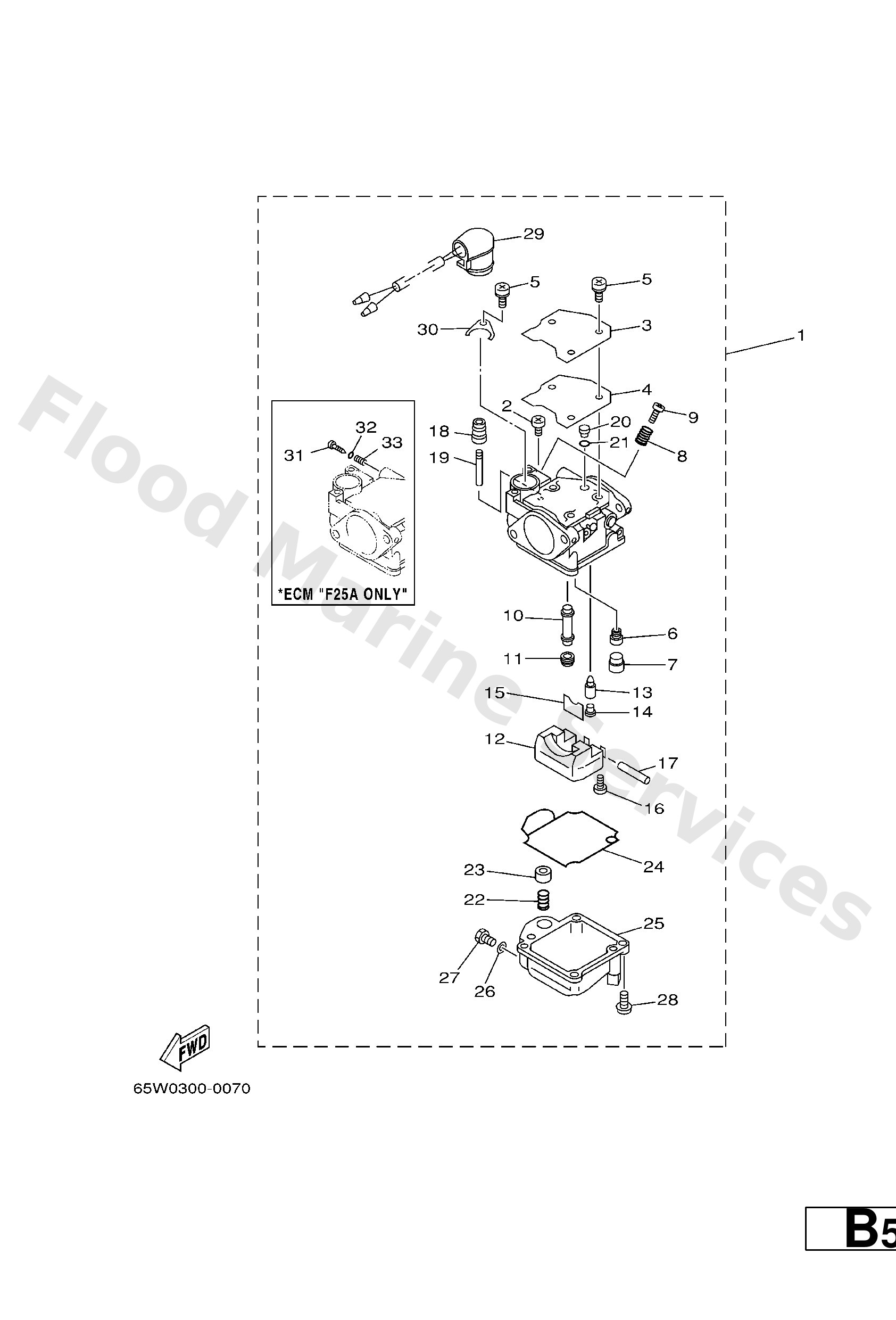

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
65W1490110
FOR STD
Carburetor assembly 1
Loading…
↗
1
65W1490100
FOR STD
Carburetor assembly 1
Loading…
↗
1
65W1490131
*ECM–”F25A ONLY”
Carburetor assembly 1
Loading…
↗
2
9858004006
Screw, pan head (7h3)
Loading…
↗
3
65W1457200
Plate
Loading…
↗
4
65W1412600
FOR STD
Gasket
Loading…
↗
4
65W1412610
*ECM–”F25A ONLY”
Gasket
Loading…
↗
5
9780304010
Screw, pan head (e56)
Loading…
↗
6
6761494807
FOR STD
Jet (#50)
Loading…
↗
6
65W1494807
*ECM–”F25A ONLY”
Jet (#50)
Loading…
↗
7
6791496600
Rubber cap
Loading…
↗
8
9050110326
Spring coil(663)(carb)
Loading…
↗
9
63V1452300
Screw, stop
Loading…
↗
10
65W1494700
FOR STD
Jet, Needle
Loading…
↗
10
65W1494720
*ECM–”F25A ONLY”
Jet, Needle
Loading…
↗
11
65W1494329
FOR STD
Jet, main (#112)
Loading…
↗
11
65W1494328
*ECM–”F25A ONLY”
Jet, Main (#105)
Loading…
↗
12
63V1498500
Float
Loading…
↗
13
6G11454600
Valve, needle
Loading…
↗
14
6761418600
Pin, valve
Loading…
↗
15
6631415900
Clip
Loading…
↗
16
9858004008
Screw, pan head (713)
Loading…
↗
17
6H41454800
Pin, float arm
Loading…
↗
18
65W1437300
Cover, plunger cap
Loading…
↗
19
65W1437900
Rod, starter
Loading…
↗
20
65W1414F00
FOR STD
Jet, pilot (# 52)
Loading…
↗
21
65W1414700
FOR STD
O-ring
Loading…
↗
22
65W1433500
Spring, plunger
Loading…
↗
23
65W1437100
Plunger, starter
Loading…
↗
24
65W1438400
Gasket, float chamber
Loading…
↗
25
65W1498020
*ECM–”F25A ONLY”
Body, float chamber
Loading…
↗
25
65W1498000
FOR STD
Body, float chamber
Loading…
↗
26
65W1439800
Washer
Loading…
↗
27
65W1499200
Screw, drain
Loading…
↗
28
9798004114
Screw, pan head(ga5)
Loading…
↗
29
65W1438000
FOR STD
Prime starter assembly
Loading…
↗
29
65W1438020
FOR STD
Prime starter assembly
Loading…
↗
30
65W1434600
Plate
Loading…
↗
31
65W1492310
*ECM–”F25A ONLY”
Screw, pilot
Loading…
↗
32
67C1439700
*ECM–”F25A ONLY”
O-ring
Loading…
↗
33
67C1455500
*ECM–”F25A ONLY”
Spring
Loading…
↗
