F40CET (2002)
CARBURETOR

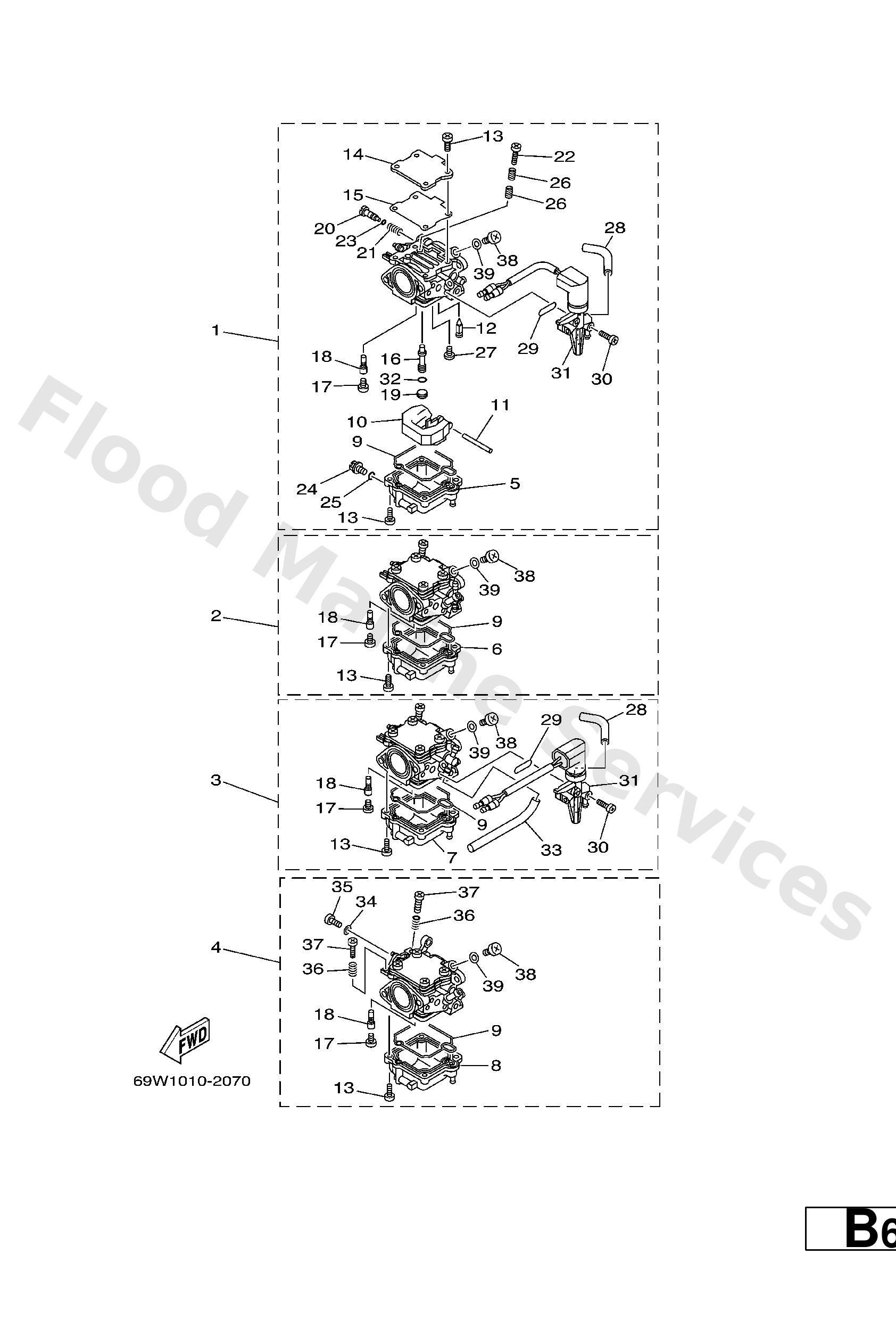

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
69W−14901−00
Carburetor assembly 1
Loading…
↗
2
69W−14902−00
Carburetor assembly 2
Loading…
↗
3
69W−14903−00
Carburetor assembly 3
Loading…
↗
4
69W−14904−00
Carburetor assembly 4
Loading…
↗
4
60K−14904−00
Carburetor assembly 4
Loading…
↗
5
69W−14381−00
#1
Body, Float Chamber
Loading…
↗
6
69W−14381−10
#2
Body, Float Chamber
Loading…
↗
7
69W−14381−20
#3
Body, float chamber
Loading…
↗
8
69W−14381−30
#4
Body, float chamber
Loading…
↗
9
69W−14384−00
Gasket, float chamber
Loading…
↗
10
6L2−14385−00
Float
Loading…
↗
11
6E5−14386−01
Pin, float
Loading…
↗
12
62Y−14392−00
Valve, needle
Loading…
↗
13
62Y−14321−00
Screw, throttle
Loading…
↗
14
62Y−14157−30
Cover, mixing
Loading…
↗
15
69W−14399−00
Gasket
Loading…
↗
16
69W−14341−00
Nozzle, Main
Loading…
↗
17
69W−14343−62
Jet, main (#124)
Loading…
↗
18
64J−14342−20
Jet, pilot (#39)
Loading…
↗
19
66M−14355−00
Plug
Loading…
↗
20
69W−14323−00
Screw, air adjusting
Loading…
↗
21
62Y−14334−00
Spring, air adjusting
Loading…
↗
22
62Y−14321−10
Screw, throttle
Loading…
↗
23
2T4−14397−00
O-ring
Loading…
↗
24
62Y−14383−30
Screw, drain
Loading…
↗
25
652−14397−00
Ring, o
Loading…
↗
26
62Y−14212−00
Spring, pilot adjusting
Loading…
↗
27
98980−04006
Screw, bind(6l2)
Loading…
↗
28
69W−24311−00
#1,3
Pipe, fuel 1
Loading…
↗
29
62Y−14398−30
#1,3
Gasket
Loading…
↗
30
62Y−14567−30
#1
Screw
Loading…
↗
30
62Y−14567−40
#3
Screw
Loading…
↗
31
69W−14380−00
#1
Prime starter assembly
Loading…
↗
31
69W−14380−10
#3
Prime starter assembly
Loading…
↗
32
62Y−14227−00
O-ring
Loading…
↗
33
62Y−24313−90
#3
Pipe 3
Loading…
↗
34
62Y−14597−00
#4
Washer
Loading…
↗
35
664−14327−01
#4
Screw
Loading…
↗
36
69W−14212−00
#4
Spring, pilot adjusting
Loading…
↗
37
69W−14321−00
#4
Screw, throttle
Loading…
↗
38
69W−14115−00
Plug, screw
Loading…
↗
39
90430−08209
Gasket(3gh)
Loading…
↗
