F40CET (2004)
CARBURETOR

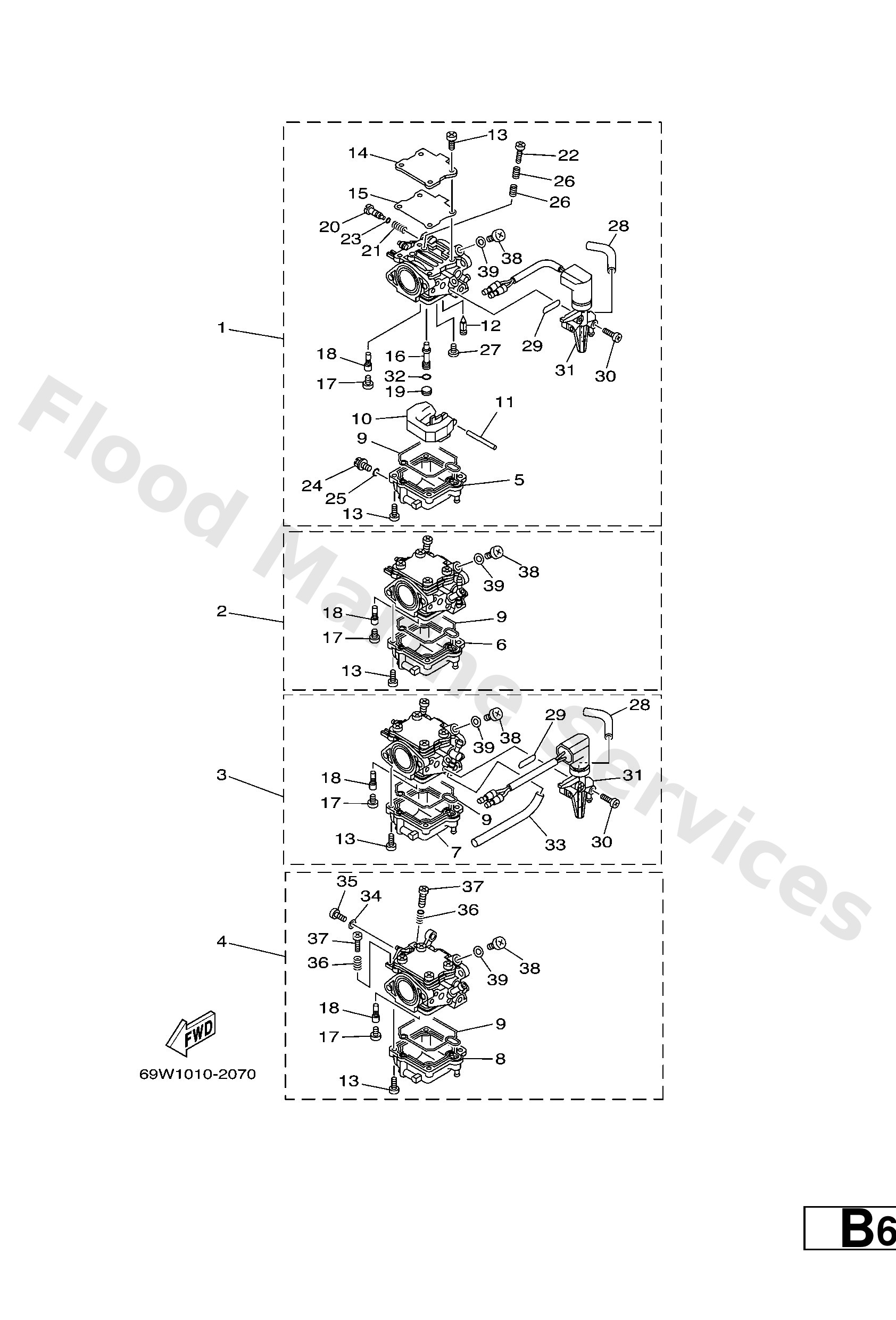

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
69W1490101
Carburetor assembly 1
Loading…
↗
2
69W1490201
Carburetor assembly 2
Loading…
↗
3
69W1490301
Carburetor assembly 3
Loading…
↗
4
69W1490401
Carburetor assembly 4
Loading…
↗
4
60K1490401
Carburetor assembly 4
Loading…
↗
5
69W1438100
#1
Body, Float Chamber
Loading…
↗
6
69W1438110
#2
Body, Float Chamber
Loading…
↗
7
69W1438120
#3
Body, float chamber
Loading…
↗
8
69W1438130
#4
Body, float chamber
Loading…
↗
9
69W1438400
Gasket, float chamber
Loading…
↗
10
6L21438500
Float
Loading…
↗
11
6E51438601
Pin, float
Loading…
↗
12
62Y1439200
Valve, needle
Loading…
↗
13
62Y1432100
Screw, throttle
Loading…
↗
14
62Y1415730
Cover, mixing
Loading…
↗
15
69W1439900
Gasket
Loading…
↗
16
69W1434100
Nozzle, Main
Loading…
↗
17
69W1434362
Jet, main (#124)
Loading…
↗
18
64J1434220
Jet, pilot (#39)
Loading…
↗
19
66M1435500
Plug
Loading…
↗
20
69W1432300
Screw, air adjusting
Loading…
↗
21
62Y1433400
Spring, air adjusting
Loading…
↗
22
62Y1432110
Screw, throttle
Loading…
↗
23
2T41439700
O-ring
Loading…
↗
24
62Y1438330
Screw, drain
Loading…
↗
25
6521439700
Ring, o
Loading…
↗
26
62Y1421200
Spring, pilot adjusting
Loading…
↗
27
9898004006
Screw, bind(6l2)
Loading…
↗
28
69W2431100
#1,3
Pipe, fuel 1
Loading…
↗
29
62Y1439830
#1,3
Gasket
Loading…
↗
30
62Y1456730
#1
Screw
Loading…
↗
30
62Y1456740
#3
Screw
Loading…
↗
31
69W1438001
#1
Prime starter assembly
Loading…
↗
31
69W1438011
#3
Prime starter assembly
Loading…
↗
32
62Y1422700
O-ring
Loading…
↗
33
62Y2431390
#3
Pipe 3
Loading…
↗
34
62Y1459700
#4
Washer
Loading…
↗
35
6641432701
#4
Screw
Loading…
↗
36
69W1421200
#4
Spring, pilot adjusting
Loading…
↗
37
69W1432100
#4
Screw, throttle
Loading…
↗
38
69W1411500
Plug, screw
Loading…
↗
39
9043008209
Gasket(3gh)
Loading…
↗
