F4AMH (2003)
CARBURETOR

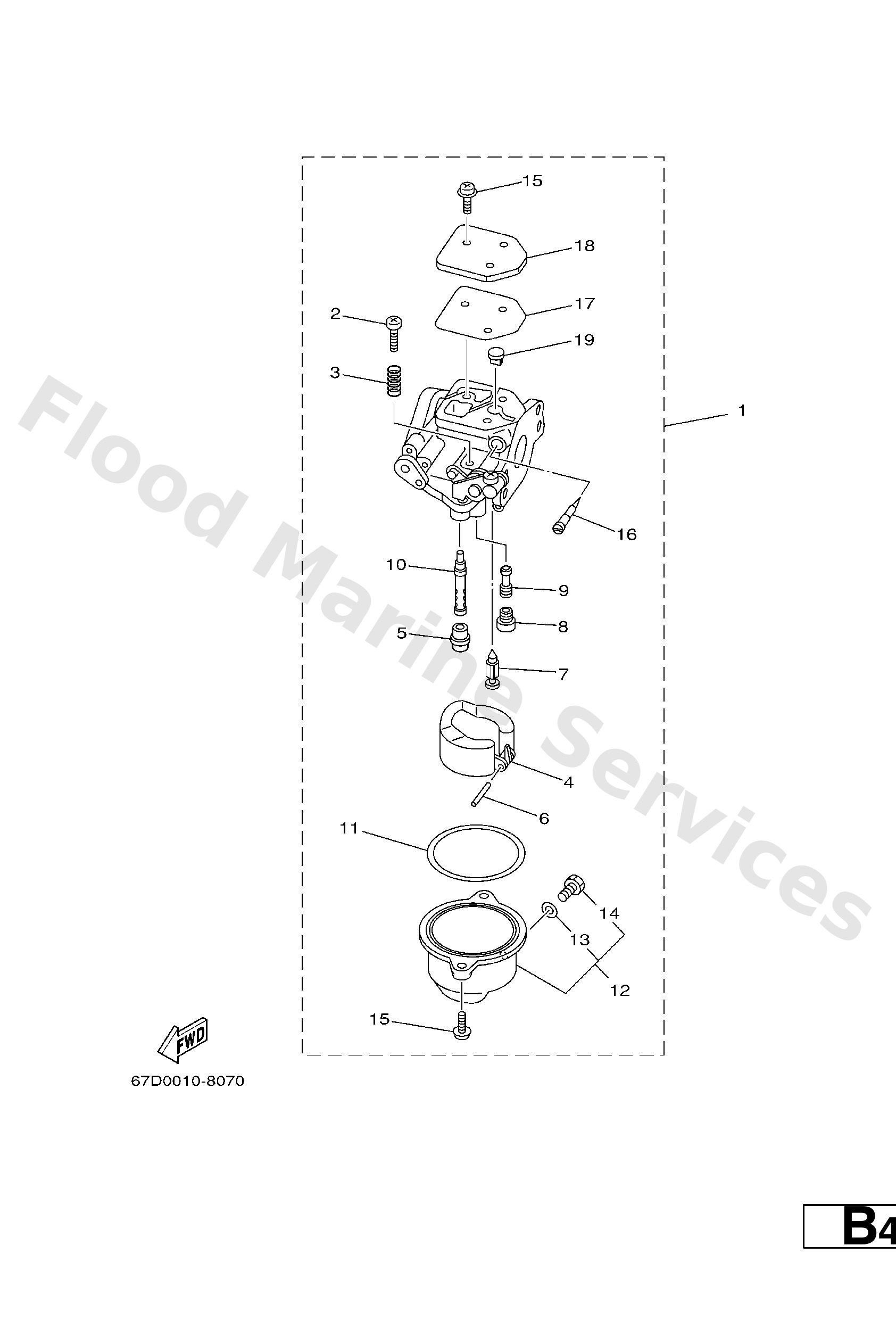

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
67D−14301−20
FOR SAV
Carburetor assembly 1
Loading…
↗
1
67D−14301−01
FOR STD
Carburetor assembly 1
Loading…
↗
2
6E5−14321−00
Screw, throttle
Loading…
↗
3
6J8−14334−00
Spring, throttle
Loading…
↗
4
68T−14385−00
Float
Loading…
↗
5
67D−14966−00
Rubber cap
Loading…
↗
6
67D−14386−00
Pin, float
Loading…
↗
7
67D−14546−00
Valve, needle
Loading…
↗
8
67D−1492E−34
Jet, main (#68)
Loading…
↗
9
67D−1492F−18
Jet, air slow (#36)
Loading…
↗
10
67D−1492A−00
Nozzle, main
Loading…
↗
11
67D−14984−00
Gasket, float chamber
Loading…
↗
12
67D−14981−00
Body, float chamber
Loading…
↗
13
6J8−14959−00
Gasket, drin screw
Loading…
↗
14
66T−14991−00
Plug, drain
Loading…
↗
15
97980−04112
Screw, pan head (686)
Loading…
↗
16
67D−14323−00
FOR 67D−14301−01
Screw, air adjusting
Loading…
↗
16
68T−14323−20
FOR 67D−14301−20
Screw, Air Adjusting
Loading…
↗
17
67D−14536−00
Gasket
Loading…
↗
18
67D−14527−00
Plate
Loading…
↗
19
67D−14126−00
Plug
Loading…
↗
