F4AMH (2008)
CARBURETOR

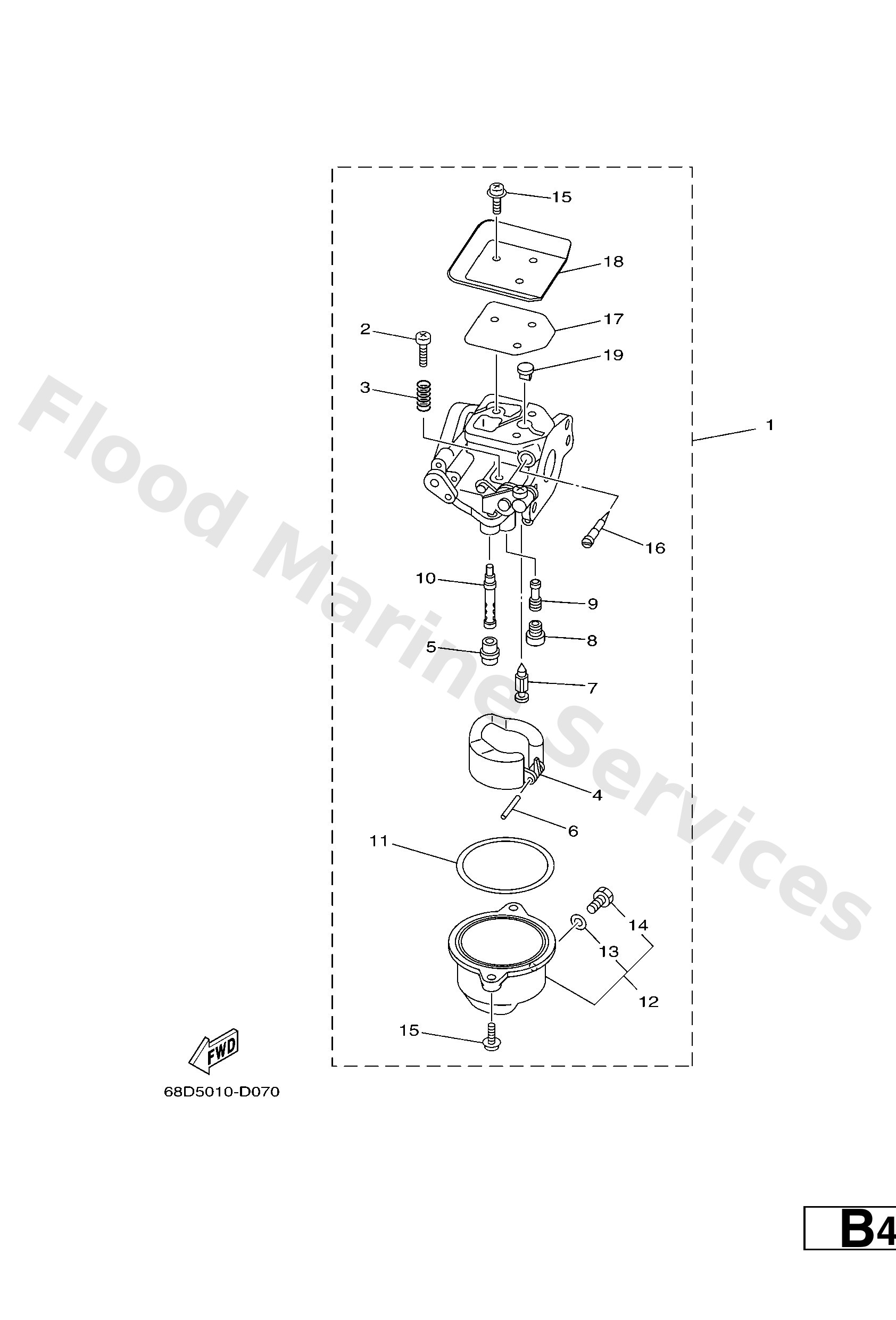

Diagram: CARBURETOR
Parts List
Reference
Description
Price
1
67D1430122
Carburetor assembly 1
Loading…
↗
2
6E51432100
Screw, throttle
Loading…
↗
3
6J81433400
Spring, throttle
Loading…
↗
4
68T1438500
Float
Loading…
↗
5
67D1496600
Rubber cap
Loading…
↗
6
67D1438600
Pin, float
Loading…
↗
7
67D1454600
Valve, needle
Loading…
↗
8
67D1492E34
Jet, main (#68)
Loading…
↗
9
67D1492F18
Jet, air slow (#36)
Loading…
↗
10
67D1492A00
Nozzle, main
Loading…
↗
11
67D1498400
Gasket, float chamber
Loading…
↗
12
67D1498100
Body, float chamber
Loading…
↗
13
6J81495900
Gasket, drin screw
Loading…
↗
14
66T1499100
Plug, drain
Loading…
↗
15
9798004112
Screw, pan head (686)
Loading…
↗
16
68T1432320
Screw, Air Adjusting
Loading…
↗
17
67D1453600
Gasket
Loading…
↗
18
67D1452701
Plate
Loading…
↗
19
67D1412600
Plug
Loading…
↗
